Introduction

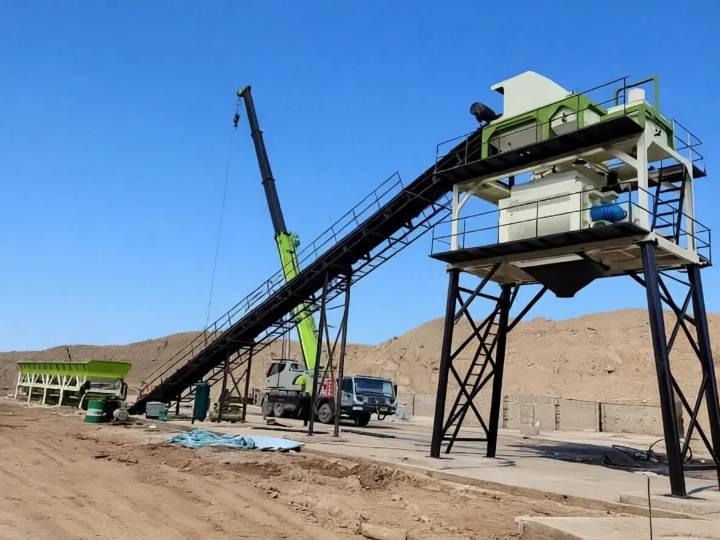

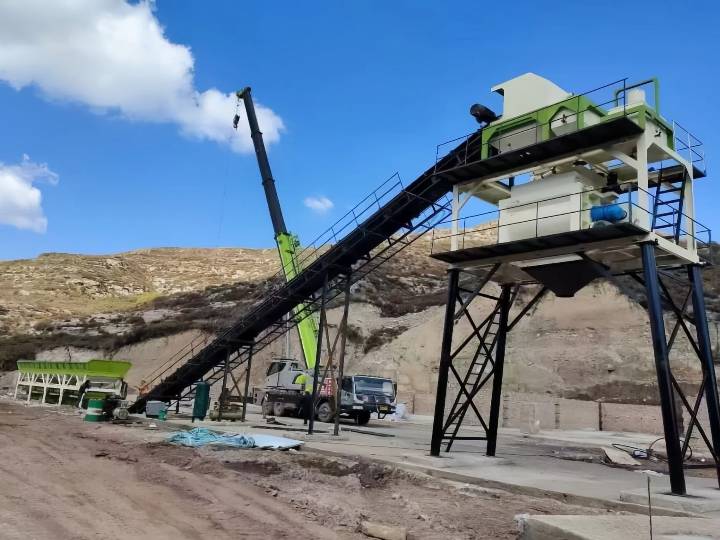

The HZS60 concrete batching plant is a medium-sized, stationary concrete mixing solution with a theoretical productivity of 60m³/h. As one of the most popular models in the global construction market, it strikes a perfect balance between investment cost and high-volume output. Whether you are managing a bridge project, a precast concrete factory, or a commercial concrete business, the HZS60 provides the reliability you need.
Key Features of HZS60 Concrete Batching Plant
- High Efficiency Production
Our HZS60 concrete batching plant delivers high-speed mixing and superior productivity. It ensures your project gets uniform, high-quality concrete every time, keeping your construction schedule on track. The plant’s automated control system ensures precise batching for every project. - Reliable and Durable
Built with premium steel and high-quality components, the HZS60 concrete batching plant guarantees long service life and minimal maintenance requirements. - User-Friendly Operation
The fully automatic control system is easy to operate, even for beginners. Operators can control the plant through a touch-screen interface, reducing human error and improving safety. - Flexible Layout
Our engineering team customizes the HZS60 to fit your specific site layout and operational needs. It supports mobile and stationary configurations, making it ideal for both temporary and permanent construction sites.
Specification
We build the HZS60 with premium components to guarantee high-quality mixing and long-term durability for your projects.

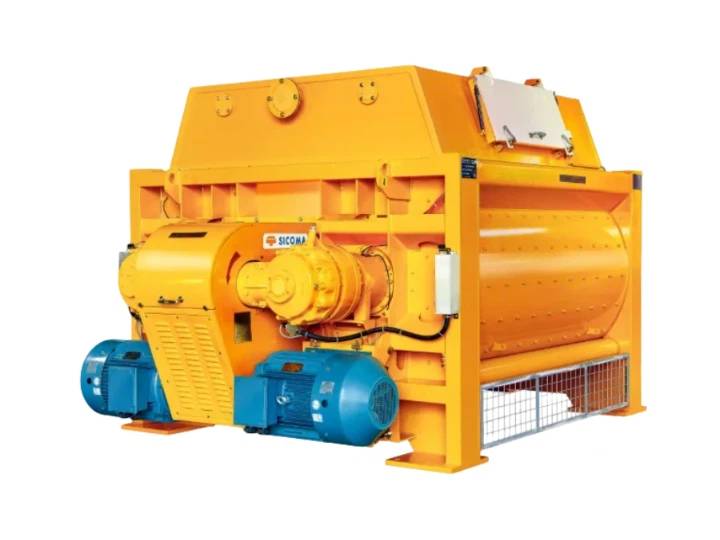

- Main Mixer: SICOMA JS1000 Twin-shaft Compulsory Mixer (1.0m³ per batch).
- Feeding System: High-efficiency Belt Conveyor (ensures continuous and stable aggregate supply).
- Aggregate Batcher: PLD1600 with 3 or 4 storage bins for precise material ratio.
- Weighing Accuracy: Water and additives, less 1%; Cement and Aggregates, less 2%.
- Discharge Height: Standard 3.8 meters (customizable up to 4.1 meters).
| Feature | Specification |
|---|---|
| Rated Capacity | 60 m³/h |
| Mixer Type | JS1000 Twin‑Shaft Mixer |
| Mixing Cycle | ~60 s |
| Max Aggregate Size | Up to 80 mm |
| Power Consumption | Approx. 105 kW |
| Discharge Height | ~3.8 – 4.2 m |
| Control System | Fully automated (PC + PLC) |
| Batching System | PLD1600 Aggregate Batcher |
| Aggregate Conveying | Belt Conveyor |
| Cement Silo | Optional (50–200 t) |
| Weighing Accuracy | Cement: ±1% / Aggregate: ±2% |
Specifications may vary according to custom build and selected configuration.
Why Choose HZS60 Over Other Models?
1. Belt Conveyor vs. Skip Hoist
HZS60
HZS50
Unlike the HZS50, which often uses a skip hoist (bucket) system, the HZS60 utilizes a belt conveyor. This allows for a shorter mixing cycle and a higher continuous output volume. If your project requires high-intensity pouring, the HZS60’s belt conveyor system is the superior choice.
2. Precise Control System
Equipped with a fully automatic PLC control system and a dual-computer backup, the HZS60 ensures that production never stops. You can monitor every batch of concrete in real-time, ensuring consistency for high-strength requirements.
3. Modular Design for Rapid Setup
Time is money in construction. Our HZS60 features a modular structure that allows for fast installation (typically within 7-10 days) and easier relocation if your project site moves.
Applications of the 60m³/h Concrete Plant
The HZS60 is widely used in:
Commercial Concrete: Supplying local urban construction needs.
Infrastructure Projects: Small to medium-sized bridges, highways, and tunnels.
Precast Factories: Manufacturing concrete blocks, pipes, and panels.
Maintenance and Safety Tips
- Regularly check the mixer blades and bearings.
- Ensure all safety devices are operational before starting.
- Clean the plant daily to prevent material buildup.
- Schedule periodic inspections to prolong service life.
FAQ: Everything You Need to Know About HZS60
Q: What is the actual production capacity of the HZS60 concrete batching plant?
- A: The theoretical capacity is 60m³/h. However, depending on the aggregate type and mixing time, the actual output usually ranges from 45-55m³/h, making it ideal for medium-sized infrastructure projects.
Q: What is the main difference between HZS60 and HZS50?
- A: The primary difference lies in the feeding method. HZS60 uses a belt conveyor for aggregate feeding, which offers higher efficiency and stability for continuous production, while HZS50 typically uses a skip hoist (bucket) system.
Q: Which concrete mixer is used in the HZS60 plant?
- A: Our HZS60 is equipped with the JS1000 twin-shaft compulsory mixer, known for its strong mixing power, high uniformity, and long service life of wear-resistant parts.
Q: How many containers are required for shipping a complete HZS60 plant? Is the HZS60 easy to transport for export?
- A: Generally, a standard HZS60 concrete plant requires three 40-foot high cube (40’HQ) containers for international shipping, depending on the number of cement silos included, significantly reducing international shipping costs.
Q: How much space is required for an HZS60 installation?
- A: A standard HZS60 layout requires approximately 25m x 15m, but the configuration of silos and conveyors can be customized to fit your specific site constraints.
Q: What is the power consumption of a complete HZS60 plant?
- A: The total power is approximately 110kW, including the mixer, conveyors, and screw feeders.
Q: How many cement silos should I use with the HZS60?
- A: We typically recommend at least two 100-ton bolted cement silos to ensure a continuous supply of cement for 60m³/h production.
