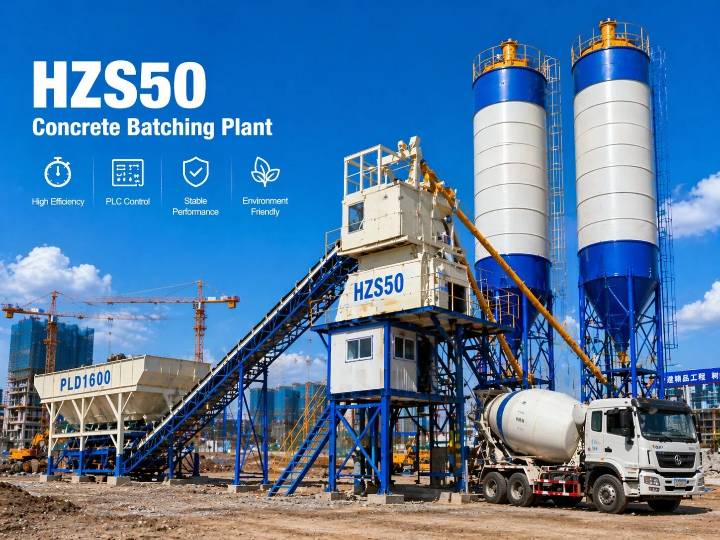

Shanghe HZS50 Batching Plant
50 m³/h theoretical output. Engineered for infrastructure projects demanding precision, durability, and continuous production.
50 m³/hr Output | JS1000 Twin-Shaft Mixer | 4 Aggregate Bins | ±1% Weighing Accuracy |
Technical Specifications
|
50 m³/h
Theoretical Output
|
JS1000
Mixer Model
|
1000 L
Discharge Capacity
|
±1%
Weighing Accuracy
|
|
18.5 kW
Mixer Motor Power
|
4 Bins
Aggregate Storage
|
100T Each
Cement Silo Capacity
|
PLC
Control System
|
Full Specifications
| Parameter | Value |
|---|---|
| Theoretical Output Capacity | 50 m³/h |
| Mixer Type | JS1000 Twin-shaft compulsory |
| Discharge Capacity | 1000 L per batch |
| Aggregate Bin Capacity | 4 × 9.5 m³ (standard) |
| Cement Silos | 2 × 100 T (optional 50–200 T) |
| Weighing Accuracy | Aggregate ±2%, Cement ±1%, Water ±1% |
| Mixer Motor Power | 2 × 18.5 kW |
| Total Installed Power | ~90 kW |
| Control System | PLC + IPC, fully automated |
| Belt Conveyor Width | 650 mm |
| Max Aggregate Size | 80 mm (gravel) / 60 mm (pebble) |
| Optional Features | Admixture dosing, ice/chilled water system, dust collector, heating system |
Why Choose HZS50
01 High Output Efficiency
50 m³/h theoretical capacity with JS1000 twin-shaft mixer ensuring homogeneous concrete in every batch. Optimized mixing time as low as 60 seconds per cycle.
- Capacity: 50 m³/h
- Suitable for continuous daily production, pump concrete and commercial mixes
- Faster supply than HZS35
- Equipped with JS1000 twin-shaft mixer
- Uniform mixing quality
02 Precision Weighing System
Fully electronic batching with ±1% accuracy for aggregates, cement, water, and admixtures. Independent load cells for each material stream.
03 PLC Automated Control
Advanced programmable logic controller with real-time data monitoring, recipe storage for up to 999 mix designs, and remote diagnostics capability.
- PLC automatic batching system
- Easy operation with touchscreen optional
- Real-time monitoring and accurate batching
04 Modular & Fast Assembly
Compact modular design allows rapid site installation — typically 2–5 days. Easily relocated between project sites with minimal disassembly required.
05 Dust-Proof Enclosure
Fully enclosed mixing station with integrated dust collection system. Meets environmental standards for urban and suburban construction sites.
06 Low Maintenance Design
Wear-resistant liner plates, self-lubricating bearings, and easily accessible service points reduce downtime. Designed for 100,000+ hours of operation.
07 Strong ROI for Growing Business
- Medium investment level
- Higher production than entry models
- Suitable for local ready-mix business expansion
Applications
|
🏗️
Building Construction
|
🛣️
Road & Highway
|
🌉
Bridge Projects
|
🚇
Tunnels & Metro
|
|
✈️
Airport Runways
|
🏭
Precast Plants
|
💧
Water Infrastructure
|
⚡
Power Stations
|
HZS50 vs Other Models
HZS50 is a smart upgrade for expanding businesses
| Model | Capacity | Best For |
|---|---|---|
| HZS35 | 35 m³/h | Small projects |
| HZS50 | 50 m³/h | Growing commercial demand |

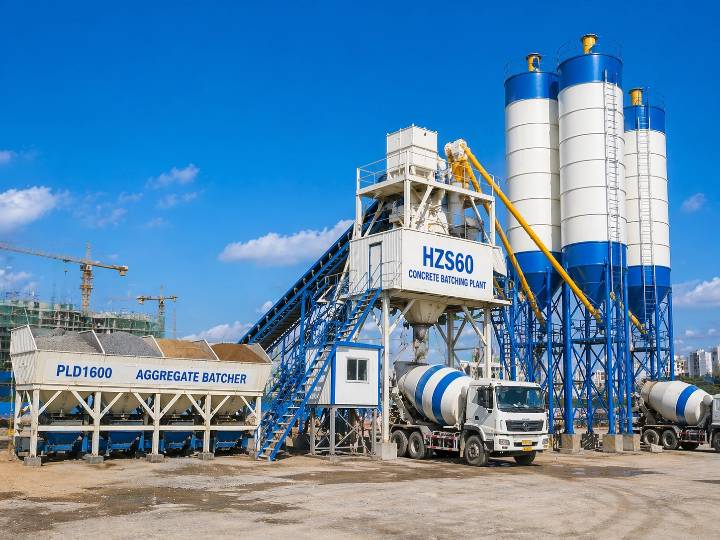

| HZS60 | 60 m³/h | Higher continuous output |
Price Reference
Typical price range: $28,000 – $68,000
Depends on:
- Silo size
- Automation level
- Feeding system
- Shipping destination
Full Support Service
We provide:
- Free project consultation
- Plant layout design
- Installation guidance
- Operator training
- Spare parts supply
- Online technical support
📞 Get Your Factory Price Today
Tell us your requirements:
- Project location
- Daily output demand
- Budget
Our engineers will recommend the best configuration for you
