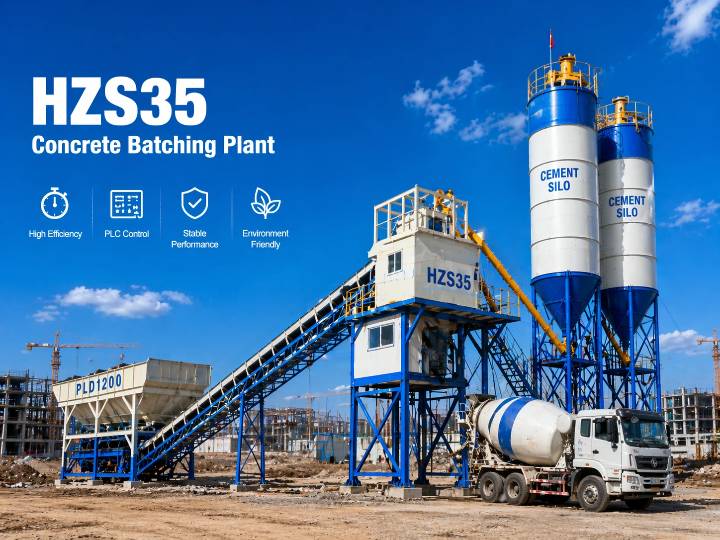

Shanghe HZS35 Batching Plant
The HZS35 concrete batching plant is built for small to medium construction projects, offering stable production, easy installation, and low operating cost.
|
35
m³/h
Output
|
500
L
Mixer Capacity
|
18.5
kW
Main Motor
|
±1%
Accuracy
Weighing System
|
Technical Specifications
Technical Configuration
- Mixer: JS750 Twin-Shaft Mixer
- Output: 35 m³/h
- Aggregate Feeding: Skip hoist
- Cement Silo: 50T / 100T optional
- Weighing System: Electronic load-cell
- Control Mode: Manual / Auto optional
| Theoretical Output | 35 m³/h |
| Mixer Type | JS750 Twin-Shaft |
| Mixer Capacity (input/output) | 1000 L / 650 L |
| Aggregate Bin Capacity | 4 × 8 m³ |
| Max Aggregate Size | 80 mm (river gravel) |
| Cement Silo | 50–100 t (optional) |
| Weighing Range – Aggregate | ≤ 2000 kg |
| Weighing Range – Cement | ≤ 700 kg |
| Weighing Range – Water | ≤ 300 kg |
| Weighing Accuracy | ±1% |
| Total Power | ~58.4 kW |
| Batching Cycle | ~72 s |
Custom configuration available
Applications
Engineered for mid-scale, continuous concrete supply across a wide range of construction environments.
🏗️Civil Infrastructure
Bridges, highways, tunnels and dam construction requiring steady, high-quality concrete supply.
🏢Commercial Buildings
High-rise foundations, precast elements and structural pours for commercial developments.
🏭Industrial Facilities
Factory floors, warehouse slabs and industrial plant construction with demanding mix specifications.
🛣️Road & Pavement
Rigid pavement, airport runways and port infrastructure where consistent workability is critical.
⚖️ HZS35 vs Other Models
HZS35 gives the best balance of price and productivity
| Model | Capacity | Best For |
|---|---|---|
| HZS25 | 25 m³/h | Startup small jobs |
| HZS35 | 35 m³/h | Growing local business |
| HZS60 | 60 m³/h | Commercial concrete supply |
Why Choose HZS35
- PLC Automatic Control
Fully automated batching process with PLC + touchscreen HMI. Store up to 999 mix designs, real-time monitoring and fault alerts.
- Full automatic PLC control optional
- Accurate batching and easy operation
- Lower manpower requirement
2. Twin-Shaft Mixer
JS750 twin-shaft compulsory mixer ensures homogeneous concrete output. Short mixing cycle (≤72s) with low power consumption.
- Equipped with JS750 twin-shaft mixer
- Uniform mixing quality
- Suitable for pump concrete and standard mixes
3. Precision Weighing
Electronic load cell weighing for all materials — aggregate, cement, water, admixtures — with ±1% accuracy for consistent mix quality.
4. Compact Footprint
Modular design enables rapid installation and relocation. Ideal for mid-scale projects where space and setup time are critical constraints.
- Space-saving design
- Quick setup and relocation
- Suitable for urban and remote sites
5. Dust & Noise Control
Enclosed aggregate storage and dust collection system minimize environmental impact. Compliant with modern construction site regulations.
6. Long Service Life
High-wear mixer blades and liners in replaceable sections. Lubrication system extends bearing life. Designed for 40+ years of reliable operation.
7. Higher Capacity, Better Efficiency
- Capacity: 35 m³/h
- More output than HZS25
- Suitable for daily continuous production
Price Reference
Typical price range: $22,000 – $55,000
Depends on:
- Automation level
- Silo size
- Electrical standard
- Shipping destination
Full Support Service
We provide:
- Free project consultation
- Plant layout design
- Installation guidance
- Operator training
- Spare parts supply
- Online technical support
FAQ
Q: Is HZS35 better than HZS25?
A: Yes, HZS35 offers higher output and better efficiency for growing businesses.
Q: How many workers are needed?
A: Usually 2–4 people depending on automation level.
Q: Is it easy to install?
A: Yes, installation normally takes 5–10 days.
📞 Get Your Factory Price Today
Tell us your requirements:
- Project location
- Daily output demand
- Budget
Our engineers will recommend the best configuration for you
