Introduction
Powerful Loading & Excavation Solution for Construction Projects

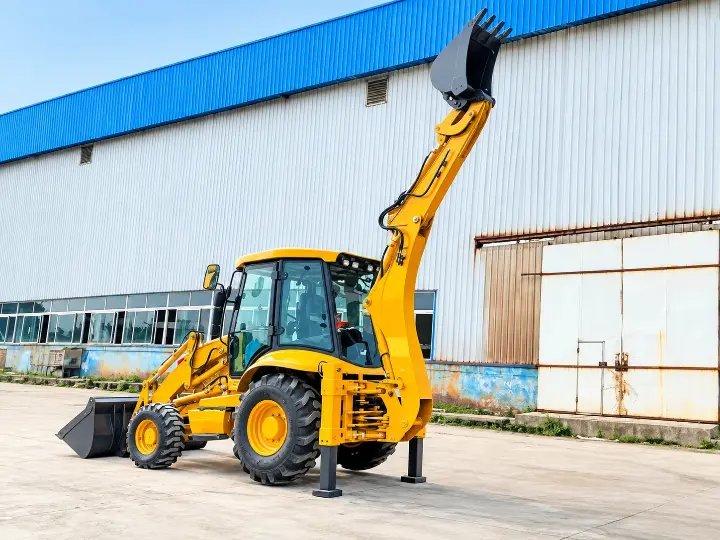

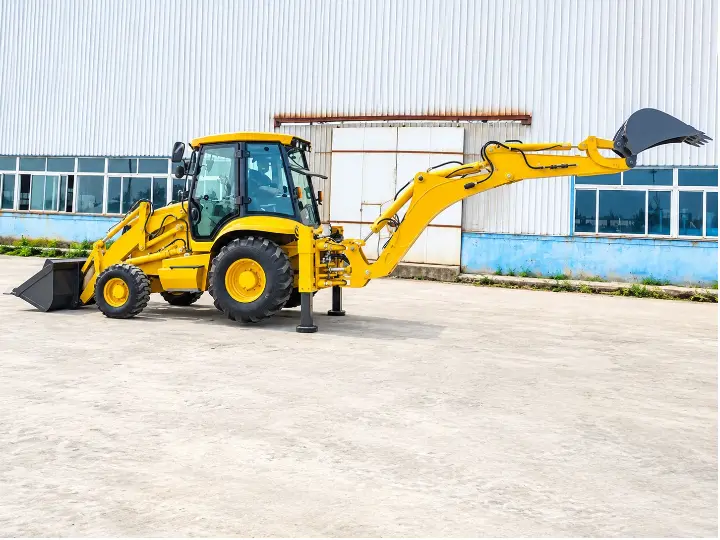

The SH388T Backhoe Loader is a versatile construction machine that combines a front loader and rear excavator in one unit. Designed for excavation, loading, trenching, material handling and site preparation, the 388T helps contractors complete multiple tasks with one machine.
With a powerful engine, reliable drivetrain and flexible attachment options, the 388T Backhoe Loader is suitable for road construction, building projects, municipal engineering, utility installation, agriculture and general earthmoving applications.
Why Choose Us
1. Two Machines in One
The 388T combines a front loader and rear excavator in one machine. It can load materials, excavate soil, dig trenches and perform backfilling without requiring separate machines for every task.
This multifunctional design makes the 388T a practical choice for contractors who need flexibility on different job sites.
2. Powerful 95 HP Engine
The 388T is equipped with a 70 kW / 95 HP engine, providing the power required for demanding excavation, loading and earthmoving applications.
The powertrain is designed to provide reliable performance during continuous construction operations.
3. CARRARO Drivetrain
The 388T can be equipped with a CARRARO drivetrain, providing reliable power transmission and smooth machine operation.
The drivetrain is designed for demanding working conditions and frequent movement between different work areas.
4. 4 Forward + 4 Reverse Transmission
The 4F/4R transmission provides flexible speed selection for different working conditions.
Operators can efficiently switch between forward and reverse movement during loading, excavation and site transportation operations.
5. 1.0 m³ Loader Bucket
The front loader is equipped with a 1.0 m³ loader bucket, making the machine suitable for loading soil, sand, gravel and other bulk materials.
It can also be used for site cleaning, stockpile handling and truck loading.
6. Efficient Excavation Performance
The rear backhoe system is designed for trenching, foundation excavation, drainage construction and underground utility projects.
With a 0.3 m³ backhoe bucket, the 388T provides a practical balance between excavation capability and machine maneuverability.
7. Flexible Attachments
Different attachments can be selected according to project requirements.
The 388T can be configured for applications including:
- Excavation
- Trenching
- Material loading
- Backfilling
- Site preparation
- Road maintenance
- Landscaping
- Utility construction
Specifications
| Overall Size Parameters | 388T Backhoe Loader | ||
|---|---|---|---|
| Overall Dimensions | Operating Weight | 8600 kg | |
| Overall Dimensions (L × W × H) | 6050 × 2484 × 3453 mm | ||
| Ground Clearance | 300 mm | ||
| Performance | Loader Bucket Capacity | 1.0 m³ | Backhoe Bucket Capacity: 0.3 m³ |
| Loader Breakout Force | 47 kN | Backhoe Digging Force: 49.8 kN | |
| Loader Rated Load Capacity | 2500 kg | Backhoe Swing Angle: 180° | |
| Bucket Unloading Height | 2807 mm | Backhoe Bucket Unloading Height: 4084 / 4720 mm | |
| Bucket Unloading Distance | 801 mm | Max. Digging Depth: 4303 / 5246 mm | |
| Digging Depth | 30 mm | Max. Traction Force: 76 kN | |
| Engine | Model | 904J-E36TA WP3.6NG101E680 WP3.6NG112E680 | YC4A105Z-T20 YC4A110Z-T23 WP4G95E221 |
| Manufacturer | Perkins – Euro V Weichai – Euro V | Yuchai – China III Weichai – China III | |
| Induction | Turbocharged |
Direct Injection Water Cooled Turbocharged | |
| Displacement | 3.6 L | 3.6 L / 4.8 L / 4.5 L | |
| No. of Cylinders | 4 | 4 | |
| Cylinder Diameter | 98 mm / 100 mm | 108 mm / 105 mm | |
| Stroke | 120 mm / 114 mm | 132 mm / 130 mm | |
| Rated Engine Speed | 2400 rpm / 2200 rpm | 2200 rpm | |
| Rated Power | 74.5 kW / 82 kW 74 kW / 82 kW | 74 kW / 82 kW 70 kW | |
| Maximum Torque | 430 N·m / 450 N·m 450 N·m / 500 N·m | 400 N·m / 425 N·m 380 N·m | |
| Maximum Torque Speed | 1500 rpm 1400–1600 rpm | 1400–1700 rpm 1400–1600 rpm | |
| Steering System | Type | Hydraulic Steering | |
| Steering Gear Model | BZZ-250 | ||
| Pump Displacement | 63 ml/r | ||
| Pump Model | SGP2063 | ||
| Steering Angle | ±41° | ||
| Min. Turning Radius | 6581 mm | ||
| Driving Axle | Model | 26.22–1920 / 28.43M–1654 | |
| Manufacturer | Carraro, Italy | ||
| Rated Front Axle Load | 22.5 t | ||
| Rated Rear Axle Load | 18.75 t | ||
| Transmission | Gearbox | Countershaft Powershift | |
| Model | TLB1–4WD | ||
| Gears | 4 Forward / 4 Reverse | ||
| Hydraulic Torque Converter | Carraro | ||
| Cooling Mode | Oil-Cooling Pressure Circulation | ||
| Tires | Front / Rear Model | 14–17.5 / 19.5L–24 | |
| Front Tire Pressure | 0.4 MPa | ||
| Rear Tire Pressure | 0.35 MPa | ||
| Max. Travel Speed | 39 km/h | ||
| Brake System | Traveling Brake | Wet Internal Self-Regulating, Self-Balancing Type | |
| Parking Brake | Manual Brake | ||
| System Pressure | Loading Hydraulic System | 20 MPa | |
| Excavation Hydraulic System | 20 MPa | ||
| Steering Hydraulic System | 14 MPa | ||
Specifications can be customized according to project requirements. Please contact us for the detailed technical specification sheet.
Applications
- Road Construction
The 388T can be used for road excavation, drainage construction, material loading, road maintenance and site preparation.
2. Building Construction
For construction projects, the machine can perform foundation excavation, material handling, backfilling and general earthmoving.
3. Trenching & Utility Installation
The backhoe system is suitable for digging trenches for water pipes, drainage systems, cables and other underground utilities.
4. Municipal Engineering
The 388T is suitable for municipal construction, landscaping, drainage projects and infrastructure maintenance.
5. Material Handling
The front loader can efficiently handle soil, sand, gravel and other bulk materials at construction sites.als efficiently around construction sites, reducing the need for multiple machines.
388T Backhoe Loader for Sale
Looking for a 388T Backhoe Loader for sale for your construction project?
Shanghe provides backhoe loaders for customers in different markets and can offer machine configurations according to project requirements.
Before purchasing, you can contact our team to confirm:
- Technical support
- 388T Backhoe Loader price
- Latest technical specifications
- Engine options
- Bucket configurations
- Optional attachments
- 4WD configuration
- Shipping options
- Delivery time
- Spare parts
Why Buy a Shanghe Backhoe Loader?
1. Reliable Construction Equipment
Shanghe focuses on construction machinery and provides equipment designed for demanding working environments.
2. Flexible Machine Configuration
Different configurations and attachments can be selected according to your application, working conditions and local requirements.
3. International Project Support
Our construction equipment is available for customers in international markets, with support for machine selection, configuration and export.
4. Spare Parts & Technical Support
We can provide technical assistance and spare parts support to help customers maintain reliable machine operation.
FAQ
1. What is a 388T Backhoe Loader?
The 388T is a multifunctional backhoe loader that combines front loading and rear excavation capabilities in one machine. It can be used for excavation, loading, trenching, backfilling and material handling.
2. What is the loader bucket capacity of the 388T?
The standard configuration has a 1.0 m³ loader bucket.
3. What is the backhoe bucket capacity?
The backhoe bucket capacity is approximately 0.3 m³.
4. Is the 388T available with 4WD?
Yes. The 388T can be configured with a 4WD drive system, depending on the selected machine configuration.
5. How much does a 388T Backhoe Loader cost?
The final price depends on configuration, engine, attachments, destination country, shipping method and order quantity.
6. Can I customize the 388T?
Machine configuration and optional attachments can be discussed according to your project requirements. Contact our sales team for available options.
