Introduction
Compact, Powerful & Versatile Skid Steer Loader for Multiple Applications

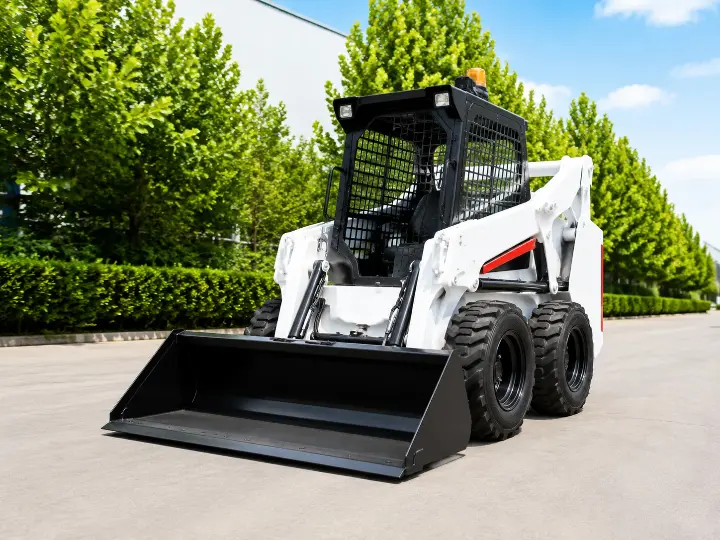

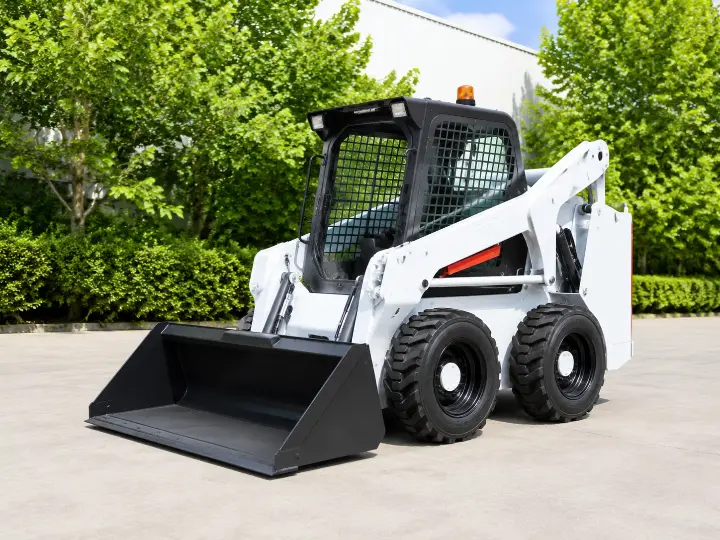

The Model 1405 Skid Steer Loader is a compact and efficient construction machine designed for loading, digging, lifting, material handling, and various job site applications. With a powerful engine, reliable hydraulic system, and excellent maneuverability, it delivers high performance even in limited working spaces.
Ideal for construction projects, landscaping, agriculture, road maintenance, and municipal works, the Model 1405 skid steer loader provides a cost-effective solution for customers who need one machine to handle multiple tasks.
- Imported engine with rear-mounted radiator for better heat dissipation.
- Imported dual pump, dual-speed dual-discharge, vertical lifting, and longer unloading distance make it the preferred model for highways, municipal works, and landscaping.
- Rated load: 1400Kg
Key Features
1. Compact Design & Excellent Maneuverability
The compact structure and small turning radius allow the Model 1405 to work efficiently in narrow areas, making it suitable for urban construction sites, farms, and confined job locations.
2. Powerful Hydraulic Performance
Equipped with a high-performance hydraulic system, the loader provides strong lifting capacity and supports various attachments for different working conditions.
3. Multi-Functional Attachment Compatibility
The quick attachment system allows easy replacement of buckets, forks, augers, breakers, and other tools, expanding the machine’s applications and improving productivity.
4. Reliable Structure & Easy Maintenance
Built with a durable frame and high-quality components, the Model 1405 skid steer loader ensures stable operation, long service life, and convenient maintenance.
5. Comfortable Operation
The ergonomic cabin design provides excellent visibility and easy control, reducing operator fatigue and improving working efficiency.
Advantages
1. Safe & Comfortable Operating Environment
The spacious cab is designed with operator comfort and safety in mind. The 360° wide field of vision provides excellent visibility of the working area and surrounding environment, ensuring safer and more efficient operation.

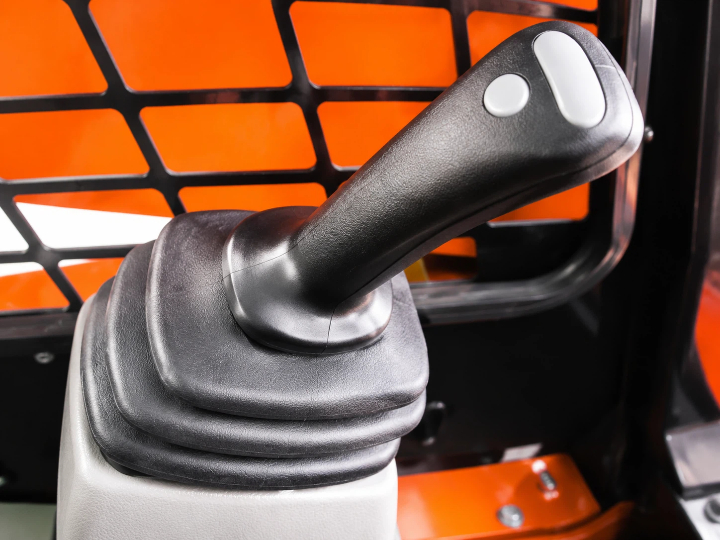

2. Ergonomic Control Design
The operation levers, instrument panel, and buttons are arranged according to ergonomic principles. International standard symbols make all controls easy to understand, allowing operators to work more conveniently and comfortably.
3. All-Weather Working Capability
Equipped with heating and cooling air conditioning, the cab provides a comfortable working environment in different weather conditions and improves operator productivity.
4. Powerful & Reliable Performance

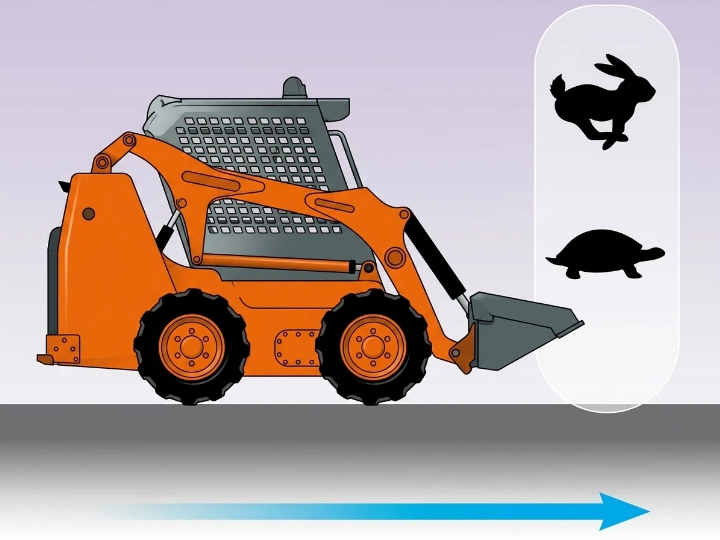

Powered by an imported Perkins engine and equipped with a rear-mounted radiator, the cooling system delivers excellent heat dissipation performance. The imported double pump system and two-speed travel motor provide strong power and stable operation.
5. High Efficiency & Versatile Applications
Featuring vertical lift design and a longer dumping distance, the Model 1405 Skid Steer Loader offers better loading performance and working efficiency. It is an ideal choice for highway construction, municipal projects, landscaping, and various material handling applications.
Applications
- Construction and building projects
- Material loading and transportation
- Landscaping and ground preparation
- Agricultural operations
- Road and municipal maintenance
- Small-scale excavation projects
Technical Parameters
| Item | Specification |
|---|---|
| Model | 1405 |
| Engine Model | China Engine / Tier 3 |
| Rated Power (kW) | 65-74.5 |
| Rotating Speed (rpm) | 2200 |
| Max. Speed (km/h) | 11.2 / 22.4 / 16.5 |
| Tubeless Tire | 12-16.5 |
| Operating Load (kg) | 1400 |
| Max. Loading (kg) | 2800 |
| Lifting Type | Vertical |
| Total Cycling Time (s) | ≤11.2 |
| Bucket Capacity (m³) | 0.55 |
| Pressure of Working System (bar) | 235 |
| Rated Flux (L/min) | 86 |
| High Flow Flux (L/min) | 158 |
| Fuel Tank Capacity (L) | 82 |
| Self-weight With Bucket (kg) | 4080 |
| Overall Operating Height (mm) | 4234 |
| Height to Bucket Hinge Pin (mm) | 3295 |
| Height to Top of Cab (mm) | 2080 |
| Height to Bottom of Level Bucket (mm) | 3100 |
| Overall Length Without Bucket (mm) | 2878 |
| Overall Length With Bucket (mm) | 3666 |
| Dumping Height (mm) | 2540 |
| Dumping Reach (mm) | 850 |
| Rollback of Bucket on Ground (°) | 27 |
| Ground Clearance (mm) | 218 |
| Angle of Departure (°) | 26 |
| Front Turning Radius Without Bucket (mm) | 1540 |
| Front Turning Radius (mm) | 2200 |
| Rear Turning Radius (mm) | 1710 |
| Width (mm) | 1864 |
| Bucket Width (mm) | 1980 |
Configuration
Optional Configuration:
| Item | Configuration |
|---|---|
| Engine |
Quanchai 4J1-115C32 (85kW/2200rpm) Perkins 1104D-E44TA (87kW/2200rpm) |
| Air Filter |
Standard Air Filter Donaldson 3-stage Air Filter |
| Optional Air-conditioner | Cool Air-conditioner, Cool and Heat Air-conditioner, Heater |
| Optional Tire |
Big Pattern Tubeless Tire 12-16.5 Wear-resistant Small Pattern Pneumatic Tire 12-16.5 for Pasture Solid Tire 300-15 Steel Track |
| Optional Hydraulic System |
Inline Manual Servo Pump Inline Hydraulic Control Pump Inline Hydraulic Motor France Poclain Motor Danfoss Motor |
| Optional Fuel System | Antifreezing Fuel System for Cold Region |
Why Choose Us?
✔ Compact size for flexible operation
✔ Strong hydraulic power for heavy-duty work
✔ Multiple attachments for different tasks
✔ Low operating and maintenance costs
✔ Suitable for various industries and job sites
