Introduction
Compact Power, Superior Stability and Versatile Performance

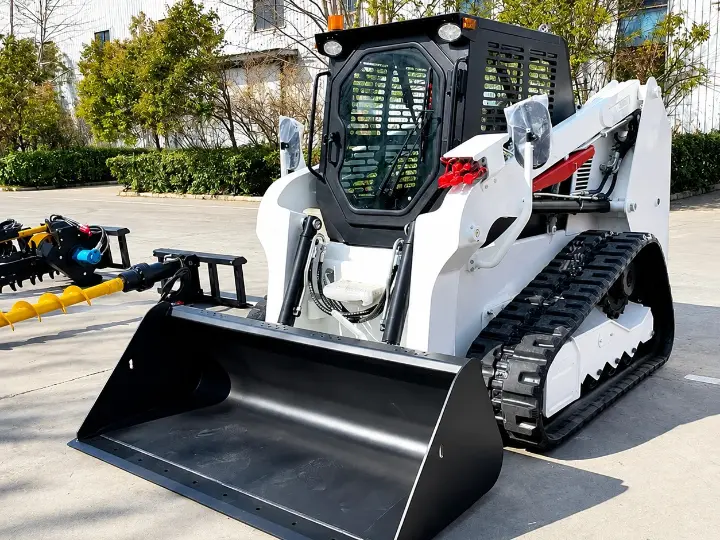

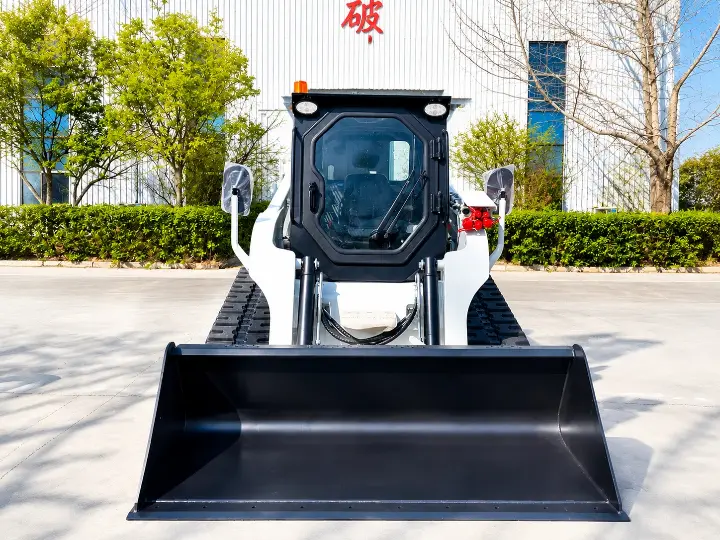

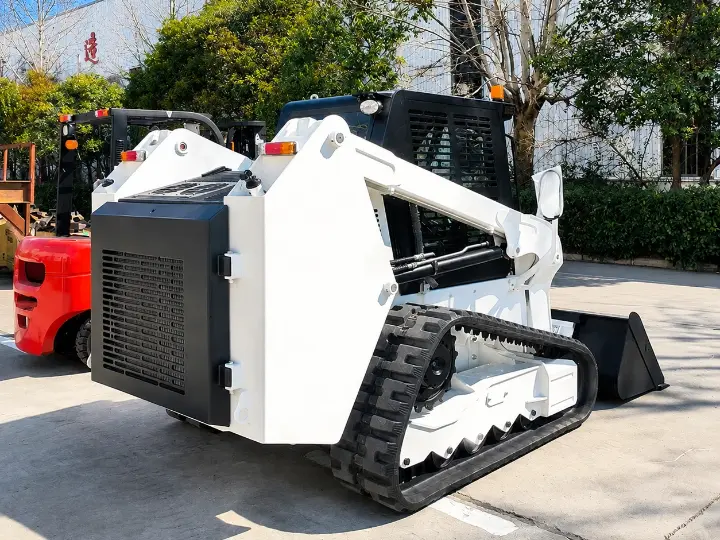

The Model 1200T Crawler Skid Steer Loader is designed to deliver powerful performance, excellent stability, and outstanding versatility in demanding working conditions. With a rated load capacity of 1,200 kg, it is an ideal choice for construction, landscaping, agriculture, and material handling applications.

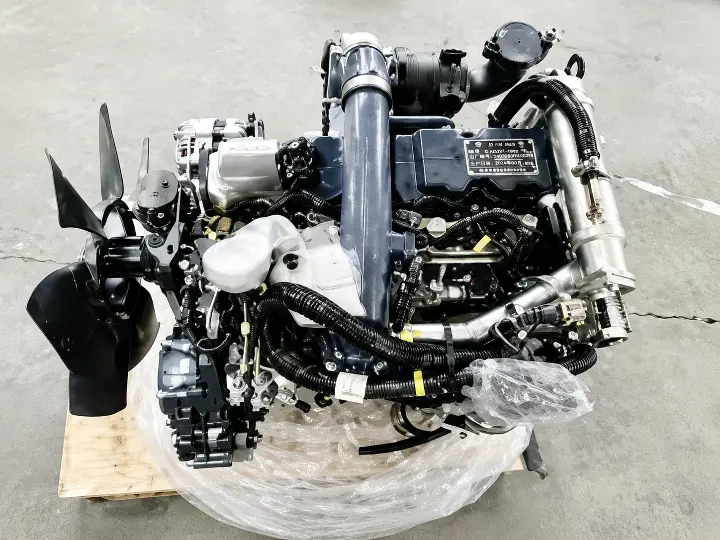

Equipped with a reliable China Quanchai or Xinchai engine as standard, the machine can also be configured with premium engine options including YANMAR, ISUZU, KOHLER, and KUBOTA to meet different market requirements.

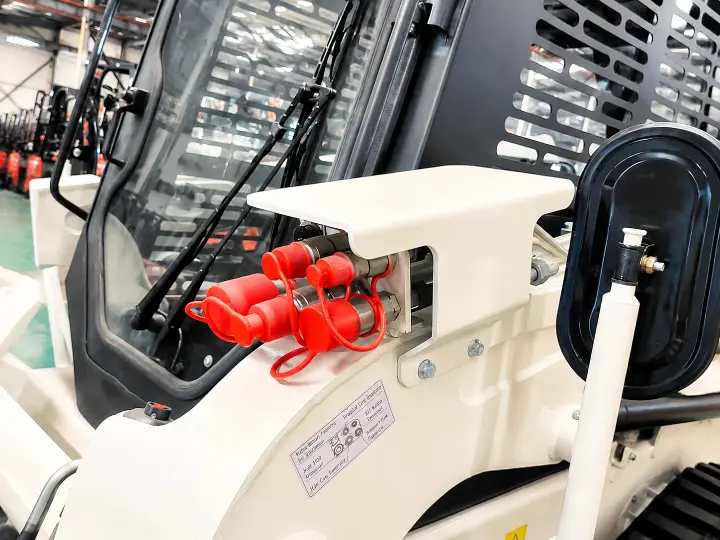

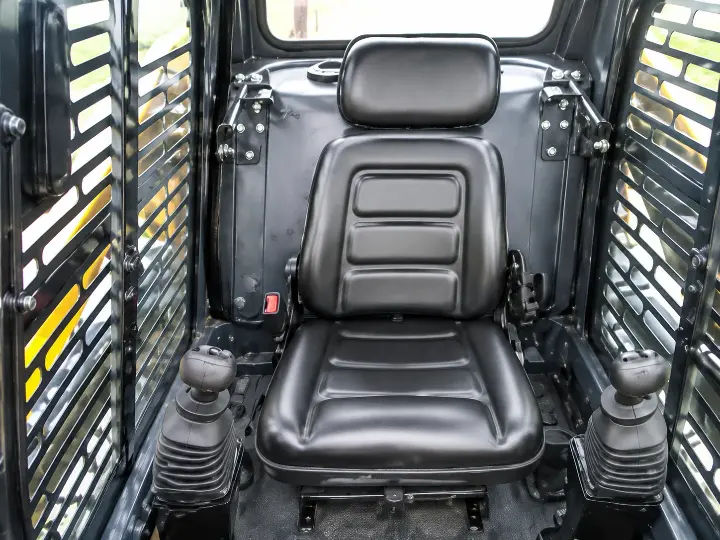

The loader features a high-quality suspension seat that provides superior comfort during long hours of operation. The high-flow hydraulic system with flow merging technology ensures strong power output and supports various attachments for different job applications.

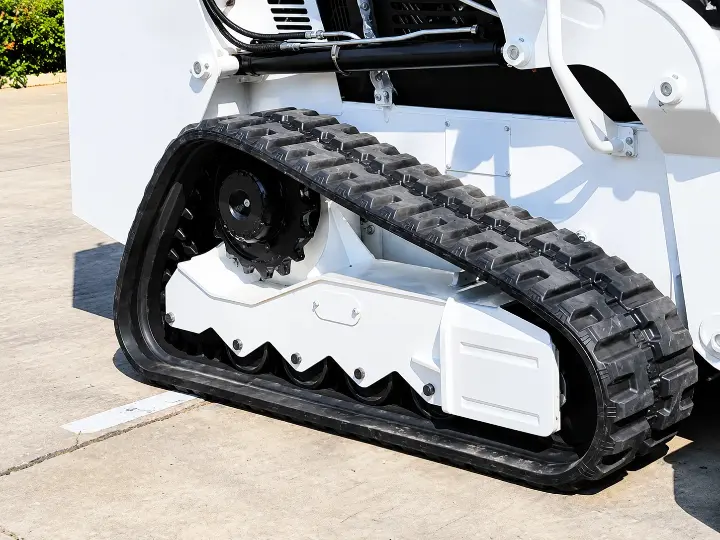

An advanced control panel improves operating efficiency with easy monitoring and convenient machine management. The wide rubber track design reduces ground pressure, enhances stability, and allows smooth operation on soft, muddy, sandy, and uneven terrain.
Key Features
- Excellent Stability on Difficult Terrain
The crawler undercarriage provides a larger contact area with the ground compared with traditional wheeled skid steer loaders.
Benefits:
- Lower ground pressure
- Better stability on soft and uneven surfaces
- Reduced soil damage
- Strong climbing ability
- Reliable operation in harsh environments
2. Powerful Hydraulic Performance
The Model 1200T is equipped with a high-performance hydraulic system to deliver strong digging, lifting, and attachment operation capabilities.
Advantages:
- High hydraulic flow for efficient attachment operation
- Strong breakout force
- Smooth and precise control
- Improved working efficiency
3. Compact Design with High Flexibility
Thanks to its compact dimensions, the crawler skid steer loader can easily access narrow working areas where larger equipment cannot operate.
Suitable for:
- Residential construction
- Road maintenance
- Landscaping projects
- Farm work
- Indoor demolition
- Underground construction
4. Multi-Functional Attachment Compatibility
The Model 1200T crawler skid steer loader can work with various attachments to complete different tasks.
Available attachments include:
- Bucket
- Auger
- Hydraulic breaker
- Trencher
- Pallet fork
- Snow blower
- Grapple
- Sweeper
One machine can replace multiple types of equipment, reducing investment costs and improving job efficiency.
5. Reliable Engine and Durable Structure
Built with high-quality components and a reinforced frame, the 1200T crawler skid steer loader is designed for long-term operation.
Features:
- Durable steel structure
- High-strength working arm
- Easy maintenance design
- Reliable hydraulic components
- Long service life
Applications
The Model 1200T Crawler Skid Steer Loader is widely used in:
- Construction Projects
- Earthmoving
- Excavation
- Material loading
- Site preparation
2. Agriculture
- Farm maintenance
- Feed handling
- Land improvement
3. Landscaping
- Tree planting
- Ground leveling
- Garden construction
4. Municipal Engineering
- Road repair
- Snow removal
- Pipeline installation
Technical Parameters
| Item | WT1200T |
|---|---|
| Engine Model | Quanchai 4C6-88C33 |
| Emission Standard | China Stage III |
| Rated Power (kW) | 65 |
| Rotating Speed (rpm) | 2200 |
| Max. Speed (km/h) | 9 / 15 |
| Operating Load (kg) | 1200 |
| Max. Loading (kg) | 3428 |
| Lifting Type | Radial Lift |
| Total Cycling Time (s) | 9 |
| Max. Gradeability (°) | 27 |
| Bucket Capacity (m³) | 0.55 |
| Working System Pressure (bar) | 235 |
| Rated Flux (L/min) | 76 |
| High Flow Flux (L/min) | 140 |
| Fuel Tank Capacity (L) | 125 |
| Self-weight With Bucket (kg) | 4400 |
| Major Dimensions | |
| Overall Operating Height (mm) | 4114 |
| Height to Bucket Hinge Pin (mm) | 3184 |
| Height to Top of Cab (mm) | 2065 |
| Height to Bottom of Level Bucket (mm) | 2987 |
| Overall Length Without Bucket (mm) | 2860 |
| Overall Length With Bucket (mm) | 3642 |
| Dumping Height (mm) | 2431 |
| Dumping Reach (mm) | 641 |
| Unloading Angle at Max. Height (°) | 41 |
| Rollback Of Bucket On Ground (°) | 26 |
| Ground Clearance (mm) | 288 |
| Angle Of Departure (°) | 32 |
| Front Turning Radius (mm) | 2270 |
| Rear Turning Radius (mm) | 1684 |
| Width (mm) | 1880 |
| Bucket Width (mm) | 1980 |
| Track Grounding Length (mm) | 1527 |
| Track Center Distance (mm) | 1480 |
| Track Plate Width (mm) | 400 |
Configuration
Why Choose Us?
✔ Strong traction for difficult terrain
✔ Compact size for limited working spaces
✔ Multiple attachments for different jobs
✔ High efficiency and low operating cost
✔ Durable design for long-term use
✔ Ideal equipment for contractors and rental companies
