Introduction

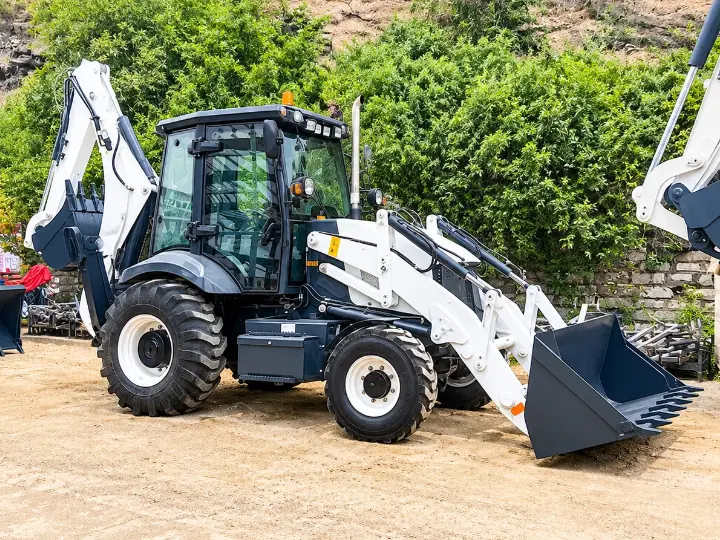

Reliable Backhoe Loader for Excavation, Loading & Construction Projects
Shanghe Machinery supplies reliable backhoe loaders designed for excavation, loading, trenching, material handling and general construction applications. Combining a front loader bucket with a rear excavator, the backhoe loader provides excellent versatility and productivity for construction, roadwork, landscaping, agriculture and municipal projects.
Looking for a backhoe loader for your project? Contact Shanghe Machinery for specifications, configuration options and a competitive quotation.
Backhoe Loader for Construction & Earthmoving
A backhoe loader is a multi-purpose construction machine that combines the functions of a wheel loader and hydraulic excavator in one unit. Its front loading bucket handles materials efficiently, while the rear digging arm provides strong excavation capability.
This combination allows operators to complete multiple tasks with one machine, reducing equipment requirements and improving jobsite efficiency.
Main Applications
- General earthmoving
- Excavation and trenching
- Loading and transporting materials
- Road construction and maintenance
- Foundation excavation
- Landscaping and site preparation
- Utility and pipeline projects
- Agricultural construction
- Municipal engineering
Key Features of Our Backhoe Loader
1. 2-in-1 Multifunctional Design
The backhoe loader integrates a front loader and rear excavator into one machine. It can switch between loading and digging operations according to different project requirements.
2. Powerful Hydraulic System
A reliable hydraulic system provides smooth and responsive operation for digging, lifting and loading tasks. The hydraulic configuration is designed for efficient performance in demanding working environments.
3. Strong Digging Performance
The rear excavator is designed to provide sufficient digging force for soil excavation, trenching and foundation work, making it suitable for a wide range of earthmoving projects.
4. Efficient Material Handling
The front loader bucket can be used for loading sand, gravel, soil, aggregates and other materials, helping improve productivity on construction sites.
5. Comfortable Operator Cabin
The operator cabin provides a practical working environment with convenient controls and good visibility, helping operators work efficiently during long working hours.
6. Suitable for Various Job Sites
With its multifunctional design and flexible operation, the backhoe loader can be used on construction sites, roads, farms, utility projects and municipal works.
Specifications
| Parameter | 388 Backhoe Loader | 388H Backhoe Loader | 388T Backhoe Loader |
|---|---|---|---|
| Overall Size Parameters | |||
| Operating Weight | 8,200 kg | 10,800 kg | 8,600 kg |
| Overall Dimension (L × W × H) | 6050 × 2465 × 3813 mm | 6554 × 2543 × 3660 mm | 6050 × 2484 × 3453 mm |
| Wheel Base | 2280 mm | 2293 ± 10 mm | 2280 mm |
| Wheel Tread | — | 2050 ± 10 mm | 1785 mm |
| Min. Ground Clearance | 300 mm | 475 mm | 300 mm |
| Performance | |||
| Load Bucket Capacity | 1.0 m³ | 1.2 m³ | 1.0 m³ |
| Backhoe Bucket Capacity | 0.3 m³ | 0.3 m³ | 0.3 m³ |
| Load Breakout Force | 47 kN | 47 kN | 47 kN |
| Backhoe Digging Force | — | 49.8 kN | 49.3 kN |
| Load Lifting Capacity | 2500 kg | 2500 kg | 2500 kg |
| Bucket Dumping Height | 2807 mm | 3153 mm | 2807 mm |
| Bucket Dumping Distance | 908 mm | 989 ± 20 mm | 801 mm |
| Digging Depth | 56 mm | 30 mm | 30 mm |
| Backhoe Max. Digging Depth | 3967 mm | 4102 / 5045 mm | 4303 / 5246 mm |
| Backhoe Swing Angle | 180° | 180° | 180° |
| Max. Traction / Pulling Force | 76 kN | 86 kN | 76 kN |
| Engine | |||
| Engine Model | Yuchai YC4A105Z-T20 |
904J-E36TA WP3.6NG101E680 / WP3.6NG112E680 YC4A105Z-T20 / YC4A110Z-T23 WP4G95E221 |
904J-E36TA WP3.6NG101E680 / WP3.6NG112E680 YC4A105Z-T20 / YC4A110Z-T23 WP4G95E221 |
| Engine Manufacturer | Yuchai |
Perkins – Euro V Weichai – Euro V Yuchai – China II Weichai – China II |
Perkins – Euro V Weichai – Euro V Yuchai – China II Weichai – China II |
| Engine Type | Turbocharging Four-Stroke |
Turbocharge Turbocharge Inline Direct Injection, Water Cooled, Turbocharge Inline Direct Injection, Water Cooled, Turbocharge |
Turbocharge Turbocharge Inline Direct Injection, Water Cooled, Turbocharge Inline Direct Injection, Water Cooled, Turbocharge |
| Displacement | 4.8 L | 3.6 L / 3.6 L / 4.8 L / 4.5 L | 3.6 L / 3.6 L / 4.8 L / 4.5 L |
| No. of Cylinders | 4 | 4 / 4 / 4 / 4 | 4 / 4 / 4 / 4 |
| Cylinder Diameter | 108 mm | 98 / 100 / 108 / 105 mm | 98 / 100 / 108 / 105 mm |
| Stroke | 132 mm | 120 / 114 / 132 / 130 mm | 120 / 114 / 132 / 130 mm |
| Rated Engine Speed | 2200 rpm | 2400 / 2200 / 2200 / 2200 rpm | 2400 / 2200 / 2200 / 2200 rpm |
| Rated Power | 75 kW | 74.5 / 82 kW; 74 / 82 kW; 74 / 82 kW; 70 kW | 74.5 / 82 kW; 74 / 82 kW; 74 / 82 kW; 70 kW |
| Maximum Torque | 400 N·m | 430 / 450 N·m; 450 / 500 N·m; 400 / 425 N·m; 380 N·m | 430 / 450 N·m; 450 / 500 N·m; 400 / 425 N·m; 380 N·m |
| Maximum Torque Speed | — | 1500 / 1400–1600 / 1400–1700 / 1400–1600 rpm | 1500 / 1400–1600 / 1400–1700 / 1400–1600 rpm |
| Min. Fuel Consumption | 230 g/kW·h | — | — |
| Steering System | |||
| Type | — | Hydraulic Steering | Hydraulic Steering |
| Steering Gear Model | BZZ-250 | BZZ-250 | BZZ-250 |
| Pump Displacement | — | 80 ml/r | 63 ml/r |
| Pump Model | — | HP3V80 | SGP2063 |
| Steering Angle | ±39° | ±36° | ±41° |
| Min. Turning Radius | 6581 mm | 6950 mm | 6581 mm |
| Steering System Pressure | 14 MPa | 14 MPa | 14 MPa |
| Driving Axle | |||
| Driving Axle Model | — | 26.32–1900 / 26.43M–1900 | 26.22–1920 / 26.43M–1654 |
| Manufacturer | — | Carraro – Italy | Carraro – Italy |
| Rated Front Axle Load | 22.5 t | 25 t | 22.5 t |
| Rated Rear Axle Load | 18.5 t | 18.75 t | 18.75 t |
| Transmission System | |||
| Transmission Type | Double Reduction / Fixed Shaft Power Transmission | Hydraulic Synchronized Gearshift | Countershaft Powershift |
| Final Reducer | Single Stage Final Reducer | — | — |
| Torque Converter Model | YJ290 | — | — |
| Torque Converter Type | Single-Stage Three Elements | — | Hydraulic Torque Converter |
| Max. Efficiency | 84.4% | — | — |
| Inlet Pressure | 0.5–0.65 MPa | — | — |
| Outlet Pressure | 0.15–0.3 MPa | — | — |
| Gearbox Model | Fixed Shaft Power Transmission | SPS 4WD 4WS | TLB1–4WD |
| Gears | 4 Forward / 4 Reverse | 4 Forward / 4 Reverse | 4 Forward / 4 Reverse |
| Cooling Mode | Oil-Cooling Pressure Circulation | Pressure Oil Circulation | Oil-Cooling Pressure Circulation |
| Clutch Oil Pressure | 2.0–2.3 MPa | — | — |
| Maximum Travel Speed | 39 km/h | 38 km/h | 39 km/h |
| Tyres | |||
| Tyre Model | 14–17.5 / 19.5L–24 | 16.9–28 | 14–17.5 / 19.5L–24 |
| Front Tyre Pressure | 0.4 MPa | 0.35 MPa | 0.4 MPa |
| Rear Tyre Pressure | 0.35 MPa | 0.35 MPa | 0.35 MPa |
| Brake System | |||
| Traveling Brake | Air Over Oil Caliper Brake | Wet Internal, Self-Regulate, Self-Balance Type | Wet Internal, Self-Regulate, Self-Balance Type |
| Service Brake | External Type; Self-Regulation; Self-Balance | Wet Internal Type | Wet Internal Type |
| Parking Brake | Manual Operation Power Terminating Brake | Manual Brake | Manual Brake |
| Emergency Brake | Operation Power Implementing Brake | — | — |
| Hydraulic System | |||
| Loading Hydraulic System Pressure | — | 20 MPa | 20 MPa |
| Excavation Hydraulic System Pressure | — | 20 MPa | 20 MPa |
| Steering Hydraulic System Pressure | 14 MPa | 14 MPa | 14 MPa |
| Digging Power of Excavator Grab | 50 kN | — | — |
| Digging Power of Dipper | 31 kN | — | — |
| Bucket Lifting Time | 6.8 s | — | — |
| Bucket Lowering Time | 3.1 s | — | — |
| Bucket Discharge Time | 2.0 s | — | — |
Specifications can be customized according to project requirements. Please contact us for the detailed technical specification sheet.
Why Choose a Backhoe Loader?
For projects requiring both digging and loading operations, a backhoe loader can provide a practical alternative to using separate machines.
- One Machine, Multiple Functions
A single backhoe loader can perform excavation, trenching, loading and material handling tasks.
2. Reduced Equipment Requirements
Its multifunctional design can reduce the need for multiple types of machinery on smaller and medium-sized projects.
3. Flexible Operation
The machine can quickly switch between front loading and rear excavation operations.
4. Cost-Effective Solution
Combining multiple functions into one machine can help reduce equipment investment and improve overall jobsite efficiency.
Backhoe Loader for Sale
Shanghe Machinery provides backhoe loaders for customers involved in construction, infrastructure, road building, agriculture and earthmoving projects.
We can provide suitable machine configurations according to:
- Project application
- Required digging depth
- Loading capacity
- Engine requirements
- Working conditions
- Attachment requirements
- Transportation requirements
Whether you need a backhoe loader for road construction, excavation, material loading or general earthmoving, our team can recommend a suitable configuration for your project.
Get Backhoe Loader Price & Quotation
Looking for a backhoe loader for sale or want to know the backhoe loader price?
Send us your project requirements and our team will provide:
- Machine specifications
- Available configurations
- Backhoe loader price
- Delivery information
- Spare parts information
- Technical support
- After-sales service
Contact Shanghe Machinery today for a backhoe loader quotation.
FAQ
1. What is a backhoe loader used for?
A backhoe loader is mainly used for excavation, trenching, loading, material handling, road construction, landscaping and other earthmoving applications.
2. What is the difference between a backhoe loader and an excavator?
A backhoe loader combines a front loader with a rear excavator, allowing it to perform both loading and excavation tasks. A conventional excavator is primarily designed for excavation and related operations.
3. Can the backhoe loader be used for road construction?
Yes. Backhoe loaders are widely used for road maintenance, trenching, drainage work, foundation excavation, material loading and site preparation.
4. Can you provide a backhoe loader quotation?
Yes. Contact Shanghe Machinery with your required application, specifications and destination. We can provide a suitable configuration and quotation.
Contact Shanghe Machinery
Need a reliable backhoe loader for your project?
Tell us your required machine type, application and destination. Our sales team will recommend a suitable configuration and provide a quotation.
Get a Backhoe Loader Quote Today
