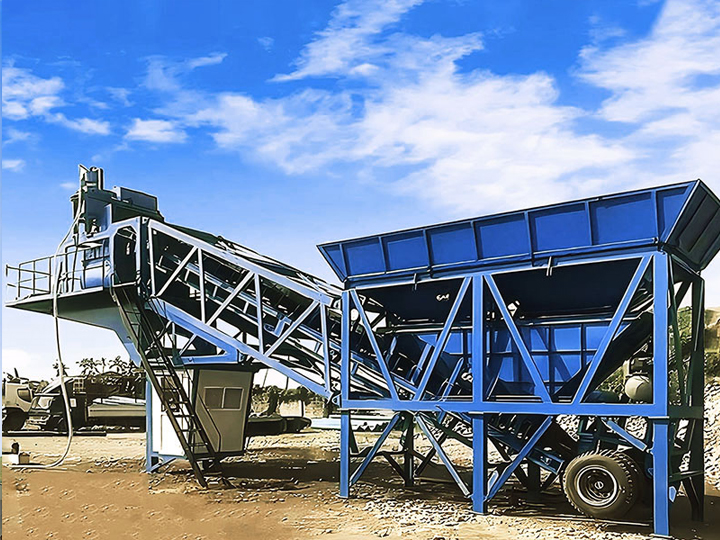

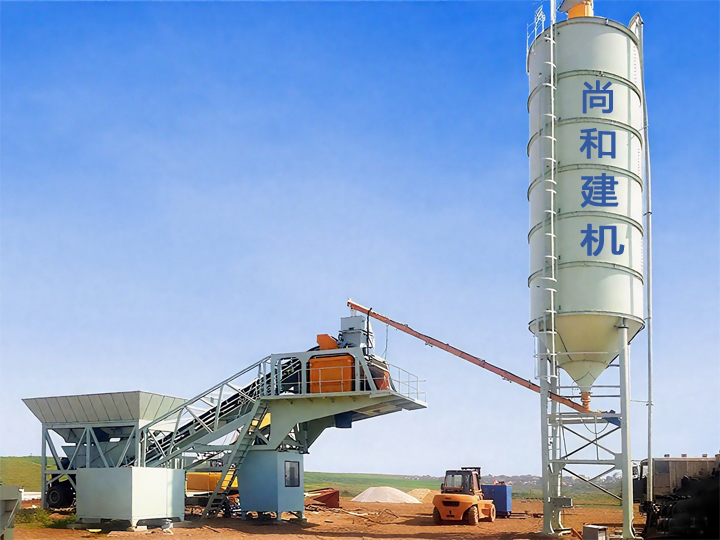

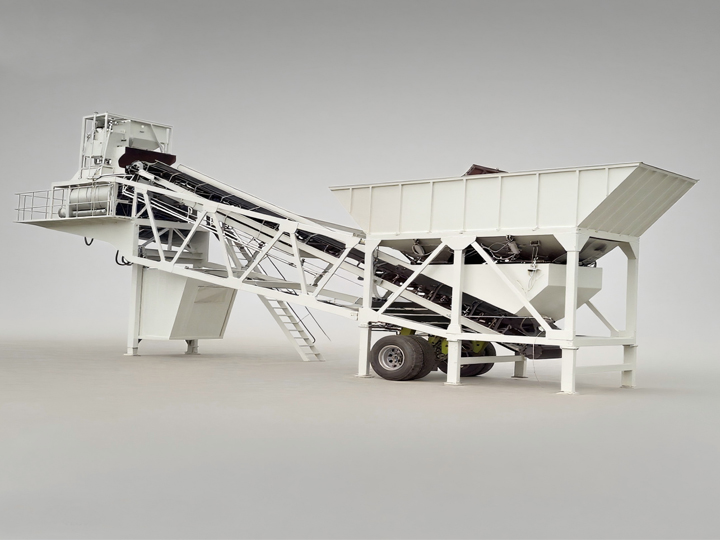

Product Introduction

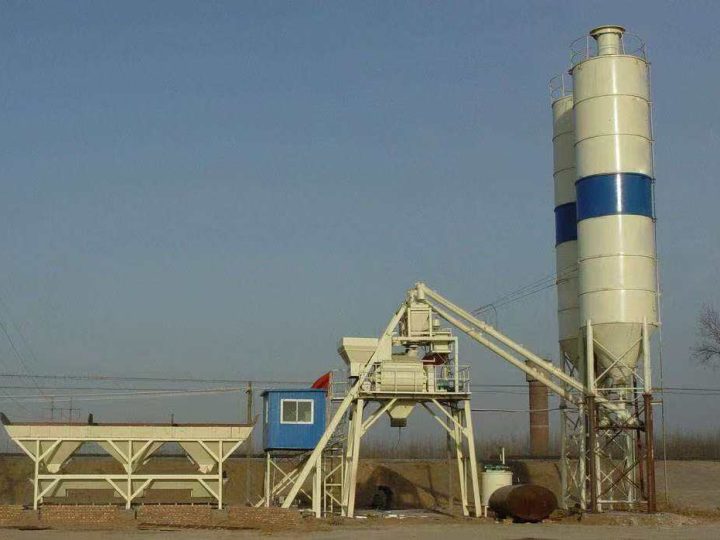

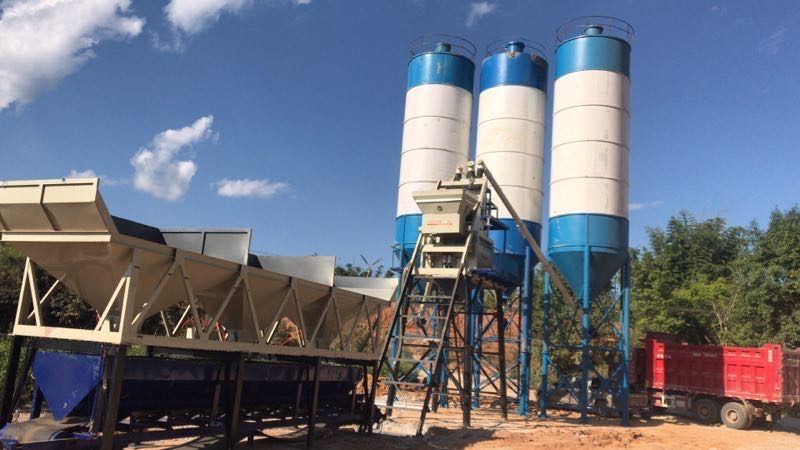

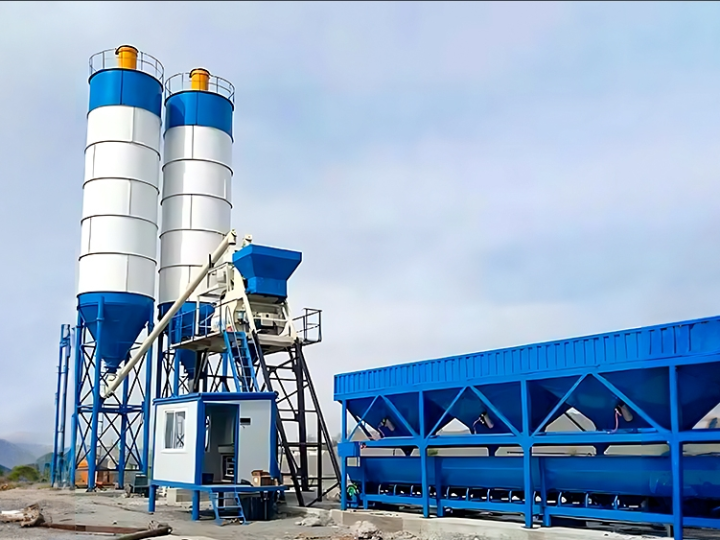

The theoretical production rate of HZS60 concrete mixing plant is 60 cubic meters per hour, also known as 60 stations. Equipped with JS1000 forced double horizontal shaft mixing host, with a nominal capacity of 1000L, the batching capacity of the batching machine is 1600L, and the maximum production rate of the screw conveyor is 80t/h. It mainly consists of components such as cement silo, cement tank, screw conveyor, PLD batching machine, double horizontal shaft mixing host, computer control and metering system. The whole machine adopts a dual computer control system, which can automatically ensure the continuous production control of the system without any impact when switching between the two machines. Dynamic panel display, which can clearly understand the operation status of each part. An intuitive monitoring interface that allows for clear and accurate observation of on-site workflow. It has the advantages of high productivity, reliable work performance, low investment, strong mobility, and small footprint. Widely used in large and medium-sized construction projects, road and bridge engineering, and precast factories producing concrete products, it is an ideal equipment for large and medium-sized construction projects, road and bridge engineering, and commercial concrete production units.
| Why HZS60 Concrete Batching Plant: |
| 1. High efficient. The HZS60 cocncrete batch plant can mix within 45 seconds and can produce around 50,000 cube concrete; 2. Easy operation.HZS60 concrete plant is equipped with automatic control system, thus the whole plant can be operated through a computer; 3. Small size. HZS60 concrete batch plant with small concrete production capacity is produced with small size to meet the production location.; 4. High quality. To guarantee the quality of products, HZS60 concrete batch plant uses Schneider brand electric components, ,and mixer drums adopts 6-8mm Q345 high strength steel; 5. Easy maintenance. We have oversea agents in many countries, including Thailand, Uzbekistan, Kazakhstan, and so on. Thus, if there is any problem, you can contact us immediately, and the plant will be maintained quickly in low cost. |
Working principle
The aggregate is discharged into the aggregate measuring hopper through the discharge door of the aggregate bin at the batching station for measurement. After measurement, it is unloaded onto a far rotating flat belt, which is sent to the inclined belt conveyor. The inclined belt conveyor then transports the aggregate to the waiting hopper at the top of the mixer for instructions. At the same time, cement and fly ash are transported to their respective measuring hoppers by screw conveyors for measurement. Water and admixtures are pumped to their respective measuring hoppers by water pumps and admixture pumps for measurement. After the various materials are measured, the control system sends instructions to start sequentially feeding them into the mixer for mixing. After mixing is completed, the discharge door of the mixer is opened to unload the concrete into the mixing and transportation through the discharge hopper, and then enter the next working cycle.
System
| Main parts of HZS60: |
| The whole plant has 5 parts, include aggregate batcher, aggregate feeding system, mixer, weighing system and the control system. |

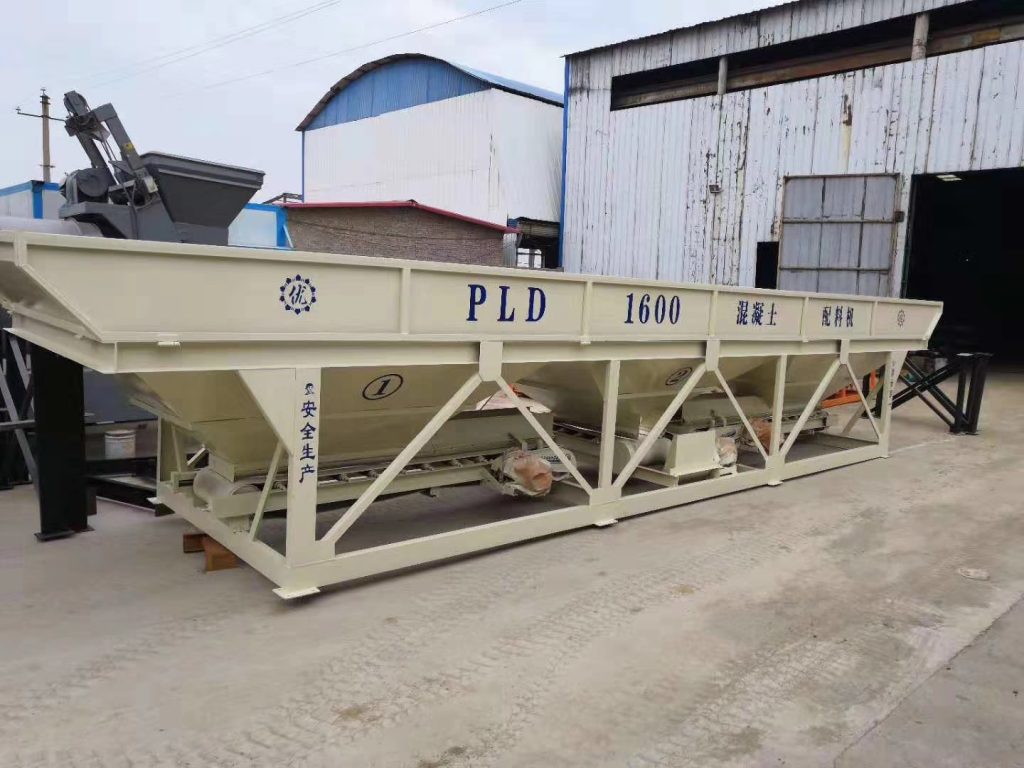

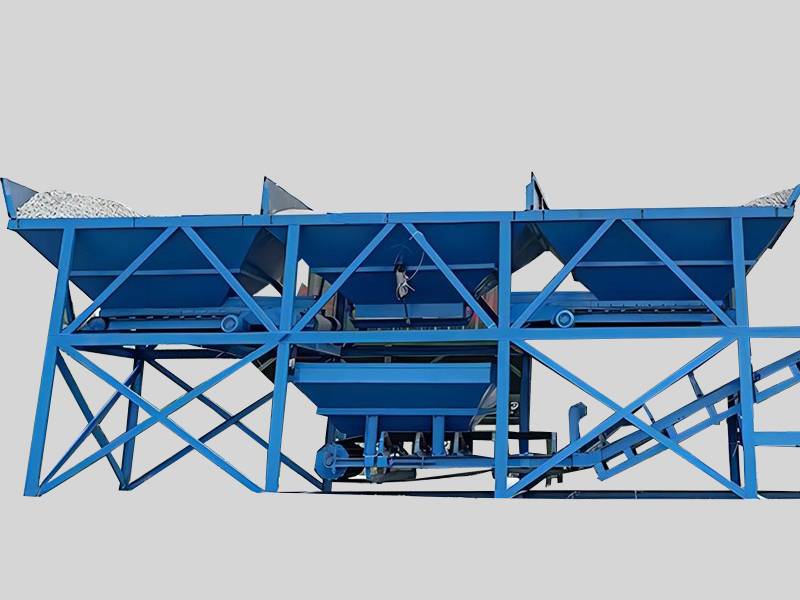

A.Aggregate batcher:
HZS60 concrette plant has 3 units 8m3 bins and one aggregate weighing hopper.The aggregate is culmulative weighing.
Features of aggregate batcher:
1.3 units 8m3 bins
2.Cumulative weighing
3.Match 2 vibrator
4.Include flat belt conveyor, belt width 650mm

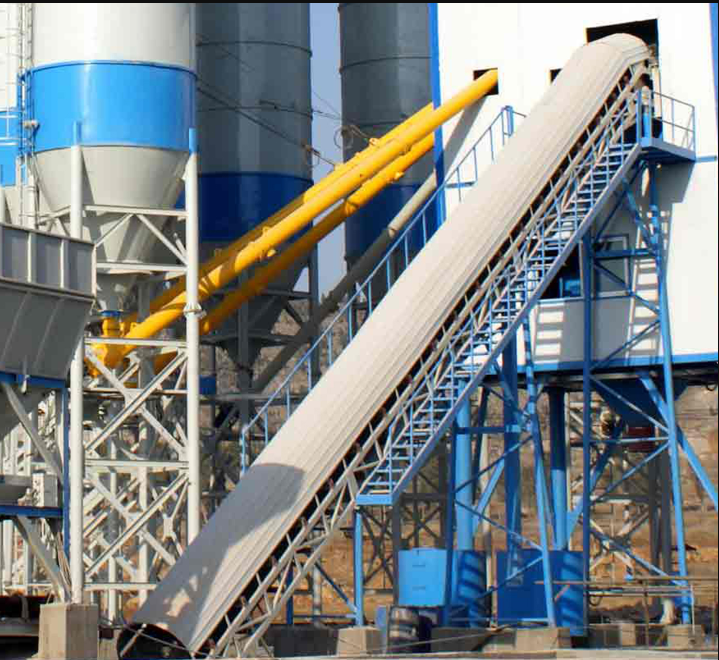

B.Aggregate feeding system
☛Aggregate use belt conveyor to feed the aggregate to the mixer.
Features of Conveyor System:
1.Belt width:650mm
2.Power:15KW
3.Flat belt type with rain proof cover
4.With aggreagte storage hopper

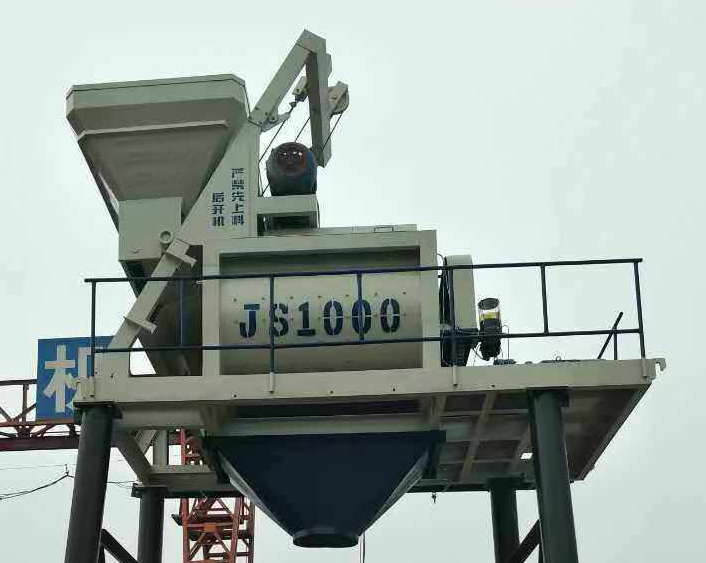

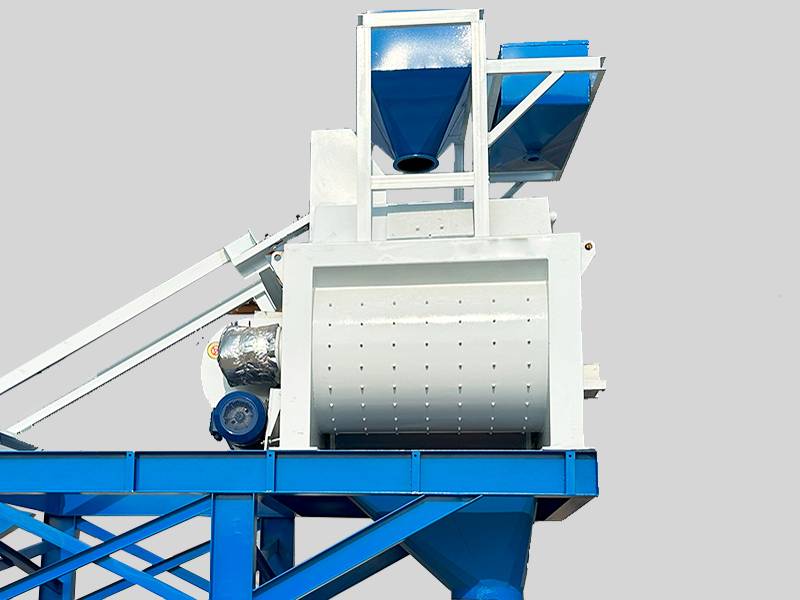

C.Mixer
The mixing system is the main part for the whole plant. And this plant is equipped with JS1000, which is more suitable for mixing dry and hard concrete.Planetary type mixer as an optional choice.
☛Features of JS1000 Concrete Mixer:
1.The concrete mixer is equipped with twin shaft mixer, having longer service life;
2.We also own patented mixer shaft sealing technology researched by our R&D teams;
3.We also provide planetary mixer and single shaft mixer to meet different clients’ demands;
4.Mixer drums adopts 6-8mm Q345 high strength steel, which is wear-resisting and can produce around 50,000 cube concrete.

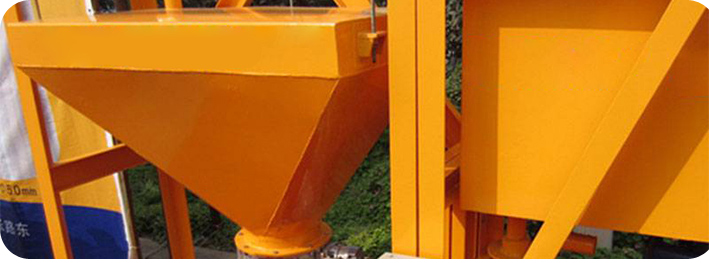

D.Weighing system

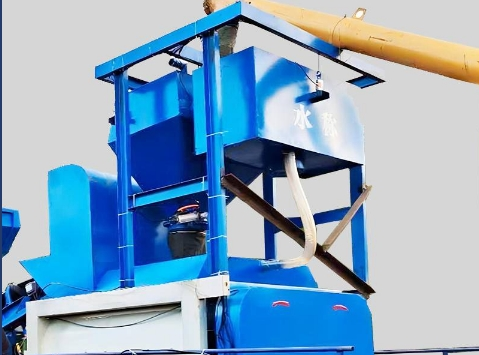

Weighing system include cement weighing hopper, water weighing hopper and additive weighing hopper.
☛Features of weighing system:
1.Accurate weighing. The HZS60 concrete mixing plant adopts the method of accumulative measurement and automatic system, thus it performs accurate when weighing.

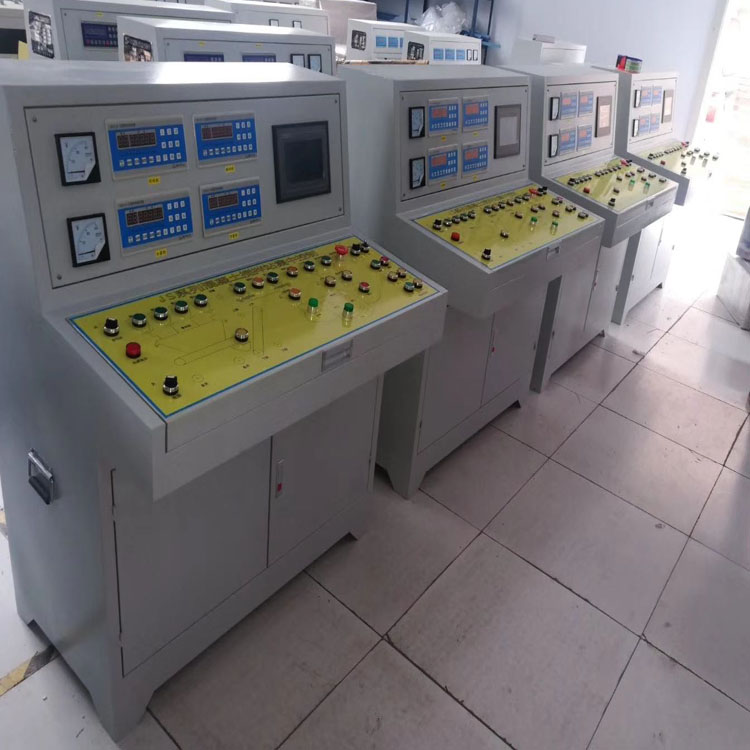

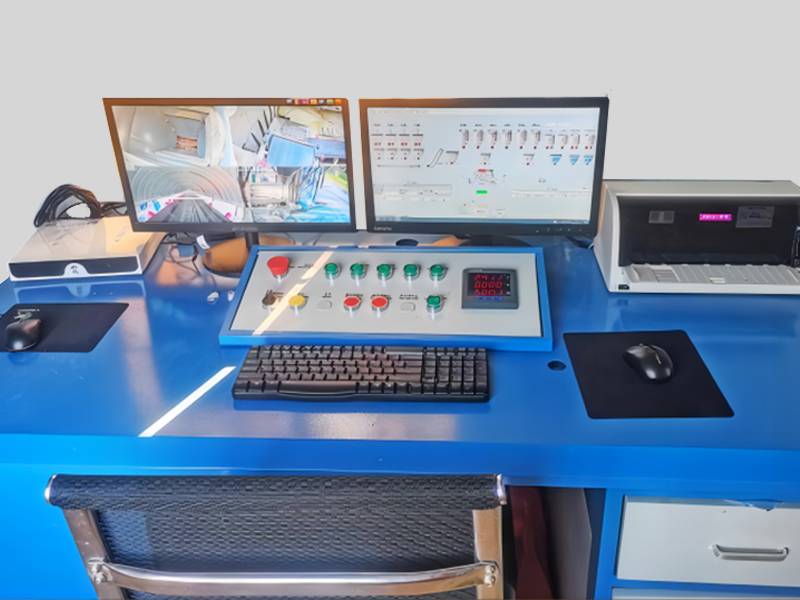

E.Control system
☛Full automatic computer control.There are 2 models.Manual and Auto.
1.Accurate. The whole operation is controlled by automatic system, thus it performances more accuracy;
2.Easy operation. Equipped with automatic control, batching and weighing system, HZS60 concrete plant is easy to operate.
Whole station section | Model | HZS60 |
| Theoretical productivity (m ³/h) | 60 | |
| Standard discharge height (m) | 3.8 | |
| Work cycle time (S) | 60 | |
| Dimensions (mm) (length, width, height) | 36500×11300×20400 | |
| Total installed capacity (kw) | 105 | |
| Blender section | Model | JS1000 |
| Ingredient machine section | Model | PLD1600 Pneumatic Scale |
Pneumatic system | Air compressor model | 1.5-7 |
| Rated displacement (m ³/min) | 1.67 | |
| Rated exhaust pressure (MPa) | 0.8 | |
| Motor power (kw) | 7.5 | |
Weighing system | Sand and gravel measurement accuracy range (kg) accuracy | ±2% |
| Cement measurement accuracy range (kg) accuracy | ±1% | |
| Water measurement accuracy range (kg) degree | ±1% | |
| Additive measurement accuracy range (kg) degree | ±2% |

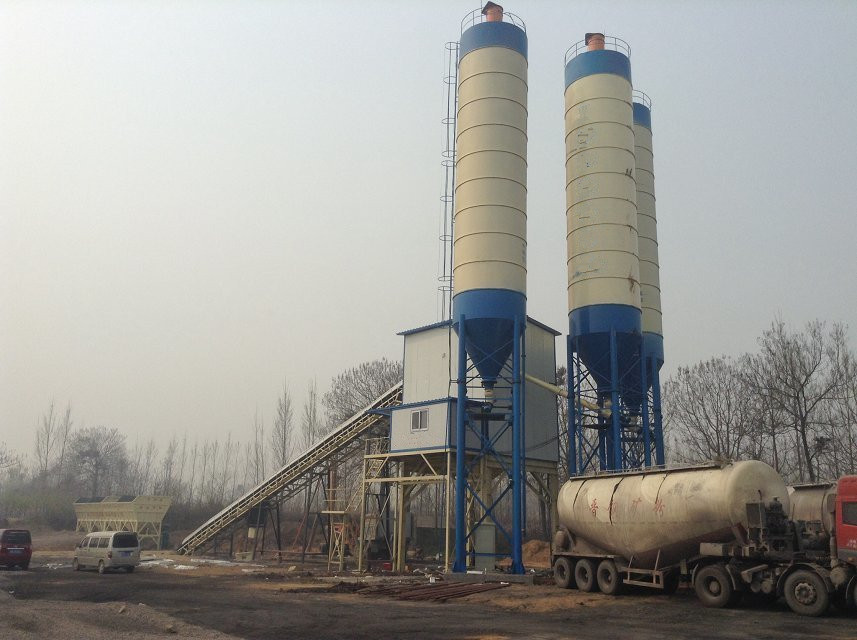

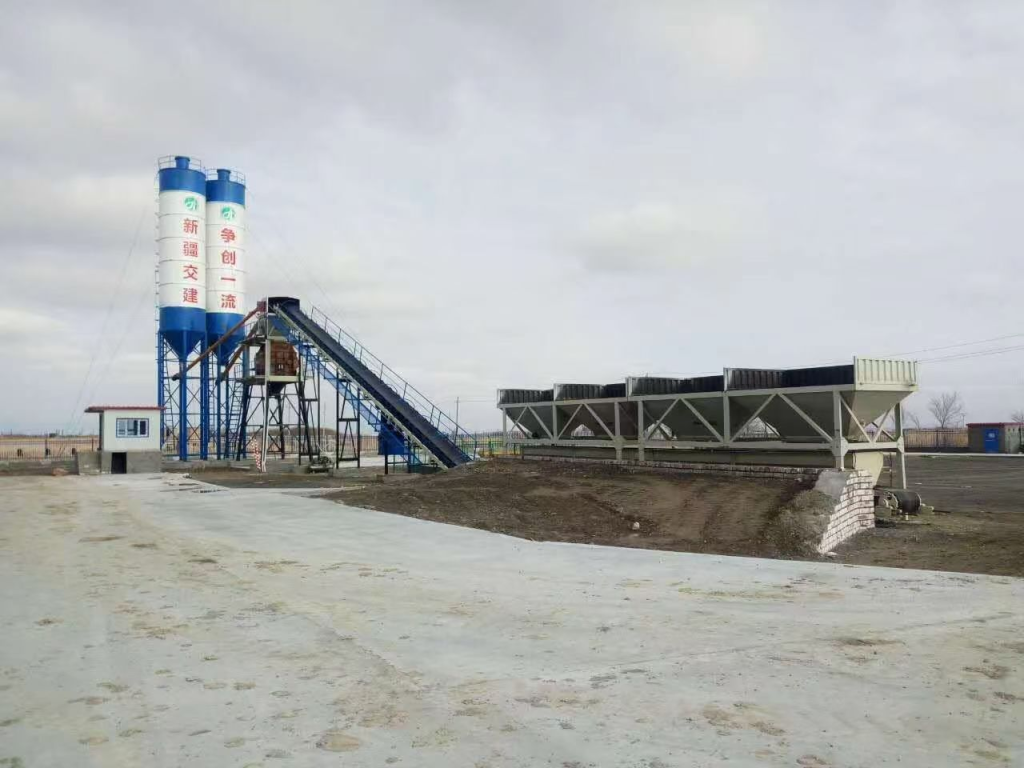

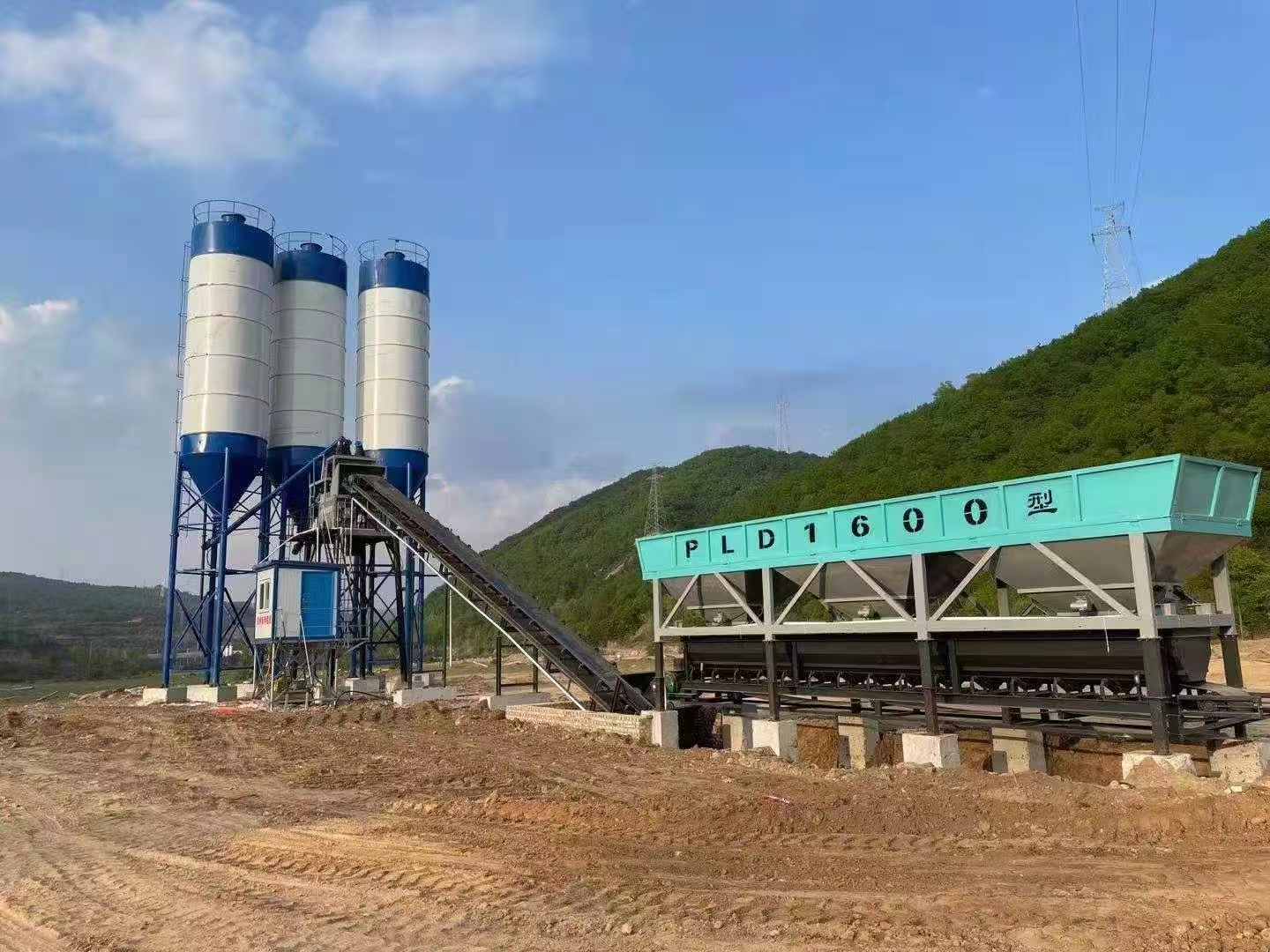

Project portfolio
