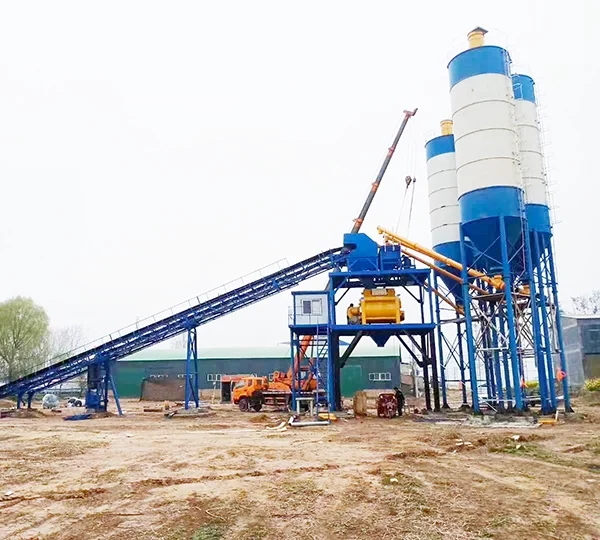

HZS90 Concrete Batching Plant

90 m³/h Output | Commercial Grade | Ideal for Medium to Large Projects

Mixer: JS1500 Twin-Shaft Mixer

Aggregate Feeding: Belt conveyor

Cement Silo: 2 × 100T optional

Free Quotation Now WhatsApp Send Email

Free Quote

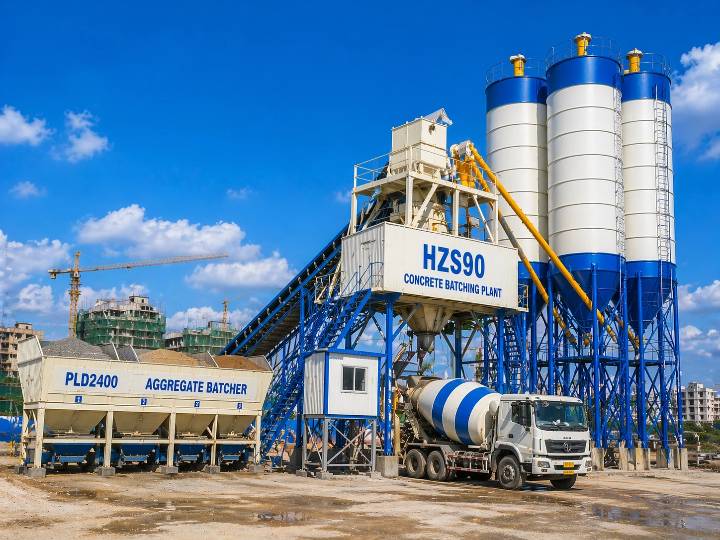

Shanghe HZS90 Batching Plant

The HZS90 concrete batching plant is designed for continuous production, reliable quality, and profitable operation, making it a popular choice for ready-mix companies and contractors.

Mixer Type

Twin-Shaft JS1500

Mixer Capacity

1500 L

(1.5 m³)

Aggregate Bins

4 × 12 m³

Total Power

138.45 kW

Silo Capacity

2 × 200 T

Core Advantages

Every component of the HZS90 is engineered to maximize throughput, minimize downtime, and deliver consistent mix quality — shift after shift, project after project.

01 ⚙️ Twin-Shaft Mixer The JS1500 twin-shaft compulsory mixer ensures thorough, homogeneous mixing in as little as 30 seconds, producing C10 to C60 concrete grades with excellent consistency.	02 🎯 Precision Weighing Electronic load cell batching delivers ±1% accuracy for aggregates, cement, water, and admixtures. PLC integration guarantees exact mix ratios every cycle.
03 🖥️ Intelligent Control Computerized touchscreen system with real-time production logs, 999 formula storage, and remote diagnostics through network connection.	04 🏗️ Modular Structure Pre-assembled flat-pack modules allow installation in as little as 3 days. Bolted steel frame enables easy relocation without welding.
05 💧 Water Recycling Closed-loop recycling with sedimentation tank reuses wash water, reducing freshwater use by up to 40% and minimizing runoff.	06 🛡️ Low Maintenance High-chromium alloy wear liners support 100,000+ m³ service life. Centralized lubrication and predictive alerts reduce downtime.

Technical Specifications

The HZS90 is engineered to exacting tolerances. Below are the verified performance parameters — the same data your structural engineers and project managers need to make the right decision.

Mixer: JS1500 Twin-Shaft Mixer
Output: 90 m³/h
Aggregate Feeding: Belt conveyor
Cement Silo: 2 × 100T optional
Weighing System: Electronic load-cell
Control Mode: Full automatic PLC

Parameter	Description	Value
Output	Theoretical production rate	90 m³/h
Mixer Type	Compulsory twin-shaft	JS1500
Mixer Capacity	Discharge volume per batch	1,500 L
Aggregate Bins	Number × capacity each	4 × 12 m³
Aggregate Size	Max aggregate diameter	80 mm
Cement Silos	Number × capacity each	2 × 200 T
Weighing — Agg	Batching accuracy	±2%
Weighing — Cement	Batching accuracy	±1%
Weighing — Water	Batching accuracy	±1%
Mixing Time	Cycle per batch	≥ 30 sec
Total Power	Installed electrical load	138.45 kW
Mixer Motor	Drive motor rating	2 × 37 kW
Dust Control	Bag filter + pulse jet	Standard
Control System	Automated PLC + HMI	Siemens
Dimensions (L×W×H)	Overall footprint	36×16×20 m
Weight	Total plant weight	~110 T

Application Fields

The HZS90 is the preferred plant for projects where volume, quality, and delivery speed all matter simultaneously.

🌉 Bridge & Tunnels High-volume structural concrete with strict specification compliance.	🏢 High-Rise Buildings Continuous pours for tower cores and slab schedules.	🛣️ Highway & Roads Consistent mix quality for pavement and base course work.	🏭 Precast Plants Fast cycle times and precise batching for precast production.
⚡ Power Stations Mass concrete for dams, cooling towers, and foundations.	🏗️ Industrial Zones Factory floors, warehouse slabs, and heavy-duty pavement.	⚓ Port & Marine Marine-grade mixes for jetties, quay walls, and coastal works.	🏘️ Real Estate Dev Centralized batching for multiple daily pours.
