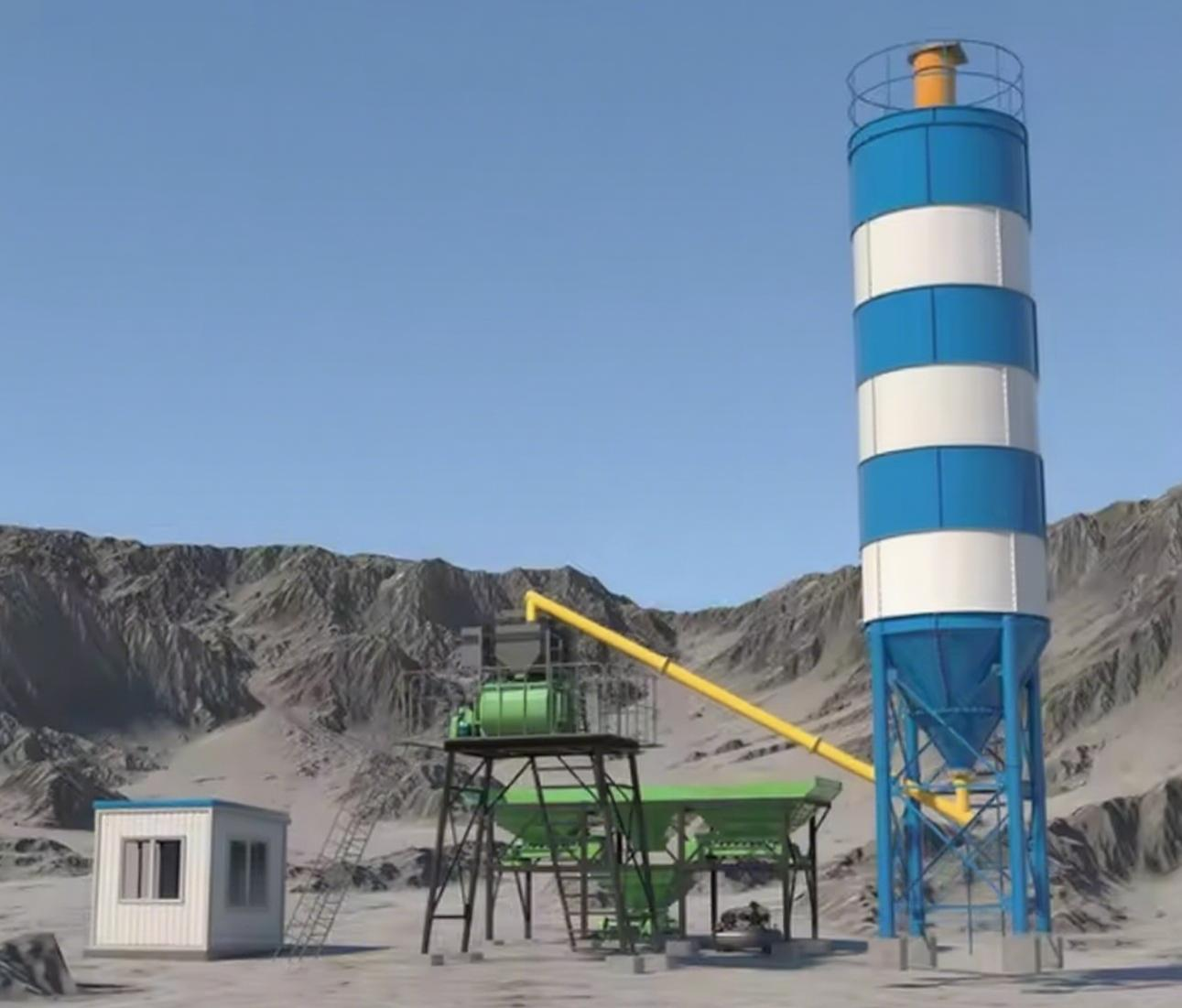

Components

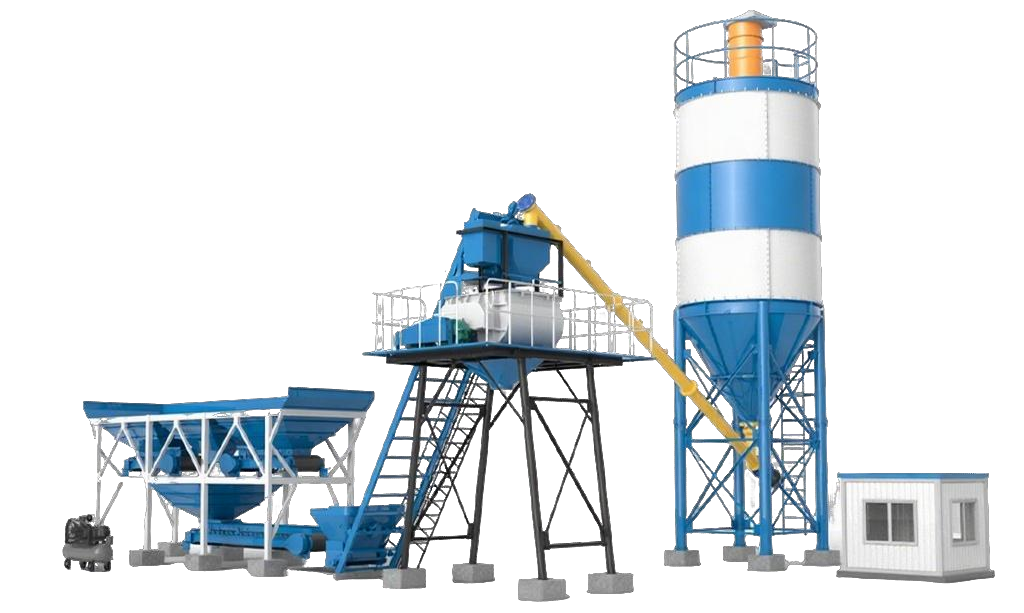

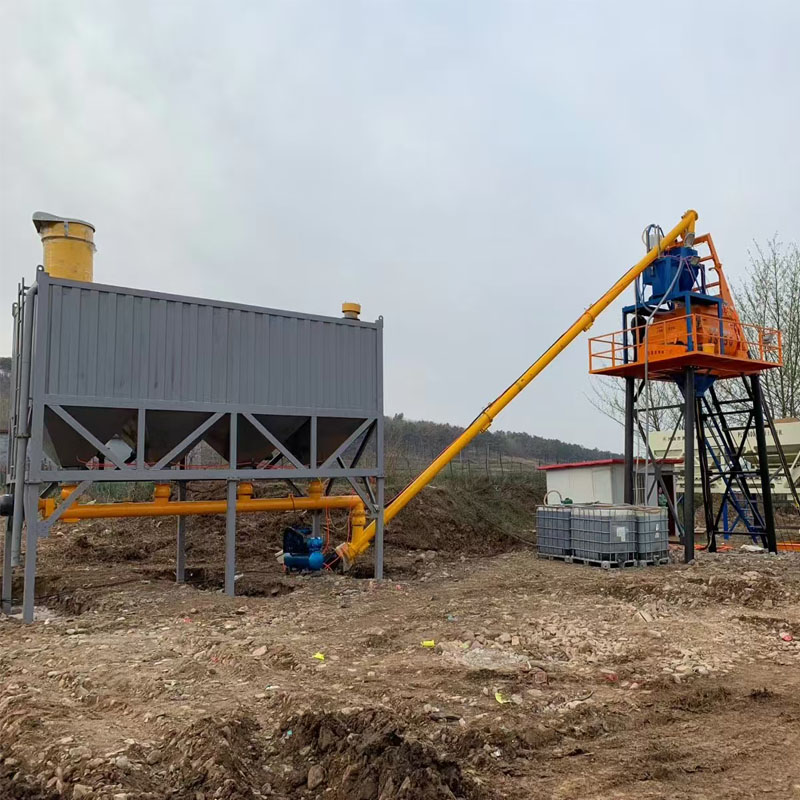

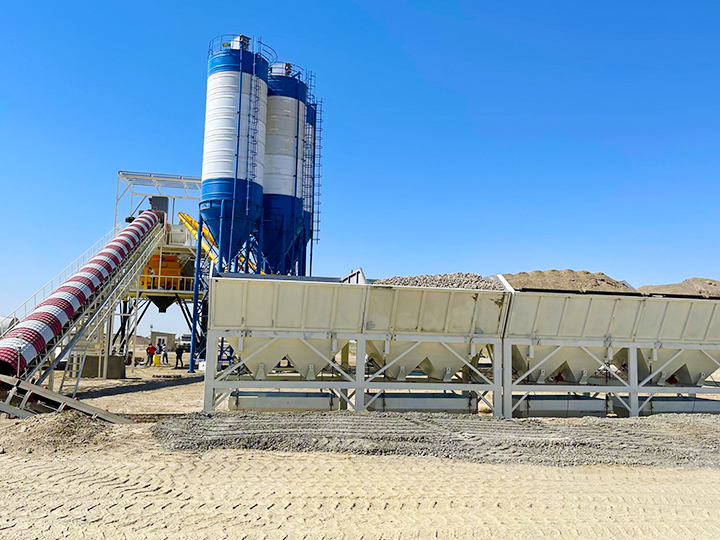

- Aggregate Bunker (unit where aggregate is stored)

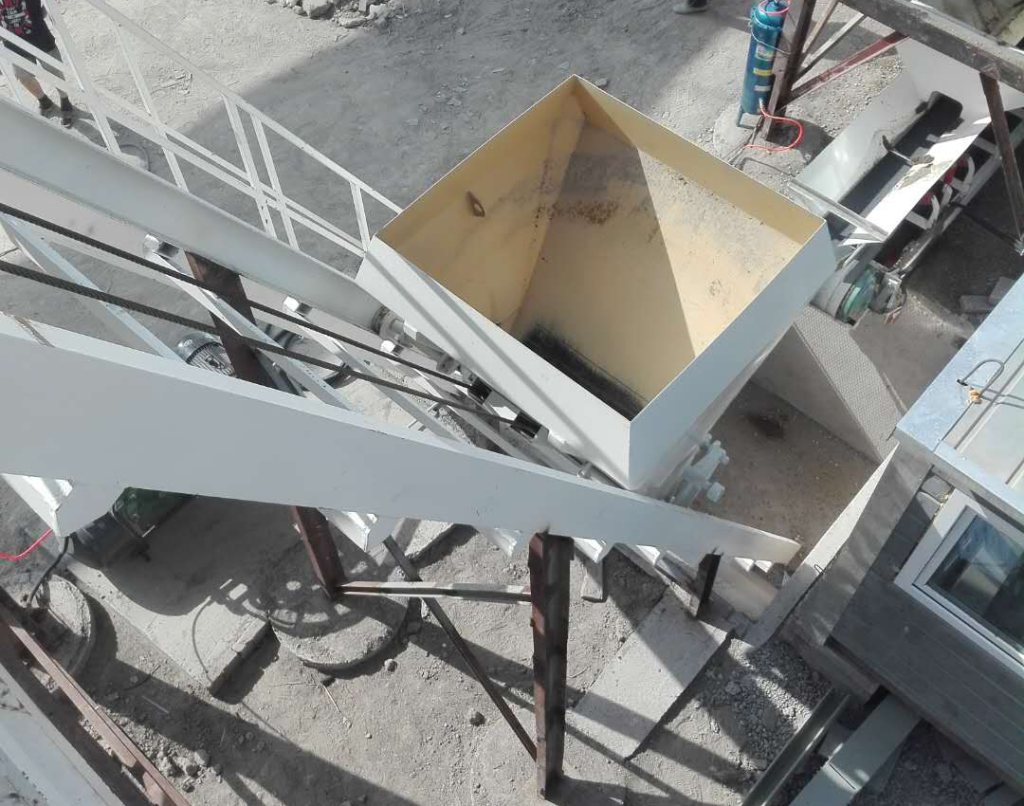

2. Aggregate Weighing Conveyor (Unit where the aggregate weighed precisely weighed under the aggregate bunker)

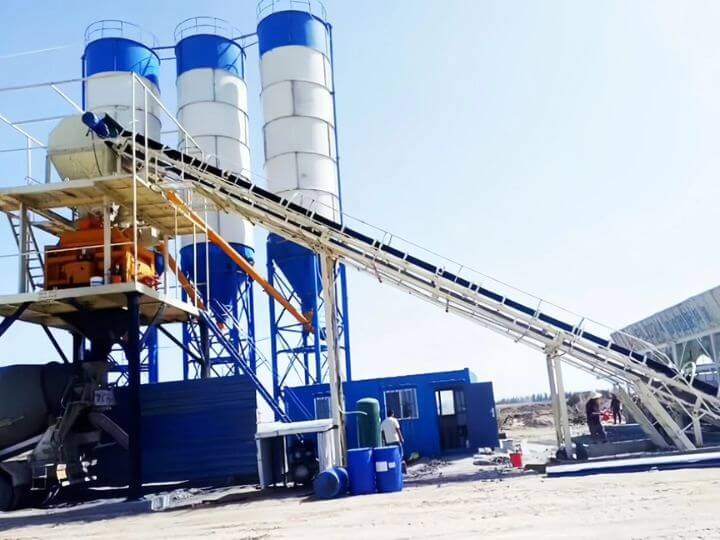

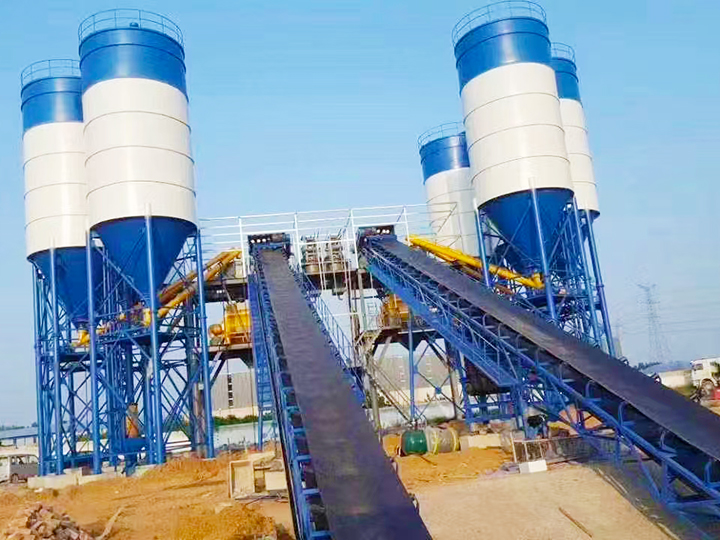

3. Aggregate Transfer Conveyor or Aggregate Transfer Bucket (Unit that carries the weighed aggregate to the mixer)

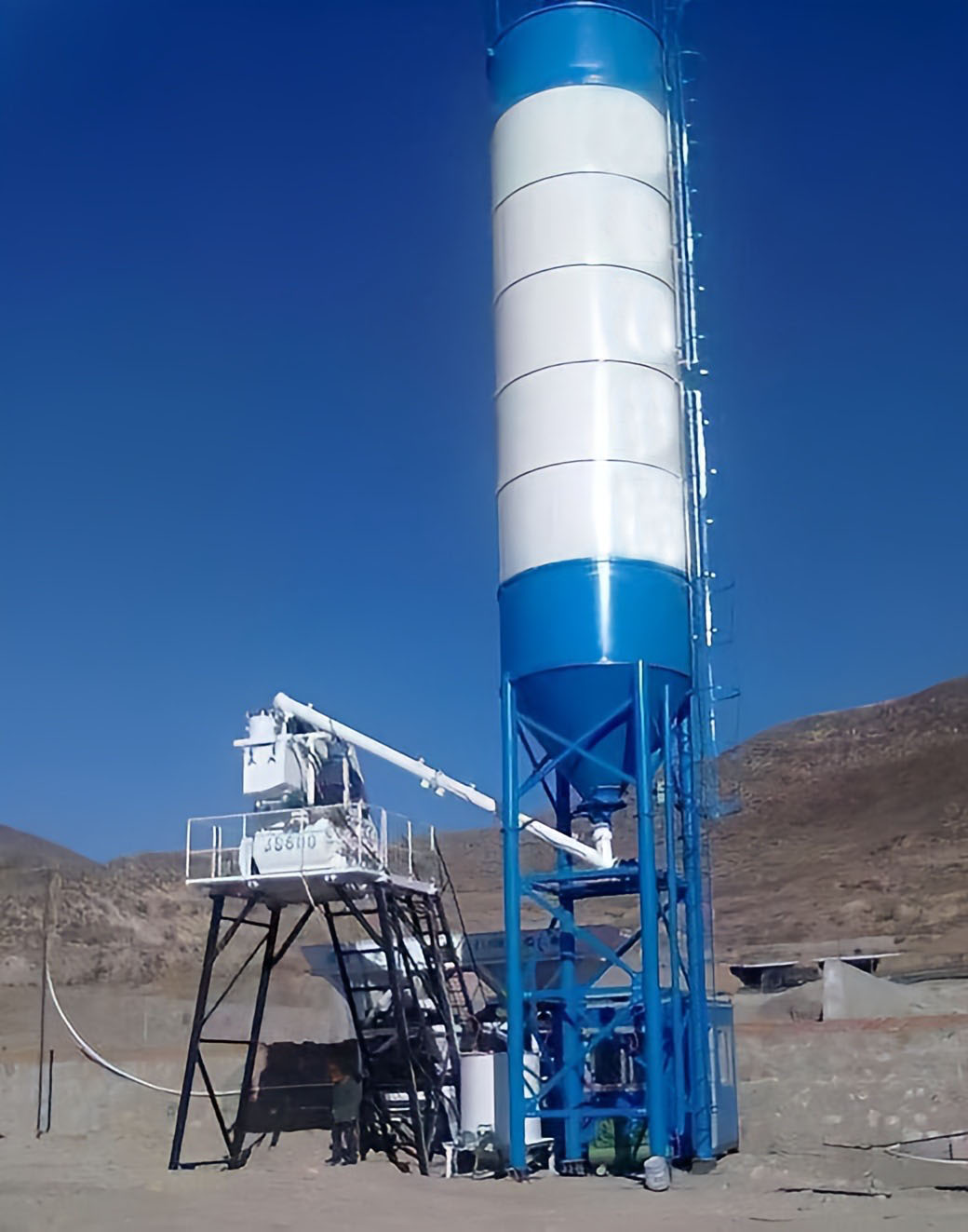

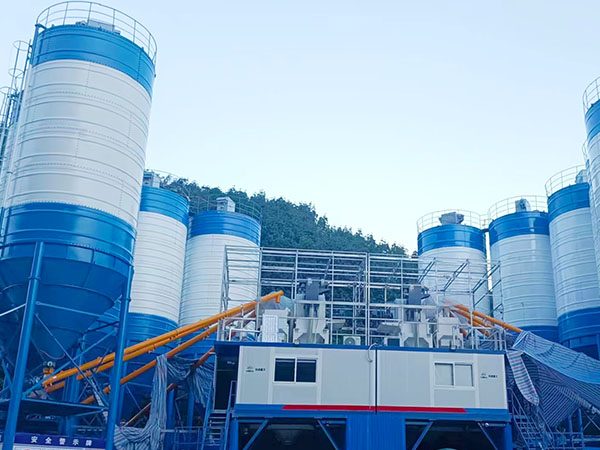

4. Cement Silo (unit where cement is stored)

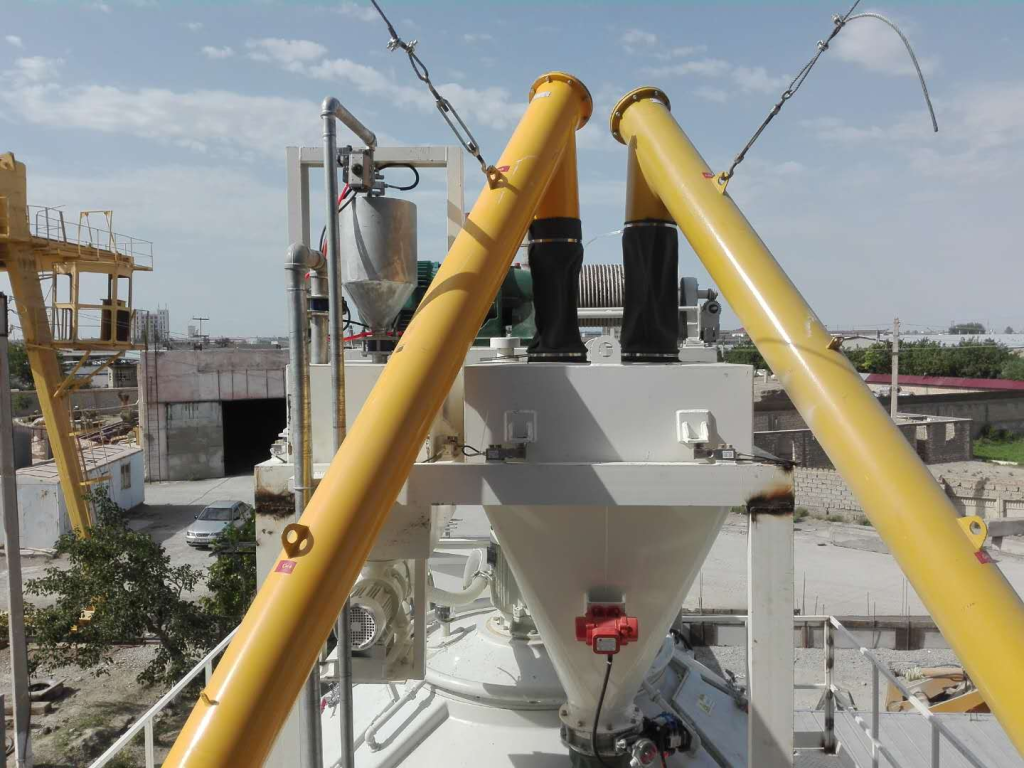

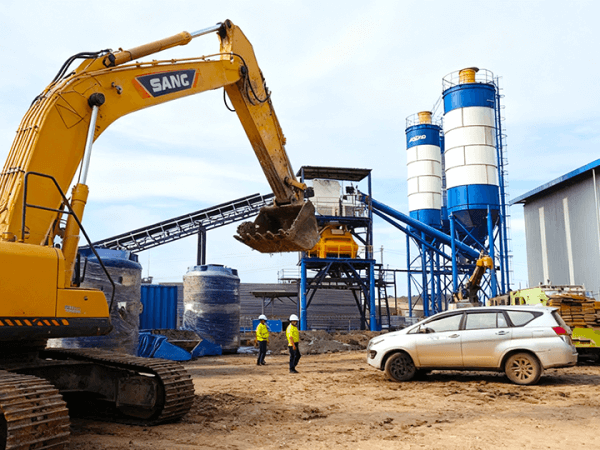

5. Cement Screw (unit that carries the cement from the cement silo to the cement scale)
6. Cement -Water-Additive Scales (units where cement, water and additive are weighed)
7. Mixer (a mixer in which the weighed materials are mixed homogeneously and quickly)
8. Main Chassis (The unit containing the mixer, cement-water-additive scales, has carrier legs under which a transmixer will enter.)

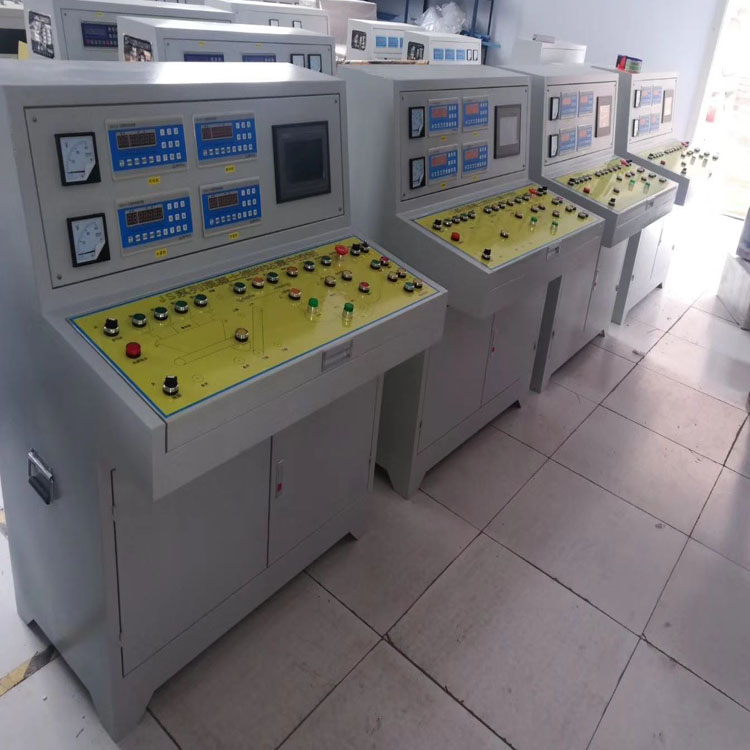

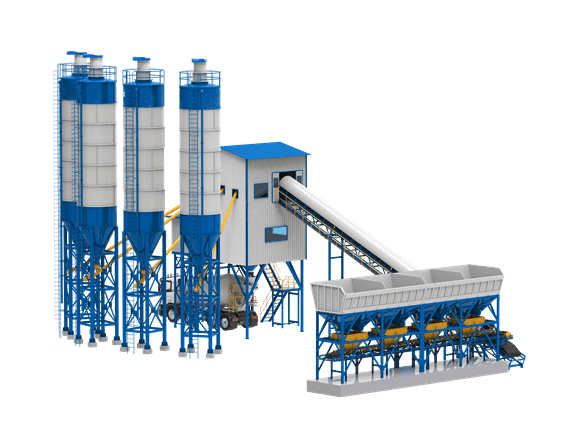

9. Control Cabinet and Computerized Fully Automatic Control System (Concrete is produced automatically according to the concrete recipes entered the system)
10. Air Compressor and Pneumatic Equipment (Produces compressed air required for the operation of the facility)
Advantages
- High Production Capacity and High Performance (capacity up to 240 m³ / h)
- High Configuration Flexibility (Thanks to its flexible structure, configuration options that can meet the needs of the user completely)
- Special Settlement Opportunity Fully Compatible with the Installation Area (settlement alternatives that can fit different installation areas)
- Durable and Long-Life Main Chassis and Aggregate Bunker Design (Robust construction, safe transportation, long life working and weighing minimizes vibrations and provides precise weighing)
- Easy and Fast Maintenance Advantage (Wide maintenance platforms, easy and safe access to the main parts and weighing scales of the mixer, special scale solid upper platform)
- Special Concrete Production Facility (RCC, concrete parquet, concrete pipe, prefabricated element production)
- Age Type, Dry Type; Wet & Dry Type Concrete Production Facility
Working principle
The aggregate is discharged into the aggregate measuring hopper through the discharge door of the aggregate bin at the batching station for measurement. After measurement, it is unloaded onto a far rotating flat belt, which is sent to the inclined belt conveyor. The inclined belt conveyor then transports the aggregate to the waiting hopper at the top of the mixer for instructions. At the same time, cement and fly ash are transported to their respective measuring hoppers by screw conveyors for measurement. Water and admixtures are pumped to their respective measuring hoppers by water pumps and admixture pumps for measurement. After the various materials are measured, the control system sends instructions to start sequentially feeding them into the mixer for mixing. After mixing is completed, the discharge door of the mixer is opened to unload the concrete into the mixing and transportation through the discharge hopper, and then enter the next working cycle.

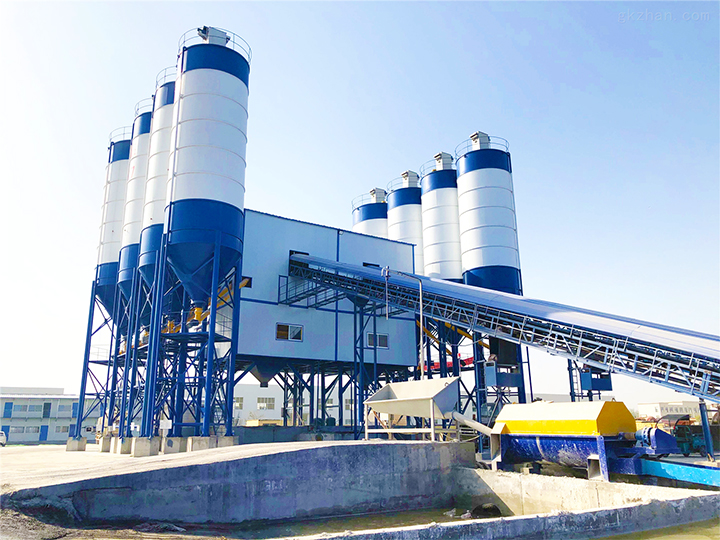

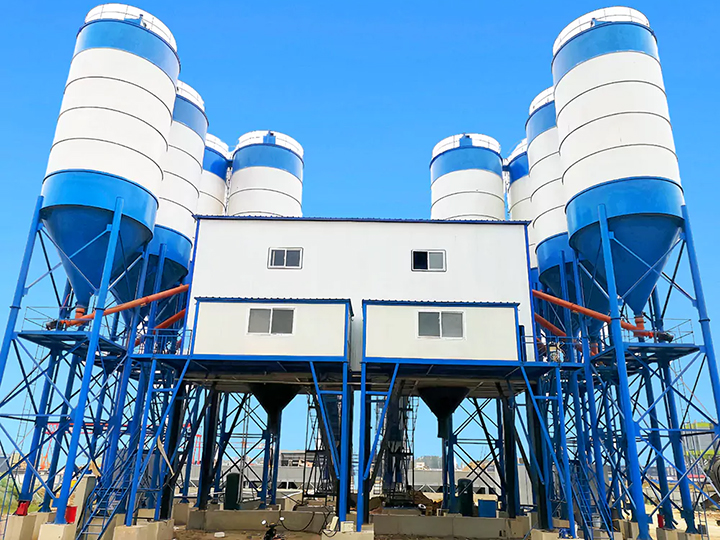

Specification
| Whole station section | Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS180 | HZS240 |
| Theoretical productivity (m ³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 | 240 | |
| Standard discharge height (m) | 1.5-3.8 | 1.6-3.8 | 2.7-3.8 | 3.8 | 2.7-3.8 | 3.8 | 4 | 4 | 4.2 | |
| Work cycle time (S) | 72 | 72 | 72 | 60 | 72 | 60 | 60 | 60 | 180 | |
| Dimensions (mm) (length, width, height) | 11693×13060×17245 | 12922×13000×17245 | 14950×17840×17245 | 36500×11300×20400 | 15950×18840×17245 | 51093×19100×21600 | 51093×19100×21600 | 51093×19100×21600 | 56000×22000×21000 | |
| Total installed capacity (kw) | 50.25 | 75 | 115 | 105 | 120 | 145 | 210 | 260 | 330 | |

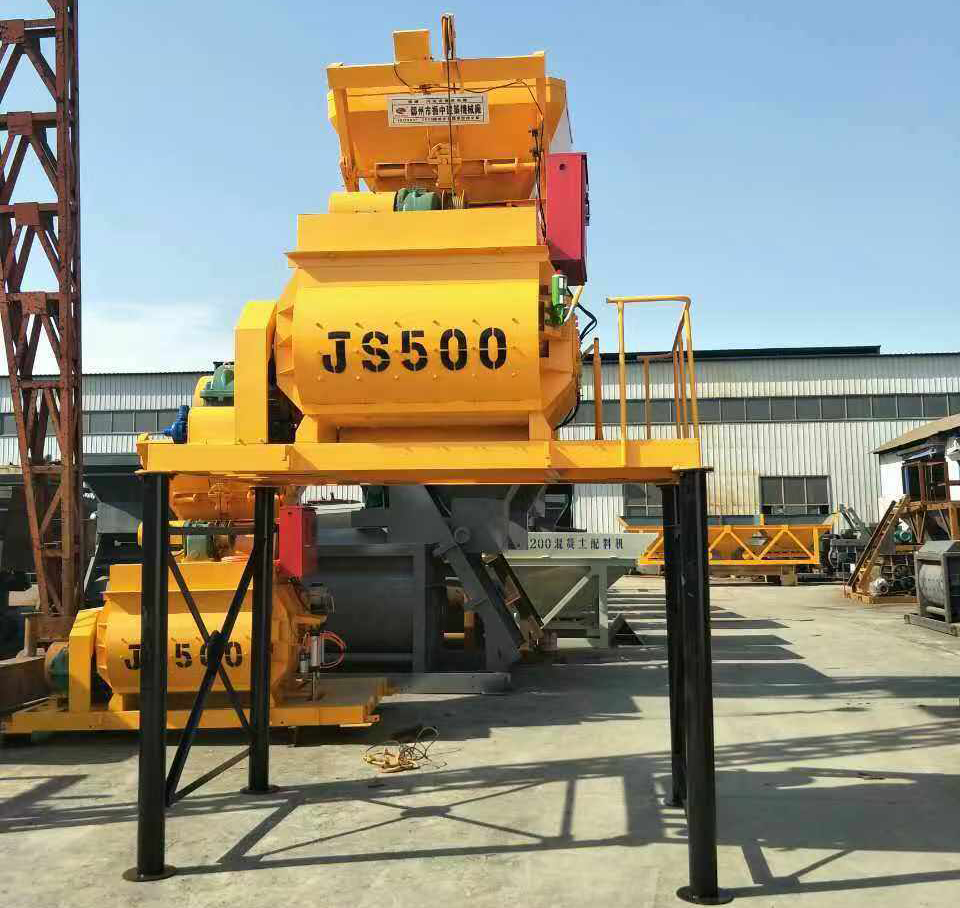

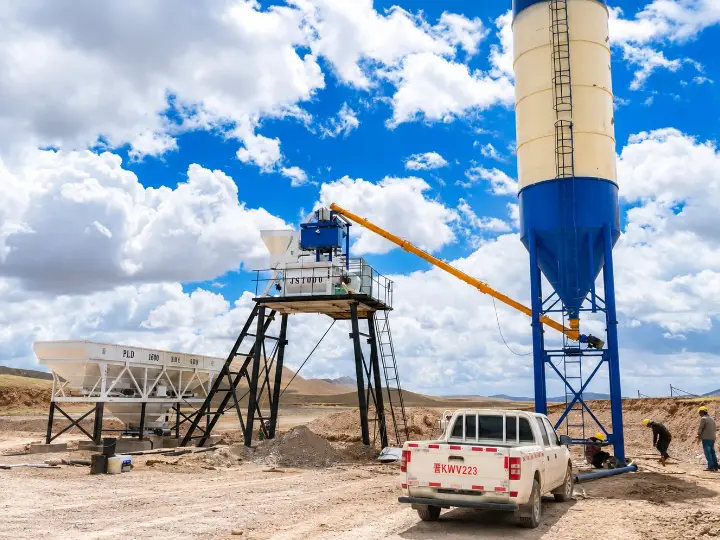

| Blender section | Model | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | JS2000 | JS3000 | JS4000 |

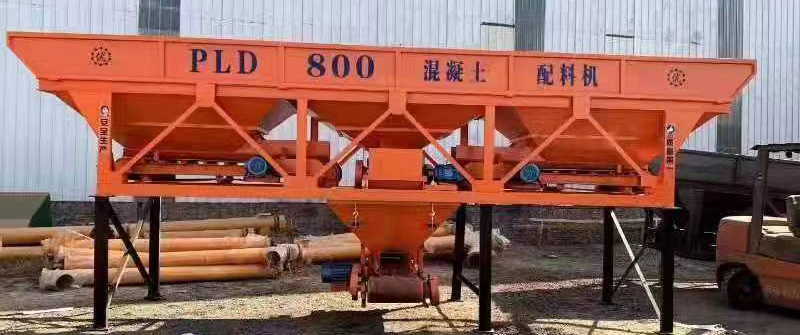

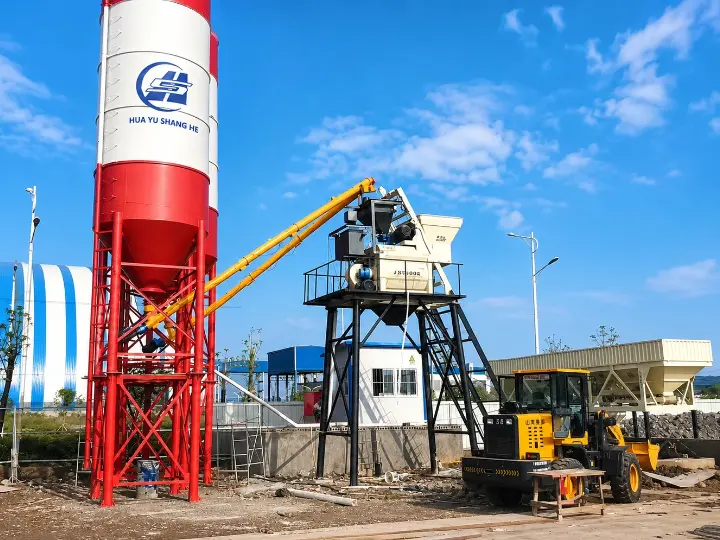

| Ingredient machine section | Model | PLD800 | PLD1200 | PLD1600 Single Scale | PLD1600 Pneumatic Scale | PLD2400 | PLD2400 | PLD3200 | PLD4800 | Ground warehouse style |
| Pneumatic system | Air compressor model | 1.0-7 | 1.0-7 | 1.0-7 | 1.5-7 | 1.0-7 | 1.8-7 | 1.8-7 | 1.8-7 | 1.8-7 |
| Rated displacement (m ³/min) | 1.67 | 1.67 | 1.67 | 1.67 | 1.85 | 1.67 | 1.67 | 1.67 | 1.67 | |
| Rated exhaust pressure (MPa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| Motor power (kw) | 5.5 | 5.5 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 | 18.5 | |
| Weighing system | Sand and gravel measurement accuracy range (kg) accuracy | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Cement measurement accuracy range (kg) accuracy | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Water measurement accuracy range (kg) degree | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Additive measurement accuracy range (kg) degree | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% |
