Introduction
Compact, Powerful and Versatile Skid Steer Loader for Multiple Applications

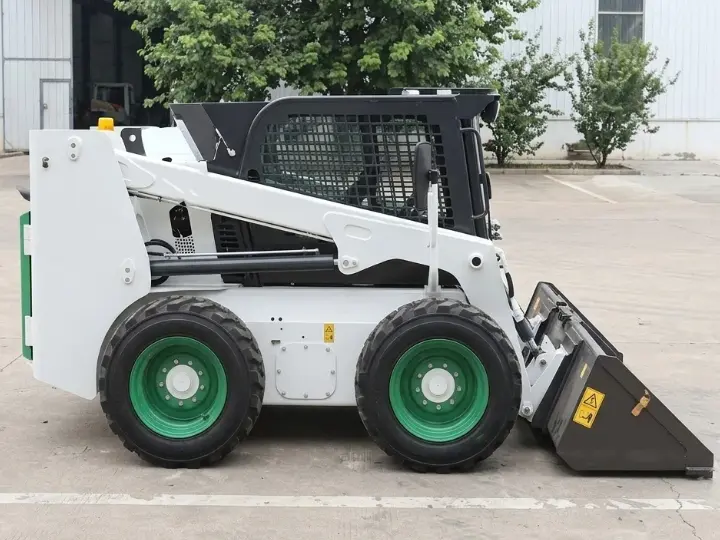

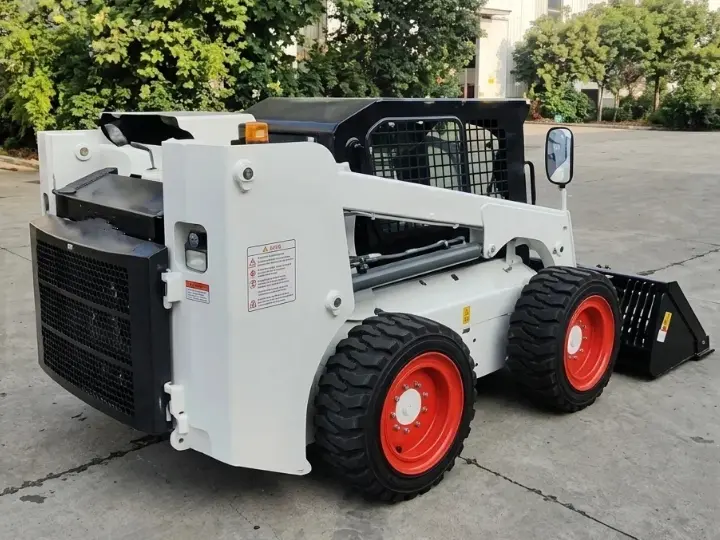

Model 750D Special Skid Steer Loader is a versatile multi-functional engineering machine designed for various demanding working environments. Featuring a compact wheeled chassis and skid steering system, it achieves flexible turning by controlling the different wheel speeds on both sides, allowing smooth operation in limited spaces.
With excellent maneuverability, strong adaptability, and multi-purpose capabilities, the Model 750D is ideal for construction, landscaping, agriculture, municipal projects, and material handling applications. It is especially suitable for narrow work areas, uneven terrains, and job sites where frequent changes of attachments and working tasks are required.
Compact, efficient, and highly flexible, the Model 750D provides an ideal solution for customers looking for a reliable multi-purpose skid steer loader.
- imported multi-way valve
- imported motor
- suitable for use in working conditions below 1.7 meters, port holds, mining tunnels, shipbuilding, and material cleaning.
Why Choose Us
- Powerful Engine & Reliable Performance
The Model 750D skid steer loader is powered by a durable diesel engine that provides strong power output and excellent fuel efficiency. The optimized engine system ensures stable operation under heavy-duty working conditions and reduces maintenance costs.
2. High-Efficiency Hydraulic System
The advanced hydraulic system provides smooth operation, strong breakout force, and excellent attachment compatibility. Operators can quickly switch between different attachments to complete various tasks, improving working efficiency and reducing equipment investment.
3. Compact Design for Narrow Spaces
With a compact body design and flexible steering system, the 750D skid steer loader can operate efficiently in confined areas such as urban construction sites, farms, warehouses, and landscaping projects.
4. Comfortable Operator Experience
The spacious cab design provides excellent visibility and a comfortable working environment. Easy-to-use controls allow operators to complete tasks with less fatigue during long working hours.
5. Multi-Functional Attachment Compatibility
The skid steer loader supports a wide range of attachments, including:
- Bucket
- Pallet Fork
- Auger
- Hydraulic Breaker
- Grapple
- Trencher
- Snow Blade
- Sweeper
One machine can perform multiple jobs, making it a cost-effective solution for different industries.
Applications
The 750D skid steer loader is widely used in:
- Construction projects
- Road maintenance
- Landscaping
- Agriculture and farming
- Forestry operations
- Warehouse material handling
- Municipal engineering
- Mining and quarry applications
- Snow removal
Its versatility and compact size make it suitable for both large construction companies and small contractors.
Key Features
✔ Powerful diesel engine with reliable performance
✔ Compact size and excellent maneuverability
✔ High hydraulic efficiency for various attachments
✔ Strong lifting capacity and breakout force
✔ Easy operation and low maintenance cost
✔ Suitable for multiple industries and working conditions
✔ Durable components for long service life
Specifications
| General | 1 | Model | 750D |
| 2 | Rated capacity | 860kg | |
| 3 | Rated flow | 75 L/min | |
| 4 | High flow | — | |
| 5 | Discharge height | 2068 mm | |
| 6 | Discharge distance | 405 mm | |
| 7 | Power type | Diesel | |
| 8 | Control type | Manual Control | |
| Dimensions | 9 | Overall length with bucket | 3390 mm |
| 10 | Overall length without bucket | 2610 mm | |
| 11 | Overall width with bucket | 1966 mm | |
| 12 | Overall width without bucket | 1926 mm | |
| 13 | Overall height | 1575 mm | |
| 14 | Max. operating height | 3610 mm | |
| 15 | Front turning radius | 2058 mm | |
| 16 | Front turning radius without attachments | 1262 mm | |
| 17 | Rear turning radius | 1588 mm | |
| 18 | Wheel base | 1195 mm | |
| 19 | Tread | 1641 mm | |
| 20 | Max. Speed | 11.2 km/h | |
| 21 | Max. Load | 1720 kg | |
| 22 | Lifting type | Radius | |
| 23 | Bucket capacity | 0.44 m³ | |
| 24 | Total weight with bucket | 2900 kg | |
| Engine | 25 | Engine model | 498BG engine |
| 26 | Power | 45 kw | |
| 27 | Rated speed | 2500 rpm | |
| 28 | displacement | 3.168 L | |
| 29 | Number of cylinder | 4 | |
| Tire | 30 | Tubeless tire | 12-16.5 |
