Shanghe Concrete Mixer

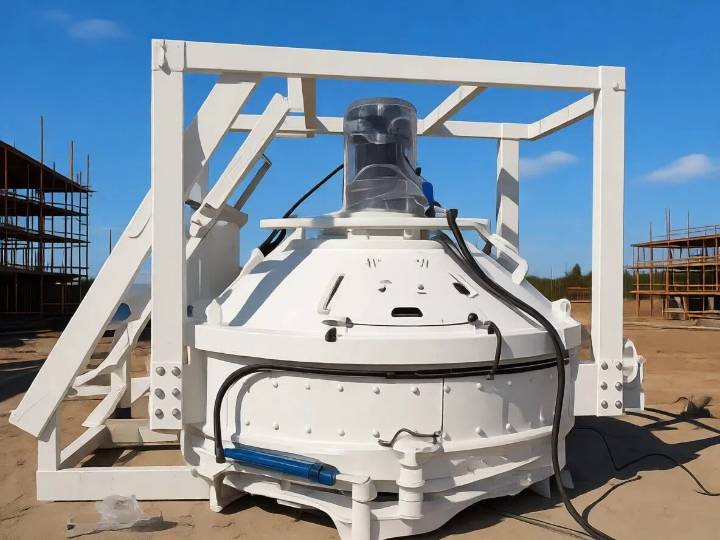

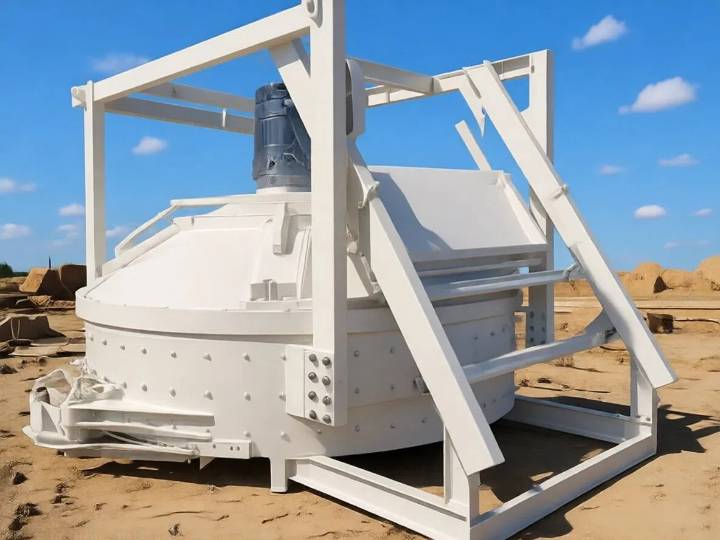

The planetary vertical shaft concrete mixer is an industrial forced-action mixer distinguished by its unique “planetary” motion. This mechanism drives the mixing tools to rotate around both the central axis and their own axes, ensuring an exceptionally thorough and homogenous blend. This design eliminates any dead zones within the mixing chamber, making it particularly effective for difficult-to-mix materials such as high-performance and precast concrete, refractory mixes, ceramics, and glass compounds.
Advantages
Superior Mix Quality: The dense, overlapping mixing paths guarantee high homogeneity by eliminating dead zones, ensuring complete and even distribution of all components from aggregates to admixtures.
Broad Material Compatibility: Its robust and efficient action handles a wide spectrum of materials, including standard and precast concrete, refractory mixes, ceramics, glass compounds, and solid waste.
Engineered for Longevity: Critical wear parts like blades, liners, and seals are constructed from high-wear-resistant materials (e.g., Ni-hard cast iron, Hardox steel) to withstand abrasive materials and extend service life.
Space-Efficient Design: The vertical configuration offers a compact footprint, facilitating integration into fixed production plants, mobile batching units, and limited on-site spaces.
Operational Efficiency: Designed for practicality, features include large, safely interlocked access doors for easy maintenance, and efficient hydraulic discharge systems with optional multiple gates for rapid material evacuation.
Application
Building Materials & Precast Concrete
- Precast Elements: Essential for producing high-quality, consistent prefabricated components such as hollow-core slabs, paving stones, pipes, and tunnel segments.
- Advanced Concrete: Specifically designed to handle the rigorous mixing requirements of Ultra-High Performance Concrete (UHPC) and fiber-reinforced concrete, critical for landmark bridges and high-rise structures.
Industrial Production
- Refractory Materials: Used extensively in manufacturing heat-resistant castables, fire bricks, and taphole clays for furnaces and kilns.
- Raw Material Processing: Applies to mixing batches for glass production (silica and additives), advanced ceramics, and various chemical compounds.
Environmental & Recycling
- Waste Treatment: Employed in recycling construction and demolition waste into new building products and in solidifying hazardous waste with stabilizing binders.
Working Principle
The mixer’s action is driven by a central planetary gearbox. This system powers mixing arms, or “stars,” to perform two simultaneous motions:
- Revolution: The arms revolve around the central vertical shaft, covering the entire circumference of the stationary mixing pan.
- Rotation: The blades attached to each arm rotate at high speed on their own independent axes.
This compound, counter-current planetary motion ensures complete 3D mixing coverage. Every particle of aggregate, cement, water, and additive is subjected to intense shearing, folding, and turning, breaking down clumps and achieving homogeneity upwards of 99% in a short cycle time. Integrated scrapers on the arms and pan floor prevent material buildup, guaranteeing no mixing dead zones.
Key Components & Functions
- Drive System: An electric motor coupled with a high-torque planetary gear reducer generates the dual-rotation motion.
- Mixing System: Consists of a central hub, streamlined mixing arms (designed to prevent shaft clumping), and wear-resistant blades—often made of hardened steel or Ni-hard cast iron.
- Discharge System: One to three hydraulically or pneumatically operated gates at the pan bottom allow the paddles to scrape the mix out rapidly and completely by gravity.
- Auxiliary Systems: Integrated high-pressure spray pipes ensure uniform water/admixture distribution and facilitate automated cleaning.
Advantages Over Traditional Mixers
| Feature | Planetary Vertical Shaft Mixer | Traditional Mixers (Drum/Twin-Shaft) |
|---|---|---|
| Mixing Efficiency | Up to 50% faster cycle times due to intense, full-coverage action. | Longer mixing cycles required for similar homogeneity. |
| Mix Quality & Versatility | Superior for UHPC, fiber-reinforced, colored, and stiff mixes; ensures perfect consistency. | May struggle with high-fiber, dry, or specialty mixes, risking segregation or poor homogenization. |
| Sealing & Maintenance | Top-entry vertical shaft eliminates seal wear and slurry leakage common at horizontal shaft ends. | Horizontal shaft seals are prone to wear and leakage under abrasive conditions. |
| Footprint & Integration | Compact vertical design saves floor space, ideal for mobile plants or tight production lines. | Often requires a larger operational footprint. |
Specification
| Model | MP330 | MP500 | MP750 | MP1000 | MP1500 | MP2000 | MP2500 | MP3000 |
| Output Capacity (L) | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Input Capacity (L) | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Input Mass (kg) | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Mixing Power (kw) | 15 | 18.5 | 30 | 37 | 55 | 75 | 90 | 110 |
| Discharge Power (kw) | 2.2 | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 4 |
| Lifting Power (kw) | 4 | 4 | 7.5 | 11 | 15 | 22 | — | — |
| Skipper Capacity (L) | 580 | 870 | 1300 | 1740 | 2610 | 3480 | — | — |
| Skipper Mass (kg) | 870 | 1305 | 1950 | 2610 | 3615 | 5220 | — | — |
| Skipper Speed (m/s) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | — | — |
| Weight (kg) | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 |
| Dimension (mm) | 1910 * 1590* 1747 | 2220* 2071* 1880 | 2581* 2336 * 2195 | 2891* 2602* 2217 | 3223* 2902* 2425 | 3625*3230* 2630 | 2893* 3550* 2695 | 3893* 3550* 2975 |
