Description

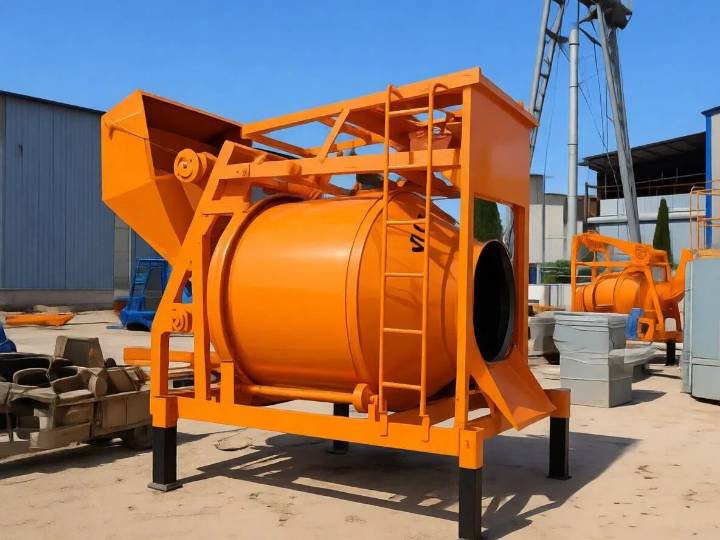

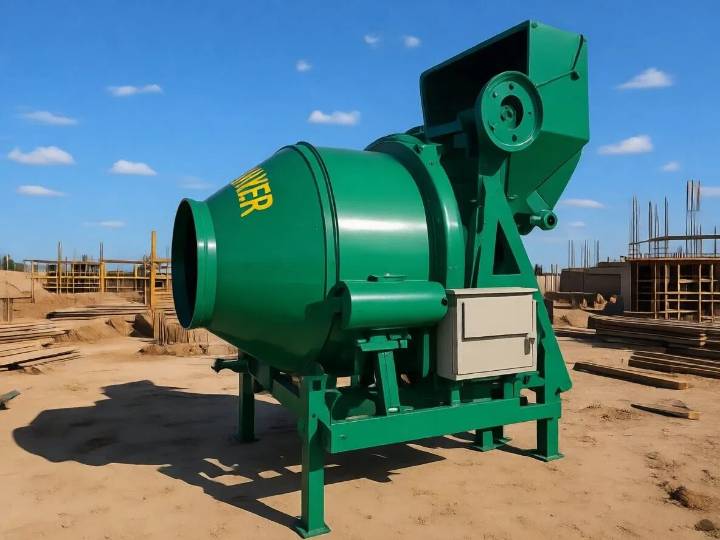

The JZC series climbing bucket concrete mixer is available in both automatic (twin-motor) and semi-automatic (single-motor) configurations. The automatic type features an electrically controlled hopper and drum movement, while the semi-automatic version uses manual handle operation. It can be powered by either an electric motor or a diesel engine to suit various construction site conditions.
This model offers a compact design, smooth operation, stable transmission, and user-friendly controls, delivering high mixing quality and productivity. It efficiently mixes plastic and semi-hard concrete, making it ideal for construction sites, roads, bridges, hydropower projects, and small to medium-sized precast component factories.
Application
The JZC series concrete mixer is a versatile machine suitable for various applications:
- Residential Construction: Pouring slabs, footings, and foundations for homes and small buildings
- Infrastructure Projects: Building roads, bridges, tunnels, and other civil engineering works
- Precast Manufacturing: Producing standardized components like blocks and paving stones
- Masonry & Repair Work: Mixing mortar and grout for construction and maintenance tasks
This compact, efficient mixer meets diverse construction needs with reliable performance.
Key Features
Capacity: Available in models like JZC350 (0.35m³) and JZC500 (0.5m³), with an actual output of about 80% of the nominal drum volume.
Mixing Mechanism: Utilizes a gravity-type mixing process where materials tumble inside a rotating double-conical drum; concrete is discharged by reversing the drum’s direction.
Mobility: Designed for portability, mounted on a wheeled chassis for easy on-site movement or towing between locations.
Power Source: Offers flexible power options:
Electric Motor: Ideal for sites with grid power; operates quietly with zero emissions (typically requires 3-phase 380V).
Diesel Engine: Provides mobility and independence for remote sites without electricity.
Durability: Built with a robust design, featuring high-strength steel drums and a reinforced chassis for long-lasting stability.
Specification
| Specifications | JZC250 | JZC350 | JZC500 | JZC750 |
|---|---|---|---|---|
| Discharging Volume (L) | 250 | 350 | 500 | 750 |
| Charging Volume (L) | 320 | 560 | 800 | 1200 |
| Productivity (m³/h) | 6-8 | 10-14 | 18-20 | 20-22 |
| Mixing Drum Rotational Speed (r/min) | 17 | 14 | 13 | 13 |
| Maximum Aggregate Size (mm) | 60 | 60 | 60-80 | 60-80 |
| Accuracy of Water Supply | ≤2% | ≤2% | ≤2% | ≤2% |
| Power Source | Electric/Diesel Engine | Electric/Diesel Engine | Electric/Diesel Engine | Electric/Diesel Engine |
| Mixing Motor Power (Kw) | 4 | 5.5 | 11 | 15 |
| Lifting Motor Power (Kw) | 4 | 4.5 | 5.5 | 7.5 |
| Water Pump Motor Power (Kw) | 0.55 | 0.55 | 0.75 | 1.1 |
| Type Specification | 6.5-16 | 6.5-16 | 7.5-16 | 7.5-16 |
| Maximum Towing Speed (km/h) | 20 | 20 | 20 | 20 |
| Overall Dimensions (mm) | 2260×1990×2750 | 2766×2140×3000 | 5226×2200×5460 | 6116×2056×6060 |
| Weight (Kg) | 1300 | 1950 | 3100 | 4200 |
