Introduction
Efficient Horizontal Cement Feeding Solution for Cement Silos and Concrete Plants
A Horizontal Cement Feeder is a reliable material conveying equipment designed for the automatic transportation of cement from cement silos to concrete batching plants, mortar plants, and other cement processing systems. With a compact horizontal structure, stable feeding performance, and easy installation, it provides an efficient solution for cement handling in various construction applications.
Our horizontal cement feeder is widely used with cement silos, concrete batching plants, dry mortar production lines, and industrial material storage systems, helping improve feeding efficiency and reduce manual operation costs.
What Is a Horizontal Cement Feeder?
A Horizontal Cement Feeder is a mechanical conveying device that transfers cement powder horizontally from storage equipment to the required discharge point. It is commonly installed at the bottom or side of cement silos to ensure continuous and controlled cement supply.
Compared with traditional vertical conveying methods, the horizontal cement feeder offers advantages such as:
- Compact structure
- Easy installation and maintenance
- Stable cement conveying performance
- Low energy consumption
- Flexible layout options
It is an ideal choice for construction companies, concrete producers, and industrial users who need reliable cement feeding equipment.
Features
1. Efficient Cement Conveying
The horizontal cement feeder adopts an optimized conveying design to ensure smooth transportation of cement powder. It can maintain a continuous cement supply for concrete production and improve overall plant productivity.
2. Compact and Space-Saving Design
The horizontal layout allows flexible installation in limited spaces. It can be easily connected with cement silos and batching systems, making it suitable for both new projects and equipment upgrades.
3. Stable Performance
Manufactured with high-quality components, the feeder provides reliable operation under different working conditions. The sealed conveying structure helps prevent cement leakage and reduces dust pollution.
4. Easy Maintenance
The simple structure makes inspection and maintenance convenient. Wear parts can be replaced quickly, reducing downtime and improving equipment availability.
5. Customized Solutions Available
Different sizes, capacities, and configurations can be customized according to customer requirements, including cement silo type, conveying distance, and production capacity.
Applications
The Horizontal Cement Feeder is widely used in:
1. Concrete Batching Plants
It provides stable cement supply for concrete mixing operations, improving production efficiency.
2. Cement Silos
It works as an auxiliary feeding system for cement storage and discharge.
3. Dry Mortar Plants
The feeder ensures accurate cement transportation for mortar production.
4. Construction Projects
Suitable for infrastructure projects, commercial buildings, roads, bridges, and other construction applications.
Advantages
Choosing a horizontal cement feeding system can bring several benefits:
- Reduce manual cement handling
- Improve cement feeding accuracy
- Increase concrete production efficiency
- Minimize dust emissions
- Save installation space
- Lower operating costs
Technical Parameters
| Model | WG5 | WG8 | Unit |
|---|---|---|---|
| Tank volume | 5 | 8 | m³ |
| Power | 18.5 | 18.5 | kW |
| Blow-off efficiency | >1.2 | >1.2 | t/min |
| Remain rate | <0.4 | <0.4 | % |
| Operating pressure | 0.19 | 0.19 | MPa |
| Rated transmission capacity | 70 | 90 | kg/h |
| Transport distance (vertical) | >50 | >50 | meter |
| Power source | 380V, 50Hz, 3 phase | – | |
| Weight | 1600 | 1800 | kg |
| Overall dimension (L×W×H) | 2600×2000×2500 | 3200×2300×2630 | mm |

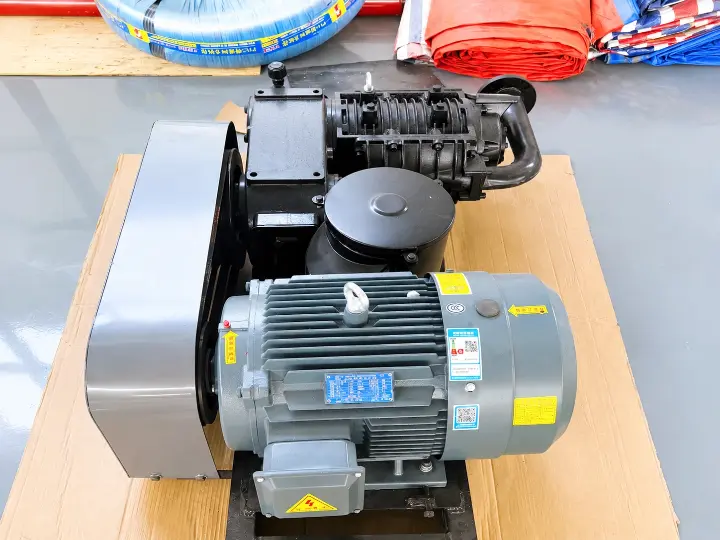

| Pneumatic source (air compressor) | |||
| Compressor model | WB5.4/2 | WB5.4/2 | – |
| Discharge capacity | 5.2 | 6 | m³/min |
| Pressure rating | 0.2 | 0.2 | MPa |
| Air supply weight | 500 | 500 | kg |
| Air supply dimension (L×W×H) | 1300×714×916 | 1300×714×916 | mm |
| Motor | Y180M-4-B3 | Y180M-4-B3 | – |
Why Choose Us?
We provide professional cement handling solutions for global construction and concrete industries.
Our advantages include:
- Professional cement equipment manufacturer
- Customized design according to project needs
- Strict quality control
- Competitive factory price
- Technical support and after-sales service
- Export experience for international markets
Whether you need a cement silo feeding system for a concrete batching plant or a complete cement storage solution, our team can provide a suitable solution.
