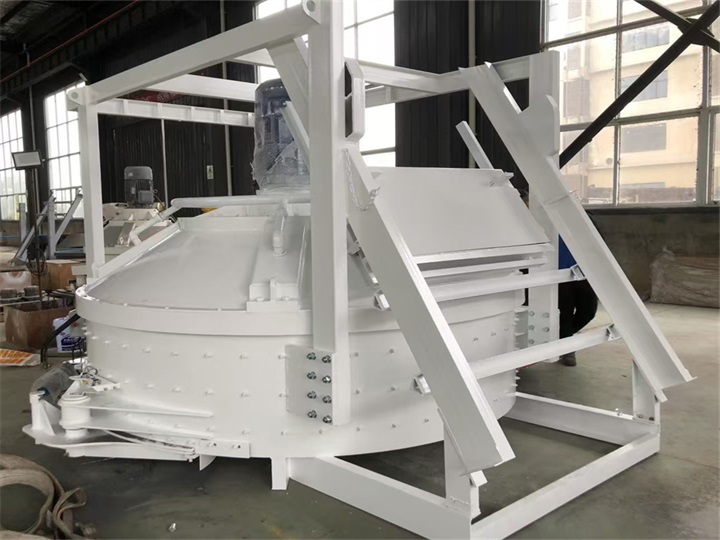

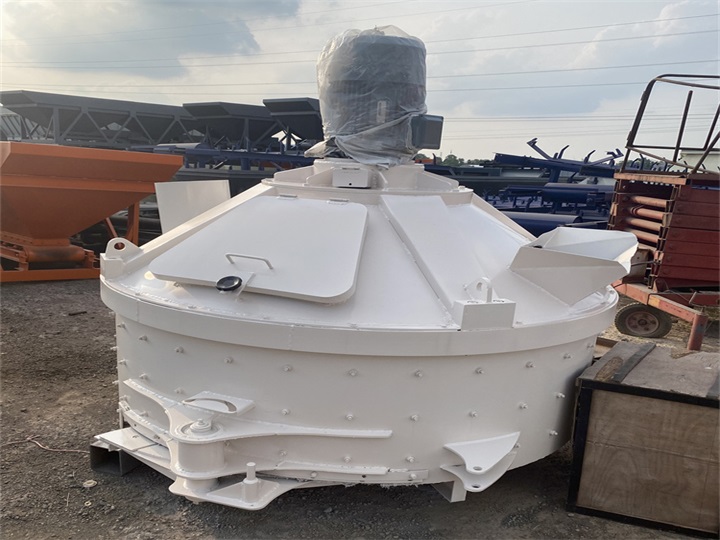

Planetary Mixer Features
Optimum Homogenization of mixing materials.
Adopt special high-strength, high-reliability planetary reducer with patent.
Simple Structure, Simple and Convenient Maintenance.
Flexible Layout, 1-3 unloading doors are optional for different production lines.
Dustproof movable covers assisted by gas springs.
Interlocking device and safety switch on every movable cover.
Interchangeable wear-resistant liners with counter sunk fixing bolts.
All on-board engineering is protected in PVC-coated metal conduits and connected to a heavy-duty aluminum junction box.
Our Advantage
Customized service:Unique top opening design.Position and size of the feeding inlet according to the customer’s needs.
Capacity :50L~1500L
Durable chill cast wear sleeves and paddles
Hard wearing chill cast tiles for wall and floor
Heavy duty discharge door mechanisms
Spring tensioned mixing arms for safety
Motor and gearbox are located on top of the mixer for easy cleaning and maintenance
Specification
| Model | MP330 | MP500 | MP750 | MP1000 | MP1500 | MP2000 | MP2500 | MP3000 |
| Output Capacity (L) | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Input Capacity (L) | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Input Mass (kg) | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Mixing Power (kw) | 15 | 18.5 | 30 | 37 | 55 | 75 | 90 | 110 |
| Discharge Power (kw) | 2.2 | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 4 |
| Lifting Power (kw) | 4 | 4 | 7.5 | 11 | 15 | 22 | — | — |
| Skipper Capacity (L) | 580 | 870 | 1300 | 1740 | 2610 | 3480 | — | — |
| Skipper Mass (kg) | 870 | 1305 | 1950 | 2610 | 3615 | 5220 | — | — |
| Skipper Speed (m/s) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | — | — |
| Weight (kg) | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 |
| Dimension (mm) | 1910 * 1590* 1747 | 2220* 2071* 1880 | 2581* 2336 * 2195 | 2891* 2602* 2217 | 3223* 2902* 2425 | 3625*3230* 2630 | 2893* 3550* 2695 | 3893* 3550* 2975 |
