Description

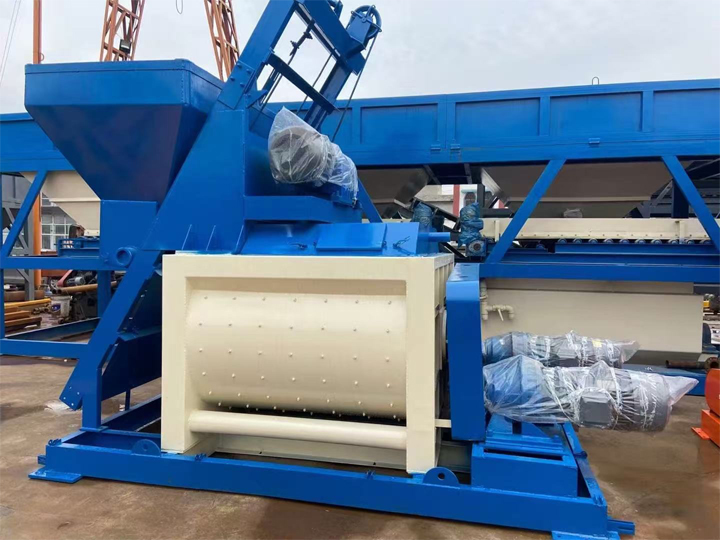

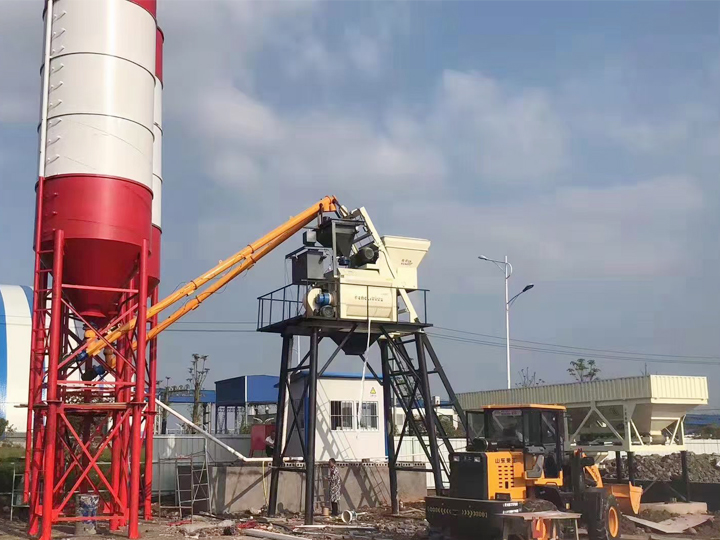

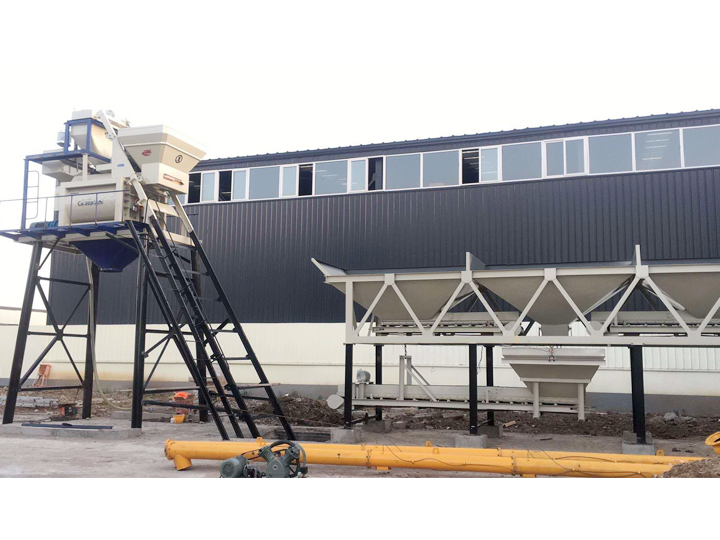

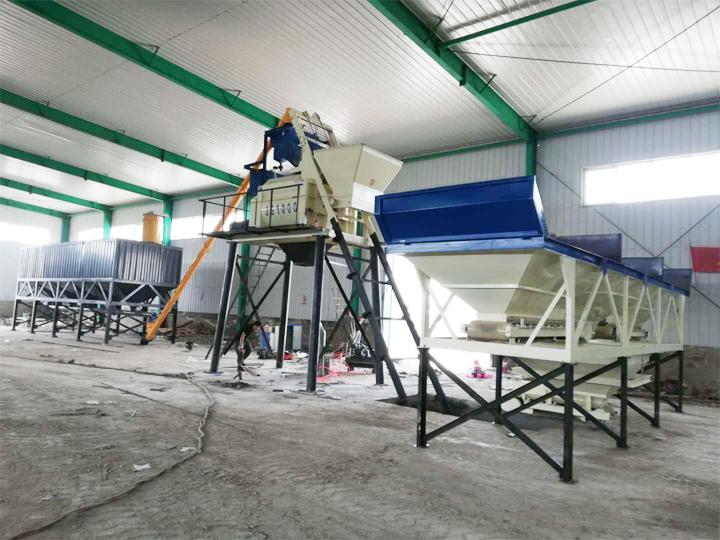

JS1000 forced concrete mixer, also known as 1 cubic meter mixer, is a series of double horizontal axis forced concrete mixers with a theoretical production rate of 60 cubic meters per hour. It is mainly used as a mixed host in HZS50 and HZS60 mixing stations. The JS1000 forced mixer can be used alone or together with different models of PLD series batching machines to form a simple concrete mixing plant.
It can be used for mixing dry hard plastic lightweight aggregate concrete and various mortars and mortars. Suitable for various construction projects and small and medium-sized prefabricated component factories. The JS1000 double horizontal axis forced concrete mixer consists of feeding, mixing, unloading, water supply, electrical, cover, chassis, leg gears, and other parts.
The JS1000 concrete mixer is a spiral belt structure with intermittent space formed by mixing blades on two mixing shafts, which produces three-dimensional mixing effects along the radial and axial directions
And it can form a comprehensive effect of pushing, friction, and squeezing materials, thereby achieving high homogeneity mixing effect in a short time and low energy consumption. It is suitable for mixing plastics, dry hard, lightweight aggregate concrete, and various mortars and mortars.
Application
This machine is applied in fields such as road engineering, bridge engineering, construction engineering, hydropower engineering, etc
Suitable for mixing materials such as cement, sand and gravel, mortar, feed, etc
Specification
| Model | JS 750 | JS 1250 | JS 1500 | JS 2000 | JS 3000 | JS 4000 |
| Charging capacity(L) | 1200 | 2000 | 2400 | 3200 | 4800 | 6400 |
| Discharging capacity(L) | 750 | 1250 | 1500 | 2000 | 3000 | 4000 |
| Production capacity(m3/h) | 42 | 75 | 90 | 120 | 180 | 240 |
| Mixing axle rotation speed(r/min) | 29.9 | 29.67 | 26.75 | 23.5 | 23.4 | 22.85 |
| Mixer motor power(kw) | 2*15 | 2*22 | 2*30 | 2*37 | 2*55 | 2*75 |
| Librication oil pump | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| motor power(kw) | ||||||
| Hydraulic system | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| motor power(kw) | ||||||
| Electromagnetism valve | DC24 | DC24 | DC24 | DC24 | DC24 | DC24 |
| power supply(V) | ||||||
| Mixing time(s) | <=40 | <=40 | <=40 | <=40 | <=45 | <=45 |
| No. of mixing arm | 12 | 12 | 16 | 16 | 18 | 22 |
| Max diameter of | 60/80 | 60/80 | 60/80 | 80/120 | 100/150 | 100/150 |
| aggregate(Detritus/ | ||||||
| Pebble) | ||||||
| External dimensions(LxWxH) | 2900x | 3000x | 2900x | 3450x | 3900x | 4500x |
| 2650x | 2750x | 3000x | 3000x | 3300x | 3310x | |
| 2100 | 2100 | 2150 | 2150 | 2230 | 2230 | |
| Transportation dimensions(LxWxH) | 2900x | 3000x | 2900x | 3450x | 3900x | 4500x |
| 2100x | 2100x | 2320x | 2320x | 2600x | 2600x | |
| 2100 | 2100 | 2150 | 2250 | 2230 | 2230 | |
| Entire machine weight(kg) | 5000 | 5300 | 6500 | 7500 | 9300 | 11800 |
