Features
Adopt high-quality steel pipe withgood integral rigidity
Inlet equipped with high qualitymiddle-hoisting bearing and tail bearingSufficient spare parts with completespecification.
Adopt double-pitch paddles which decrease the compression degree of material when being transported, and avoid blocking.
Large stock for common diameter of 165,219,273, 323 and 407, and dimension & angle can be customized according to your requirement.

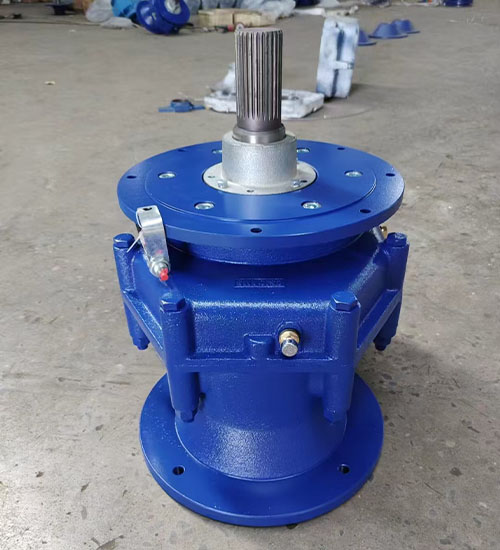

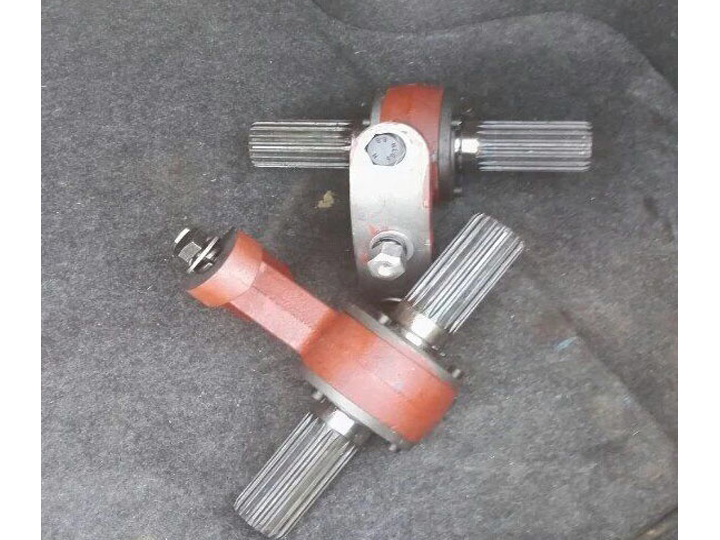

Adopt high-quality reducer with, large torque and low noise.4. Adopt optional universal ball joint, which facilitates installation, adjustment and steering
Assembled by standard parts and components, which makes it convenient for transportation.
Our Advantage
The equipment structure is simple, low cost, reliable, easy to maintain, in addition, its occupation area is small.
Stable operation and uniform feeding in the conveying material.
In the direction of transportation, reverse transportation and simultaneous transportation can be realized.
Specification
| Model | LSY200 | LSY250 | LSY300 | |
| Screw diameter(mm) | 188 | 238 | 290 | |
| Speed(r/min) | 209 | 200 | 175 | |
| Case Diameter(mm) | φ219 | φ273 | φ325 | |
| Transporting cement capacity(t/h) | 38-58 | 55-80 | 80-110 | |
| Length(m) | 03-15 | 04-15 | 06-15 | |
| Working angle(°) | 0-45 | 0-45 | 0-60 | |
Electric Motor | Type | Y132M-4 | Y160M-4 | Y180M-4 |
| Power(Kw)L>7-Maximum | 7.5 | 11 | 18.5 | |
| Type | Y160M-4 | Y160L-4 | Y180L-4 | |
| Power(Kw)L>7-Maximum | 05-11 | 7.5-15 | 11-22 | |
