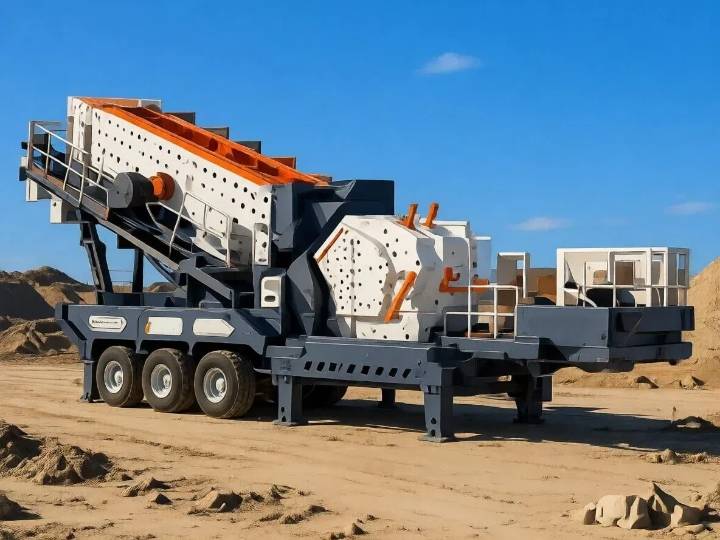

Shanghe Wheel Mobile Crushing Plant
Flexible & Cost-Effective Crushing Solution for Multiple Job Sites–High-Efficiency Wheel-Mounted Mobile Crushing Plant | Rapid On-Site Production
A wheel mobile crushing plant is a portable system mounted on a wheeled chassis, primarily designed for fast transportation and rapid setup. In addition to this flexibility, we equip the unit with your preferred jaw, cone, impact crusher, or screening unit to precisely tailor its performance to your unique job site requirements.
Compared with tracked mobile crushing plants, wheel mobile crushing plants are more suitable for flat terrain, short-term projects, and frequent relocation, especially where road transportation efficiency is critical.
Mobility Meets Economy: The Wheel-Mounted Advantage
When project timelines are tight and site locations change frequently, our Wheel-Mounted Mobile Crushing Plant provides the agility you need. Our wheel-mounted plants prioritize high-speed road travel and efficient site-to-site transport, offering a faster, more flexible alternative to heavy, static tracked units.
Our integrated design—featuring a feeder, crusher, and discharge conveyors on a single trailer-ready chassis—dramatically accelerates your setup and breakdown cycles. You achieve higher productivity by keeping your equipment crushing on-site instead of idling on the road.
Key Advantages of Wheel Mobile Crushing Plant
- Easy Transportation
Designed for highway towing, reducing logistics cost and relocation time. - Fast Installation & Startup
No foundation required; ready for operation shortly after arriving on site. - Flexible Configuration
We provide an adaptable system that lets you pair jaw, cone, or impact crushers with your choice of screening unit, ensuring maximum performance for every project - Lower Investment Cost
Ideal choice for contractors and small to medium crushing projects. - Stable & Reliable Operation
High-quality components ensure continuous and safe crushing performance.
Which Projects Benefit Most?
Infrastructure Upgrades: Perfectly suited for projects requiring short-term crushing power in accessible areas.
Road Construction & Maintenance: Perfect for processing recycled asphalt (RAP) and road base directly along the project path.
Urban Recycling Yards: You can efficiently process concrete and brick debris with this plant—perfect for flat-site jobsites where you prefer to centralize your material processing.
Seasonal Quarrying: Easily moved between different small-scale quarries to balance production loads.
Wheel Mobile Crushing Plant Configurations
- Wheel Mobile Jaw Crushing Plant (Primary Crushing)
- Wheel Mobile Cone Crushing Plant (Secondary / Tertiary Crushing)
- Wheel Mobile Impact Crushing Plant (Recycling & Limestone)
- Wheel Mobile Crushing and Screening Plant (Closed Circuit System)
Customized solutions are available based on material type, capacity, and final product size.
Wheel Mobile vs Tracked Mobile Crushing Plant
| Item | Wheel Mobile Crushing Plant | Tracked Mobile Crushing Plant |
|---|---|---|
| Mobility | Highway towing | Self-propelled |
| Setup Time | Very short | Short |
| Terrain | Flat / road-accessible | Rough terrain |
| Investment Cost | Lower | Higher |
| Best Use | Short-term & urban projects | Quarry & mining |
How It Works: The Mobile Circuit
- Transport: Our design enables you to tow the entire plant to any job site with a standard truck, streamlining your logistics.
- Hydraulic Deployment: The system automatically stabilizes on its hydraulic legs and extends its conveyors into the operating position, ensuring rapid setup at any job site.
- Controlled Processing: Material is fed into the crushing unit (Jaw, Impact, or Cone) where it is reduced to your target size.
- Automatic Stockpiling: The finished aggregate is continuously routed to stockpile conveyors, minimizing manual handling and site footprint.
Specification
| Model | Screen Model | Crusher Model | Max Feeding Size (mm) | Capacity (t/h) | Transport Dimension (mm) |
|---|---|---|---|---|---|
| S-CS75 | 3YZK1848 | CS75 | ≤160 | 59–163 | 12600 × 2800 × 4400 |
| S-CS110 | 3YZK1860 | CS110 | ≤178 | 100–200 | 13800 × 3000 × 4400 |
| S-CS160 | 3YZK2160 | CS160 | ≤188 | 132–253 | 13800 × 3000 × 4400 |
| S-CS220 | 3YZK2160 | CS220 | ≤230 | 215–330 | 14500 × 3000 × 4500 |
| S-Q300 | 3YZK1848 | SQ300 | ≤160 | 105–205 | 12600 × 2800 × 4400 |
| S-Q400 | 3YZK1860 | SQ400 | ≤230 | 235–575 | 13800 × 3000 × 4400 |
| S-Q500 | 3YZK2160 | SQ500 | ≤240 | 304–640 | 14500 × 3000 × 4600 |
| S-H420 | 3YZK1848 | SH420 | ≤240 | 85–170 | 12600 × 2900 × 4400 |
| S-H430 | 3YZK1860 | SH430 | ≤360 | 120–345 | 13800 × 3000 × 4500 |
| S-H440 | 3YZK2160 | SH450 | ≤450 | 255–605 | 14800 × 3200 × 4600 |
| S-HP100 | 3YZK1860 | SHP100 | ≤140 | 75–140 | 13800 × 2900 × 4300 |
| S-HP200 | 3YZK2160 | SHP200 | ≤185 | 145–250 | 14200 × 3000 × 4500 |
| S-HP300 | 3YZK2160 | SHP300 | ≤230 | 220–440 | 16500 × 3200 × 4600 |
| S-PF1214 | 3YZK1860 | PF1214 | ≤300 | 100–200 | 14500 × 2900 × 4500 |
| S-PF1315 | 3YZK2160 | PF1315 | ≤350 | 130–280 | 15200 × 3000 × 4500 |
| S-PF1320 | 3YZK2460 | PF1320 | ≤500 | 180–400 | 15200 × 3000 × 4500 |
| S-S1860 | — | 3YZK1860 | ≤400 | 65–586 | 10500 × 2700 × 4200 |
| S-S2160 | — | 3YZK2160 | ≤400 | 81–720 | 10500 × 3000 × 4500 |
| S-S2460 | — | 3YZK2460 | ≤400 | 100–810 | 10500 × 3200 × 4500 |
Frequently Asked Questions (FAQ)
Q: What is the main difference between a wheel-mounted and a tracked crusher?
A: A tracked crusher is for rough, off-road terrain and frequent movement within a single large quarry. A wheel-mounted plant is for road-towing between different job sites and is more cost-effective for paved or flat ground operations.
Q: Do I need a special permit to move the wheel-mounted plant?
A: Our models are designed to meet standard road-width and height regulations in most regions. However, we provide detailed transport dimensions to help you verify local transit requirements.
Q: Can I combine multiple wheel-mounted units in a single circuit?
A: Yes. These units are designed to be modular. You can place a wheel-mounted Jaw Crusher for primary reduction and follow it with a wheel-mounted Cone or Impact Crusher for secondary sizing to create a complete, multi-stage processing circuit.
Why Choose Our Wheel Mobile Crushing Plant?
Unmatched Portability: Designed with standard towing dimensions, these plants can be hauled by standard prime movers, eliminating the need for expensive heavy-haul logistics.
Lower Capital Investment: Wheel-mounted configurations typically carry a lower purchase price and maintenance cost compared to complex tracked systems, delivering a faster Return on Investment (ROI).
“Plug-and-Play” Setup: Engineered for rapid deployment, these plants utilize hydraulic leveling and integrated folding conveyors to reach full production capacity in as little as 2 hours.
Ideal for Paved Sites: The tire-mounted design is perfect for flat, paved, or compacted industrial sites, recycling yards, and road construction projects where tracks are unnecessary.
