Shanghe Mobile Jaw Crusher
Efficient & Flexible Crushing Solution for Quarry, Mining and Recycling
A mobile jaw crusher is a portable crushing machine equipped with a jaw crusher, mounted on a crawler or wheeled chassis. It is widely used for primary crushing of hard materials such as granite, basalt, limestone, concrete, and construction waste.
Compared with stationary crushing plants, a mobile jaw crusher offers on-site crushing, lower transportation costs, and greater operational flexibility, making it an ideal choice for quarrying, mining, and recycling projects.
Key Advantages of Mobile Jaw Crusher
- Strong Primary Crushing Ability: Designed to crush large-sized rocks with high efficiency and stable performance.
- Flexible Mobility: Available in crawler-mounted and wheel-mounted versions, easy to move between job sites.
- Compact Structure & Easy Operation: Integrated feeder, crusher, and conveyor reduce installation time and labor costs.
- Low Operating Cost: Energy-efficient design with reduced fuel consumption and maintenance requirements.
- Wide Application Range: Suitable for quarry stone crushing, mining operations, and construction waste recycling.
Mobile Jaw Crusher Applications
- Quarry aggregate production
- Mining stone primary crushing
- Construction and demolition waste recycling
- Infrastructure and road construction projects
Whether working in urban demolition sites or remote mining areas, the mobile jaw crusher delivers reliable and continuous crushing performance.
Crawler vs Wheel Mobile Jaw Crusher
| Type | Features | Best Use |
|---|---|---|
| Crawler Mobile Jaw Crusher | Strong off-road ability, hydraulic drive | Quarry, mining, rough terrain |

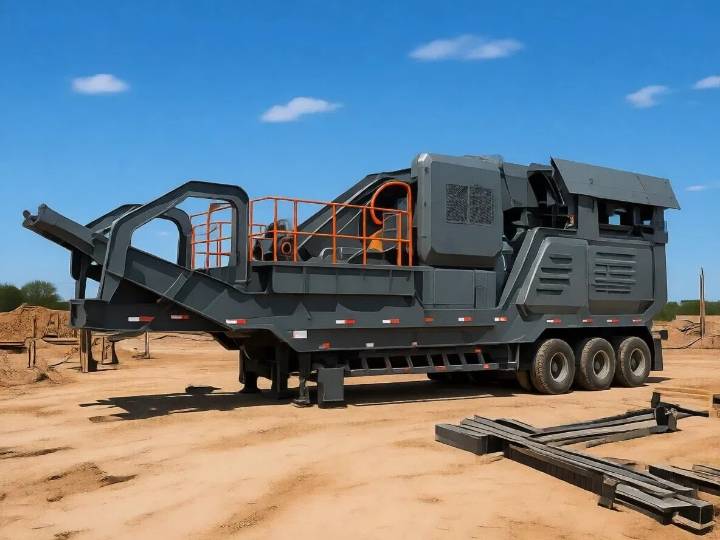

| Wheel Mobile Jaw Crusher | Easy road transportation, lower cost | Construction sites, short-distance projects |
Technical Highlights
- High-strength jaw plate with long service life
- Automatic hydraulic adjustment system
- Integrated control system for safe and easy operation
- Optional diesel or electric power configuration
Custom configurations are available according to material type, output size, and capacity requirements.
How It Works: The Primary Crushing Circuit
Vibrating Feeder Loading: A robust, high-capacity vibrating feeder regulates the material flow, ensuring the jaw chamber is never overloaded or underutilized.
Grizzly Pre-Screening: The integrated grizzly section bypasses fine material before it enters the jaw, which increases capacity and prevents unnecessary wear on the crushing plates.
High-Force Compression: The heavy-duty swing jaw utilizes high-pressure compression to crush even the most abrasive rocks down to your desired discharge setting (CSS).
Continuous Discharge: The crushed aggregate drops directly onto a heavy-duty discharge conveyor, ready for secondary processing or final stacking.
Specification
| Model | Device Configuration | Adjustable Range of Discharge Opening (mm) | Capacity (t/h) | Transport Dimension (mm) |
|---|---|---|---|---|
| SL15L | ZSW3896 + LF150 | 40–100 | 100–200 | 13050 × 2950 × 3100 |
| SL25L | ZSW4211 + LF250 | 50–120 | 200–400 | 12750 × 3000 × 3700 |
| SL35L | ZSW4213 + LF350 | 50–200 | 300–500 | 14360 × 3000 × 3800 |
| SE69L | ZSW3896 + PE69 | 60–125 | 100–180 | 12500 × 2950 × 3000 |
| SC96L | ZSW3896 + SC96 | 60–175 | 120–455 | 13500 × 3400 × 2800 |
| SC106L | ZSW4211 + SC106 | 70–200 | 155–580 | 14400 × 3600 × 3000 |
| SC110L | ZSW1349 + SC110 | 70–250 | 190–625 | 18470 × 6840 × 4700 |
Why Choose Our Mobile Jaw Crusher?
- Proven design for international markets
- Strict quality control and factory testing
- Competitive price with reliable performance
- Professional after-sales service and spare parts supply
Our mobile jaw crushers are exported to multiple countries and trusted by customers for long-term operation in demanding conditions.
Frequently Asked Questions (FAQ)
Q: When should I choose a Jaw Crusher over an Impact Crusher?
A: Choose a Jaw Crusher for primary, hard-rock applications (granite, basalt) where durability and reduction of very large rocks are the priorities. Choose an Impact Crusher for secondary processing when you need high-quality cubical shaping of softer materials like limestone or recycled asphalt.
Q: Can your mobile jaw crusher be operated by one person?
A: Yes. Our latest models feature centralized, remote-controlled operation. A single operator can adjust the settings, monitor engine performance, and maneuver the tracks from a safe, remote location.
Q: How do you reduce maintenance costs on these machines?
A: We use high-manganese, reversible jaw plates and a hydraulic “tramp iron relief” system, which protects the crusher from damage if non-crushable metal enters the chamber.
