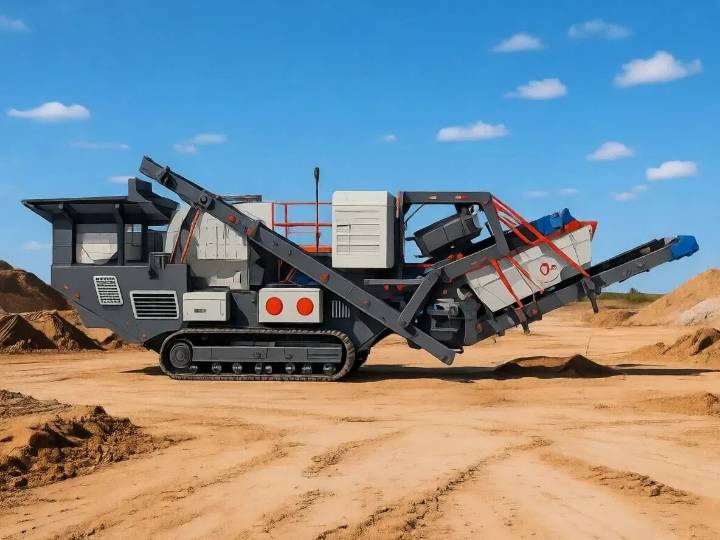

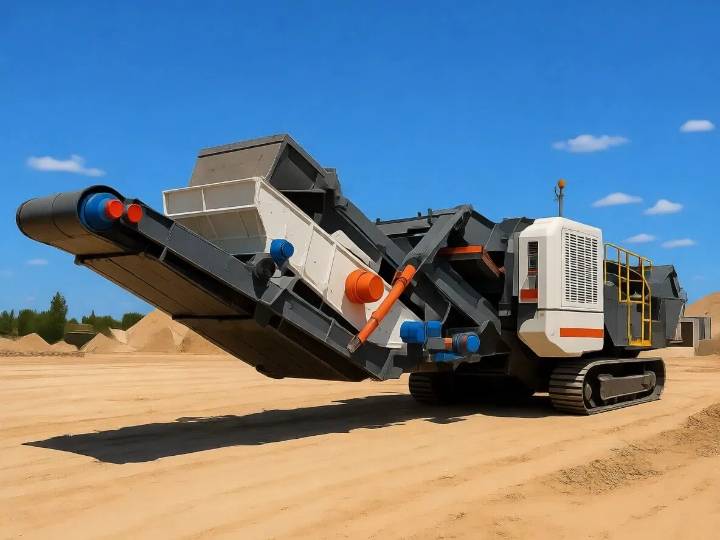

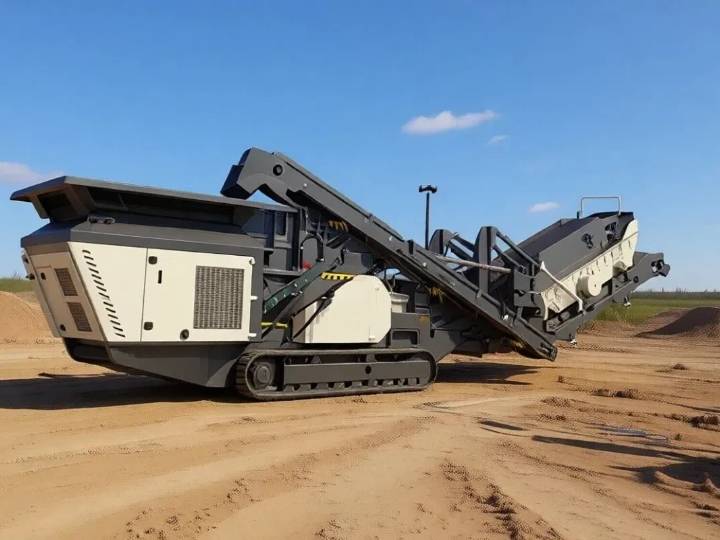

Shanghe Mobile Impact Crusher
High-Performance Mobile Impact Crusher| Precision Aggregate Shaping
Elevate your aggregate quality with our High-Performance Mobile Impact Crusher, engineered to deliver unmatched precision in aggregate shaping.
Designed for contractors who refuse to compromise on material standards, this plant leverages high-energy impact technology to transform run-of-mine rock, recycled concrete, and asphalt into premium, cubical-shaped products. Whether you are supplying high-spec material for road base or specialized concrete mixes, our crusher provides the consistent particle distribution your projects demand.
Why settle for standard output when you can achieve precision results on-site? Combining rugged durability with cutting-edge mobility, our impact crusher eliminates the need for complex stationary setups, ensuring you stay productive from the first day of mobilization to the final stage of your project.
The Ultimate Solution for Secondary Crushing and Recycling
Whether you are managing a quarry, a large-scale demolition project, or a road construction site, our mobile impact crusher offers the perfect blend of mobility and power. Engineered for high-speed impact technology, these plants transform soft-to-medium materials—such as limestone, recycled concrete, or asphalt—into premium, well-shaped cubical aggregates that meet the strictest industry specifications.
Key Features & Technical Advantages
Superior Cubical Shaping: Unlike jaw crushers, our impact technology delivers the perfect cubical product required for high-grade asphalt and concrete mixes.
Rapid On-Site Deployment: Featuring a “plug-and-play” design, this mobile unit becomes fully operational within 4 to 6 hours of site arrival, bypassing weeks of civil works.
Advanced Automation & Telematics: Our 2026 models feature integrated real-time monitoring and remote diagnostics, allowing for single-operator control of the entire crushing circuit.
Eco-Friendly Performance: Modern integrated dust suppression and noise control systems ensure your operations remain compliant in sensitive urban environments.
How It Works: The Crushing Circuit
Sorting & Output: The crusher discharges material onto a high-capacity vibrating screen, which sorts it by mesh size. Finally, the system automatically routes the graded aggregate to stockpile conveyors, preparing it for immediate collection.
Regulated Infeed: A vibrating feeder feeds material at a constant rate, maintaining a steady, regulated flow to the rotor. An integrated grizzly section pre-screens fine material, diverting it away from the rotor to maximize efficiency and reduce wear.
High-Speed Impact: The rotor delivers high-energy strikes to the material, breaking it down into precise sizes based on your requirements.
Choose Your Power: Diesel vs. Dual-Power
We provide flexible power configurations to match your site requirements:
- Diesel-Hydraulic Drive: Common on our tracked units, using a powerful diesel engine to drive hydraulic motors for both the crusher and track movement—providing robust power and high maneuverability.
- Electric/Dual-Power: Our dual-power configuration allows you to power the plant via an external grid or the integrated onboard generator, ensuring maximum operational flexibility. This enables zero-exhaust operation at the point of use, offering the lowest operating costs and carbon footprint for fixed-site or urban projects.
Specification
| Model | Corollary Equipment | Feeding Size (mm) | Capacity (t/h) | Transport Dimension (mm) |
|---|---|---|---|---|
| S-CS75 | 3YZK1848 / CS75 | ≤160 | 59-163 | 12600×2800×4400 |
| S-CS110 | 3YZK1860 / CS110 | ≤178 | 100-200 | 13800×3000×4400 |
| S-CS160 | 3YZK2160 / CS160 | ≤188 | 132-253 | 13800×3000×4400 |
| S-CS220 | 3YZK2160 / CS220 | ≤230 | 215-330 | 14500×3000×4500 |
| S-Q300 | 3YZK1848 / SQ300 | ≤160 | 105-205 | 12600×2800×4400 |
| S-Q400 | 3YZK1860 / SQ400 | ≤230 | 235-575 | 13800×3000×4400 |
| S-Q500 | 3YZK2160 / SQ500 | ≤240 | 304-640 | 14500×3000×4600 |
| S-H420 | 3YZK1848 / SH420 | ≤240 | 85-170 | 12600×2900×4400 |
| S-H430 | 3YZK1860 / SH430 | ≤360 | 120-345 | 13800×3000×4500 |
| S-H440 | 3YZK2160 / SH450 | ≤450 | 255-605 | 14800×3200×4600 |
| S-HP100 | 3YZK1860 / SHP100 | ≤140 | 75-140 | 13800×2900×4300 |
| S-HP200 | 3YZK2160 / SHP200 | ≤185 | 145-250 | 14200×3000×4500 |
| S-HP300 | 3YZK2160 / SHP300 | ≤230 | 220-440 | 16500×3200×4600 |
| S-PF1214 | 3YZK1860 / PF1214 | ≤300 | 100-200 | 14500×2900×4500 |
| S-PF1315 | 3YZK2160 / PF1315 | ≤350 | 130-280 | 15200×3000×4500 |
| S-PF1320 | 3YZK2460 / PF1320 | ≤500 | 180-400 | 15200×3000×4500 |
| S-S1860 | 3YZK1860 | ≤400 | 65-586 | 10500×2700×4200 |
| S-S2160 | 3YZK2160 | ≤400 | 81-720 | 10500×3000×4500 |
| S-S2460 | 3YZK2460 | ≤400 | 100-810 | 10500×3200×4500 |
Why Invest in Our Mobile Impact Crushers?
Cross-Industry Versatility: From mining and quarrying to C&D (construction and demolition) recycling, our machines maintain strong residual values and a favorable long-term ROI.
Minimized Infrastructure: No need for deep concrete foundations or fixed utilities, significantly reducing your upfront site preparation investment.
Reduced Logistics Costs: Processing material directly at the source eliminates or drastically reduces hauling costs, which can constitute up to 30% of total project expenses.
Frequently Asked Questions (FAQ)
Q: What is the primary advantage of a mobile impact crusher over a jaw crusher?
A: The primary advantage is the quality of the end product. While jaw crushers are designed for primary size reduction, impact crushers use high-speed rotor technology to produce a superior, cubical-shaped aggregate. This is essential for high-specification road base, concrete, and asphalt mixes where material shape directly impacts structural integrity.
Q: Can a mobile impact crusher handle recycled construction waste?
A: Yes, absolutely. Our 2026 models are specifically engineered for recycling applications. They effectively process concrete, asphalt, and brick debris, separating embedded steel (with optional magnetic separators) to produce clean, high-grade recycled aggregate for reuse.
Q: What are the main differences between Crawler and Wheel chassis?

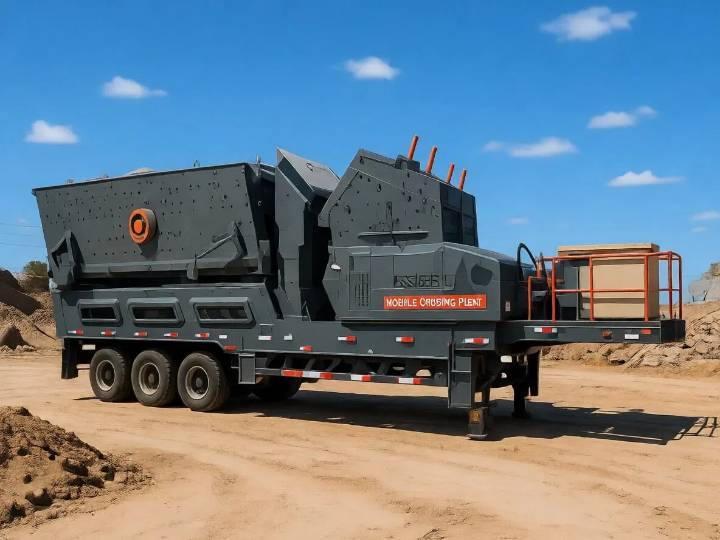

A: It comes down to your site needs. Crawler (tracked) units offer ultimate maneuverability, allowing you to traverse rough, uneven ground and steep inclines on mining or demolition sites. Wheel-mounted units are designed for frequent, high-speed road towing and offer a more cost-effective solution for paved or flat industrial environments.
Q: How long does it take to set up the mobile crusher on-site?
A: Our “plug-and-play” mobile design is built for speed. Once the machine is positioned at the work site, most units can be fully operational within 4 to 6 hours, significantly reducing the downtime associated with fixed, stationary crushing plants.
Q: Is it possible to operate the crusher without diesel emissions?
A: Yes. We offer Dual-Power/Electric configurations that allow you to connect the crusher to an external grid or an integrated onboard generator. This enables zero-exhaust operation, which is critical for meeting environmental compliance in urban settings or sensitive project sites.
Ready to Optimize Your Crushing Operations?
Don’t let hauling costs and slow setup times drag down your project’s profitability. Contact our engineering team today for a tailored solution that fits your production goals. Get a Customized Quote
