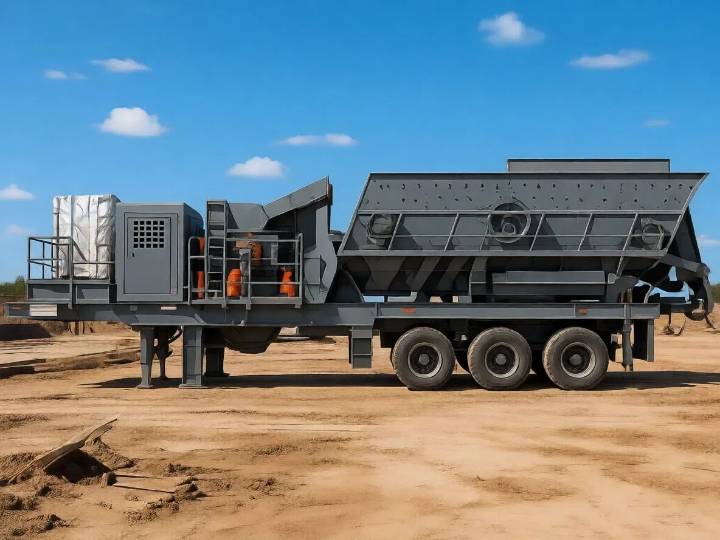

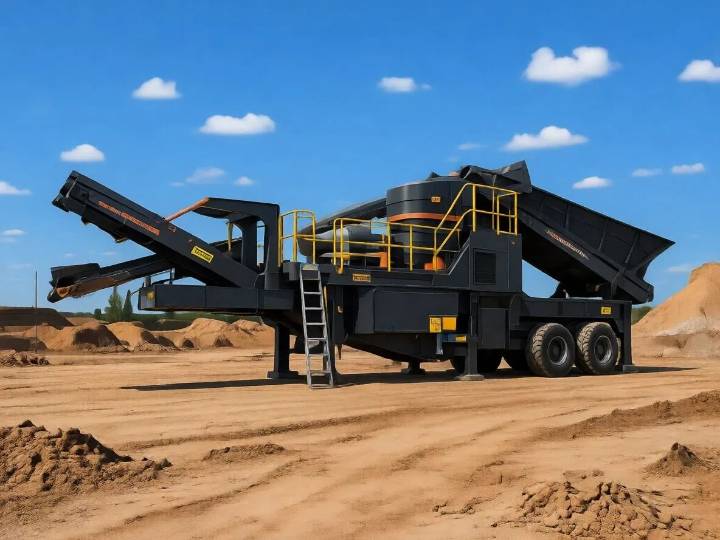

Shanghe Mobile Cone Crusher
High-Performance Crushing Solution for Secondary & Tertiary Applications-The Ultimate Solution for Hard-Rock Processing
A mobile cone crusher is a portable crushing plant equipped with a cone crusher, mounted on a crawler chassis or mobile frame. It is mainly used for secondary and tertiary crushing of hard and abrasive materials such as granite, basalt, limestone, and river stone.
When your project demands fine-crushing precision and the ability to process the world’s hardest, most abrasive rocks, our mobile cone crusher is the industry-leading choice. Unlike impact crushers, which rely on high-speed strikes, the cone crusher utilizes interparticle crushing (compression) to deliver a superior, uniform product with maximum cubical shape for high-spec asphalt and concrete applications.
Why Choose Our Mobile Cone Crusher?
Maximum Mobility: Built on a heavy-duty crawler chassis, this mobile plant delivers high-capacity processing directly to the quarry face or mine site.
Master of Abrasive Materials: Specifically engineered to handle high-hardness ores, granite, and basalt without the rapid wear associated with impact technology.
Precision Particle Control: Features advanced hydraulic gap adjustment, allowing you to fine-tune your discharge setting (CSS) on the fly to meet exact product size specifications.
Tramping Protection: Equipped with a sophisticated hydraulic release system that automatically clears non-crushable material (tramp iron) from the chamber, preventing damage and minimizing downtime.
Mobile Cone Crusher vs Stationary Cone Crusher
| Item | Mobile Cone Crusher | Stationary Cone Crusher |
|---|---|---|
| Installation | No foundation required | Fixed foundation needed |
| Mobility | Easy relocation | Fixed location |
| Setup Time | Short | Long |
| Application | Multi-site projects | Long-term single site |
How It Works: The Compression Circuit
- Controlled Infeed: Material is metered into the crusher chamber by an integrated feeder, ensuring a constant, choke-fed flow.
- Interparticle Compression: The mantle moves in an eccentric motion against the concave, compressing material against itself. This creates a high reduction ratio and a premium, uniform grain structure.
- Hydraulic Adjustment: Operators can adjust the discharge opening (CSS) remotely via the 2026 digital control interface, allowing for seamless shifts in product size output.
- Graded Discharge: The processed aggregate is then discharged via a high-torque conveyor, ready for final screening or stockpiling.
T
Specification
| Item | THP300L | THP400L | TCH430 |
|---|---|---|---|
| Feeding Machine | |||
| Specification | B1000 × 4.6 m | B1200 × 4.6 m | B1000 × 6.5 m |
| Drive Mode | Inverter Motor | Inverter Motor | Inverter Motor |
| Reducer Drive | Yes | Yes | Yes |
| Cone Crusher | |||
| Equipment | HP300 | HP400 | CH430 |
| Max Feeding Size | 200 mm | 260 mm | 185 mm |
| Minimum Outlet | 10 mm | 20 mm | 20 mm |
| Motor Power | 220 kW | 280 kW | 160 kW |
| Frame | |||
| Hydraulic Tracked Chassis | 60 T | 60 T | 60 T |
| Boat Frame | Q345B Welding | Q345B Welding | Q345B Welding |
| Return Screen | |||
| Specification | 2YZK1500 × 3500 | YK1500 × 3800 | YK1530 |
| Drive Mode | Vibration Motor 3.7 kW | Vibration Motor 3.7 kW | Vibration Motor 3.7 kW × 2 |
| Main Belt Conveyor | |||
| Specification | B1200 × 12.5 m | B1200 × 10.6 m | B1200 × 10.6 m |
| Drive Mode | Motor Reducer Drive 15 kW | ||
| Under Screen Belt Conveyor | |||
| Specification | B1200 × 5.6 m | B1200 × 6.2 m | B1200 × 5.4 m |
| Drive Mode | Motor Reducer Drive 7.5 kW | ||
| Return Belt Conveyor | |||
| Specification | B500 × 12.5 m | B650 × 12.5 m | B500 × 12.5 m |
| Drive Mode | Motor Reducer Drive 7.5 kW | ||
| Transfer Belt Conveyor | |||
| Specification | B500 × 2.4 m | B650 × 2.4 m | B500 × 2.4 m |
| Drive Mode | Motor Reducer Drive 4 kW | ||
| Power System | 400 kW Generator Set | 500 kW Generator Set | 305 kW Generator Set |
| Electrical System | Cone crusher motor and feeder start with variable frequency; other motors start directly. | ||
| Hydraulic System | |||
| Belt Conveyor Folding Cylinder | Hydraulic Automatic Lift | ||
| Hydraulic Components | Load Sensitive, Electro-hydraulic Proportional Manifold | ||
Frequently Asked Questions (FAQ)
Q: When should I choose a Cone Crusher over an Impact Crusher?
A: Use a Cone Crusher for hard, abrasive rocks (like granite or basalt) where longevity and product uniformity are key. Use an Impact Crusher for softer materials (like limestone or recycled concrete) where you need high-speed shaping.
Q: Can I change the product size while the machine is running?
A: Yes. Our hydraulic control system allows for real-time adjustment of the closed-side setting (CSS), meaning you can switch product gradations without stopping the machine.
Q: How does the cone crusher handle uncrushable material?
A: The unit is equipped with a hydraulic relief system. If metal or oversized material enters the chamber, the cone will automatically lift to allow the object to pass, protecting the internal components from catastrophic failure.
