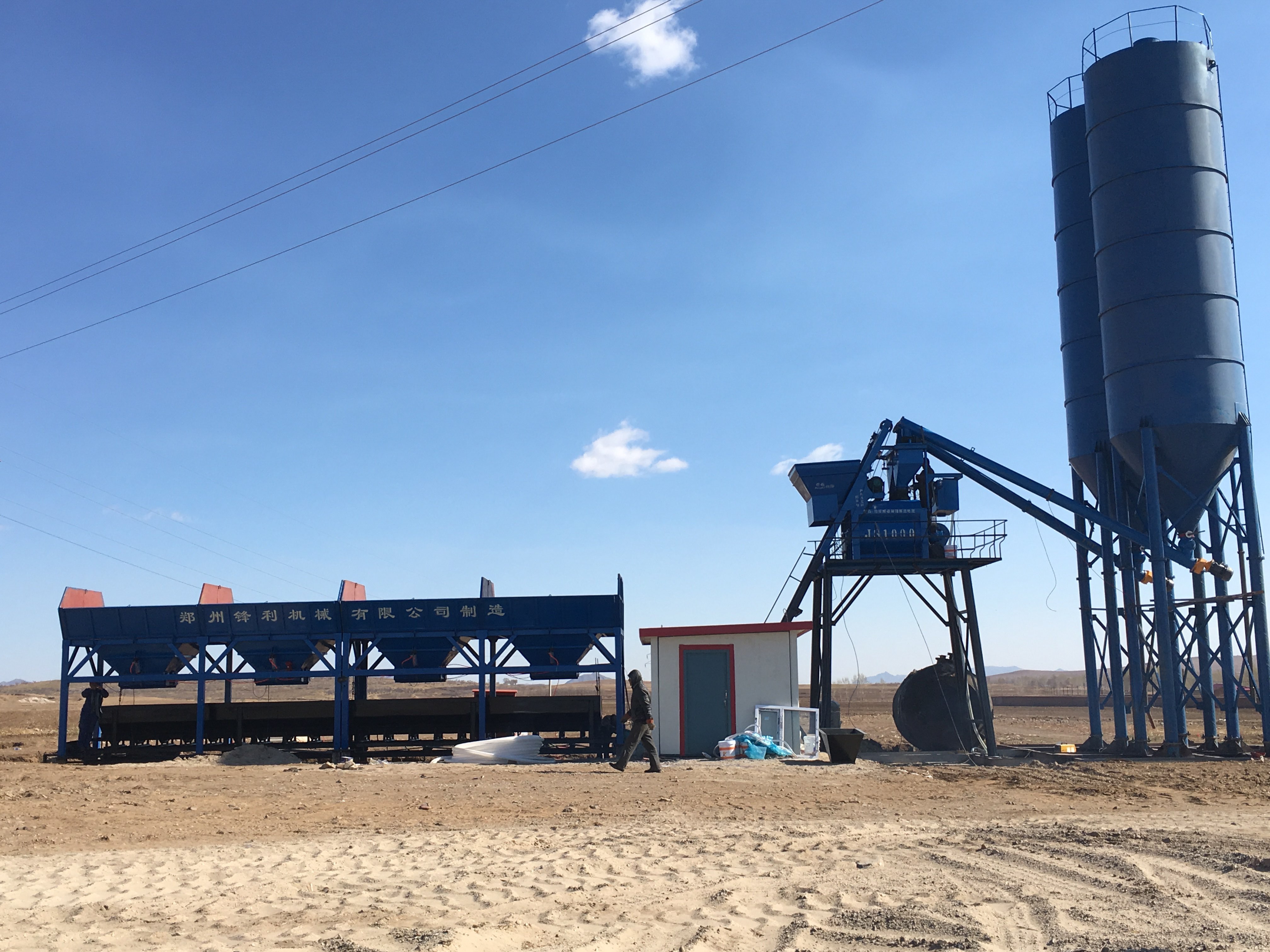

Components

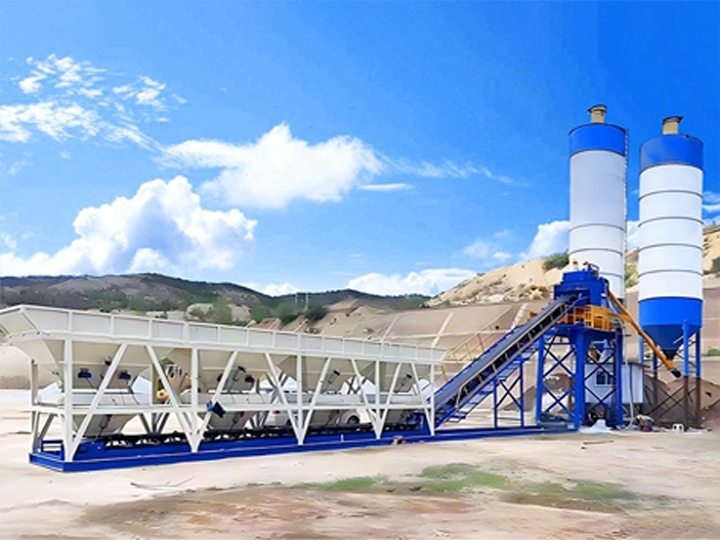

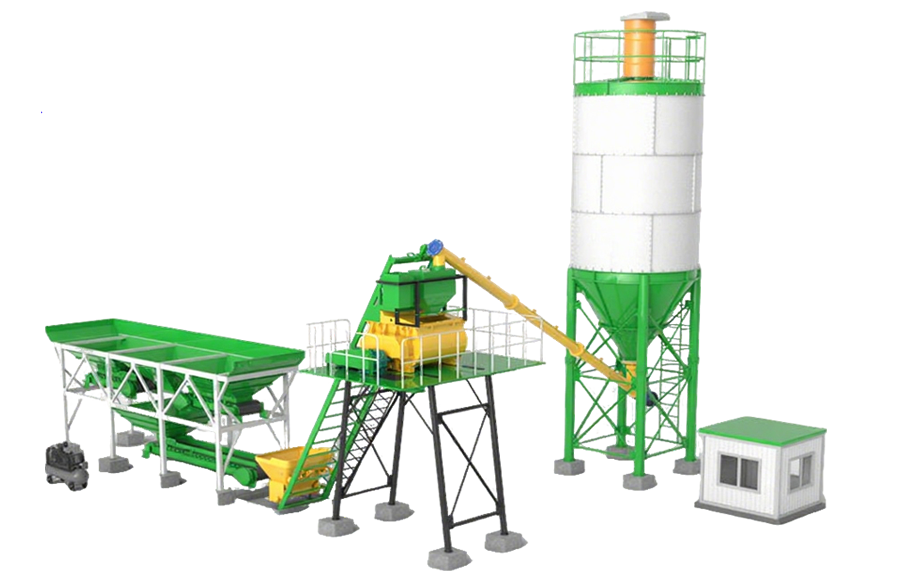

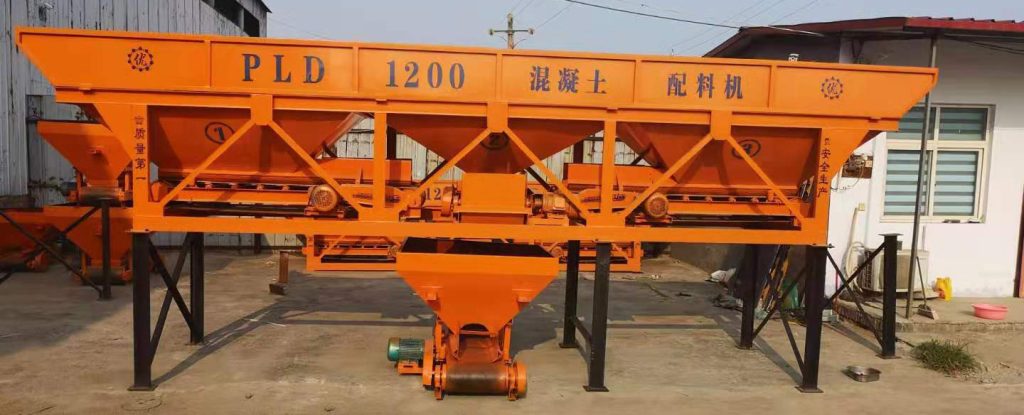

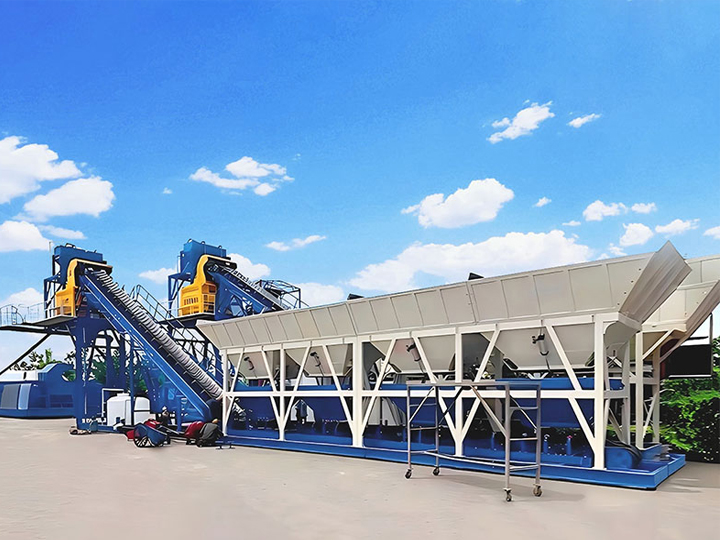

- Aggregate batching machine with steel base;

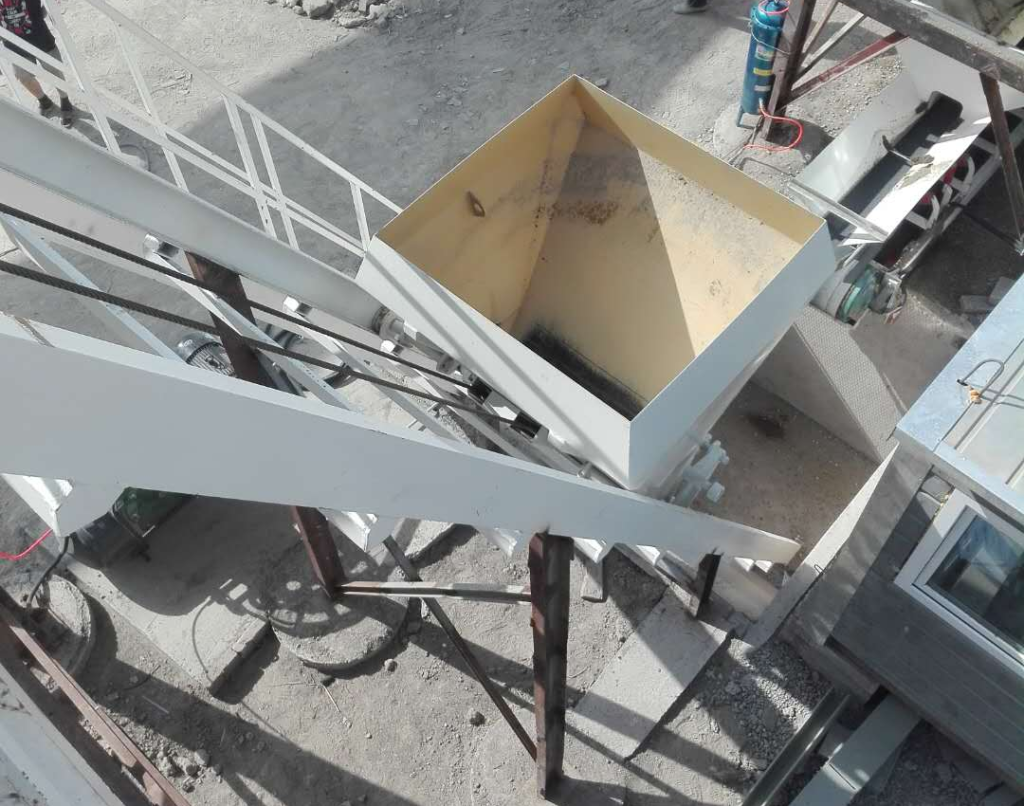

2. Aggregate loading belt conveyor or skip hoist;
3.Water, cement and additive scales;

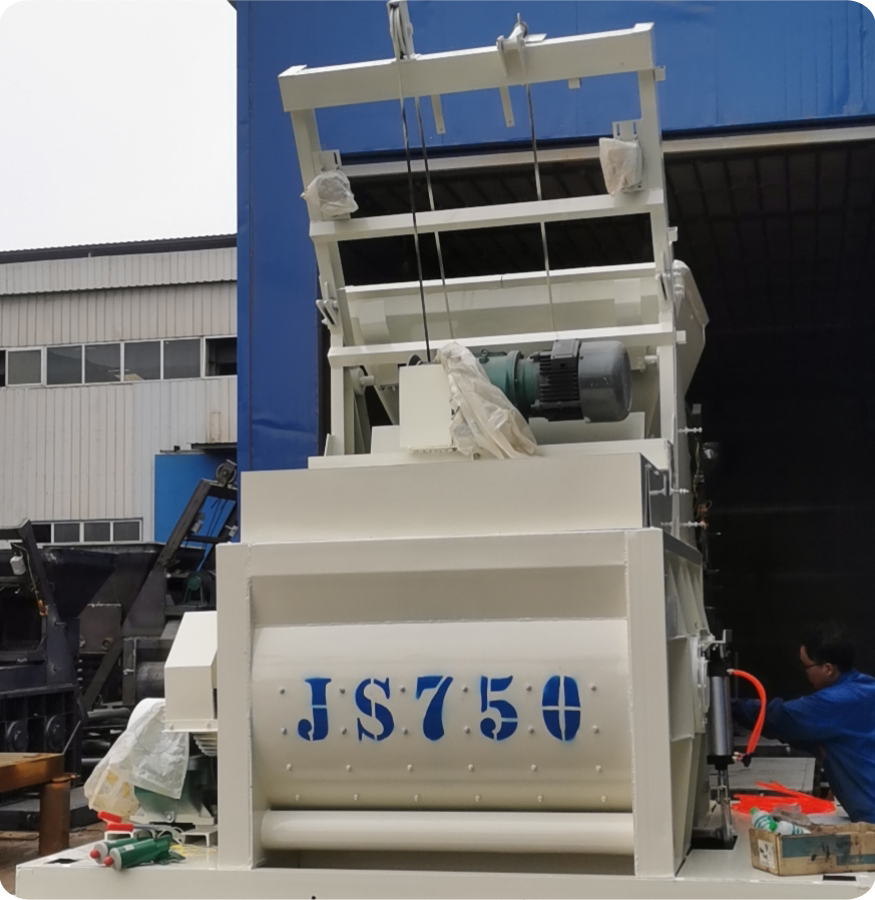

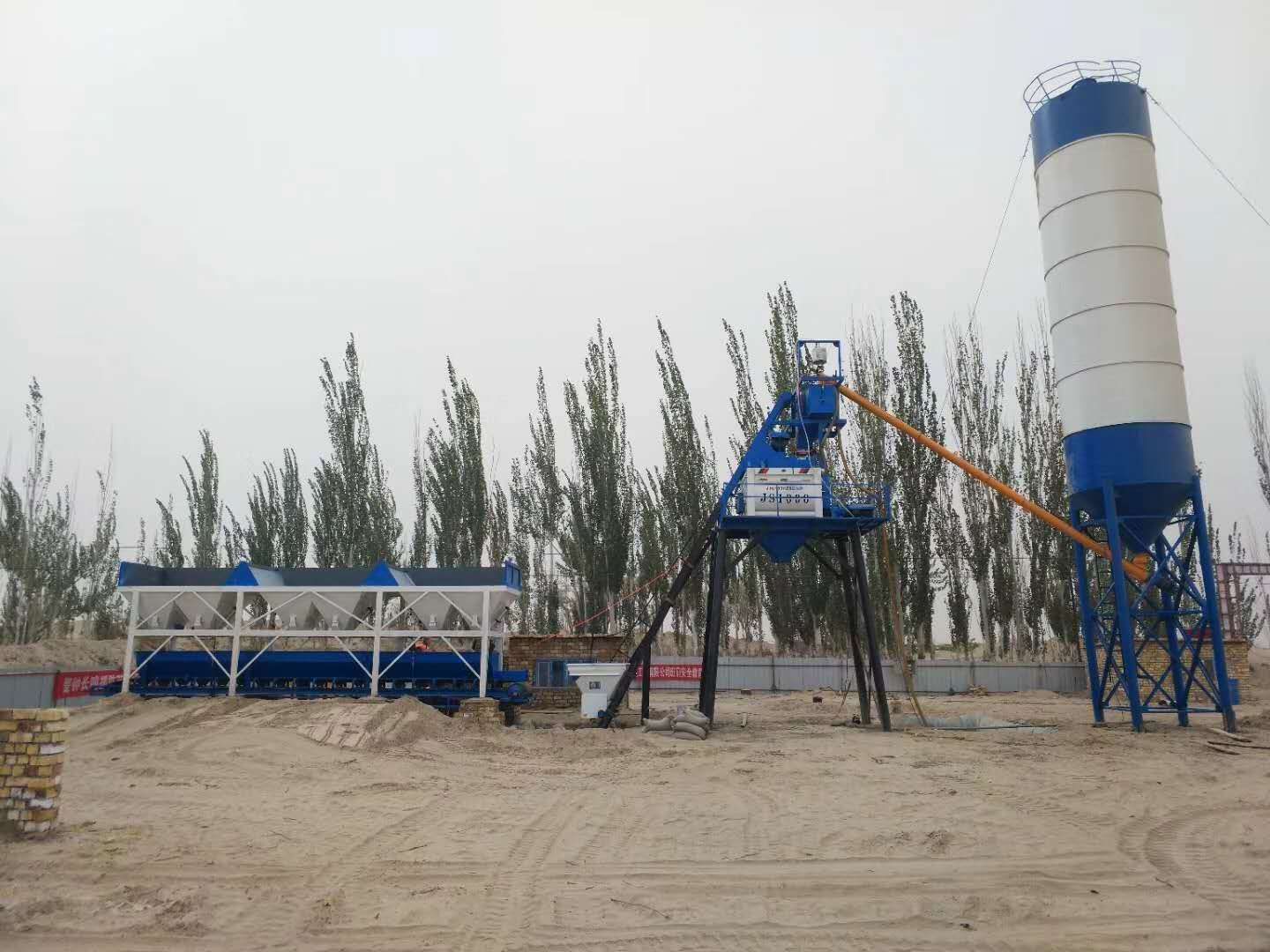

4. Concrete mixer: twin-shaft mixer or planetary mixer;

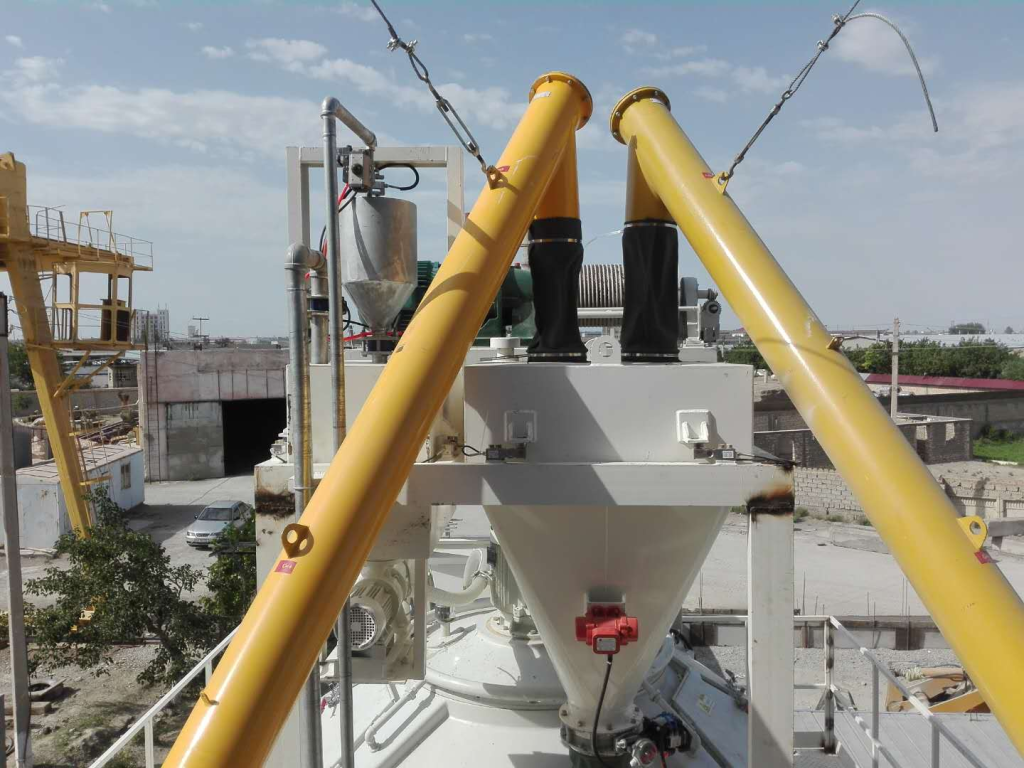

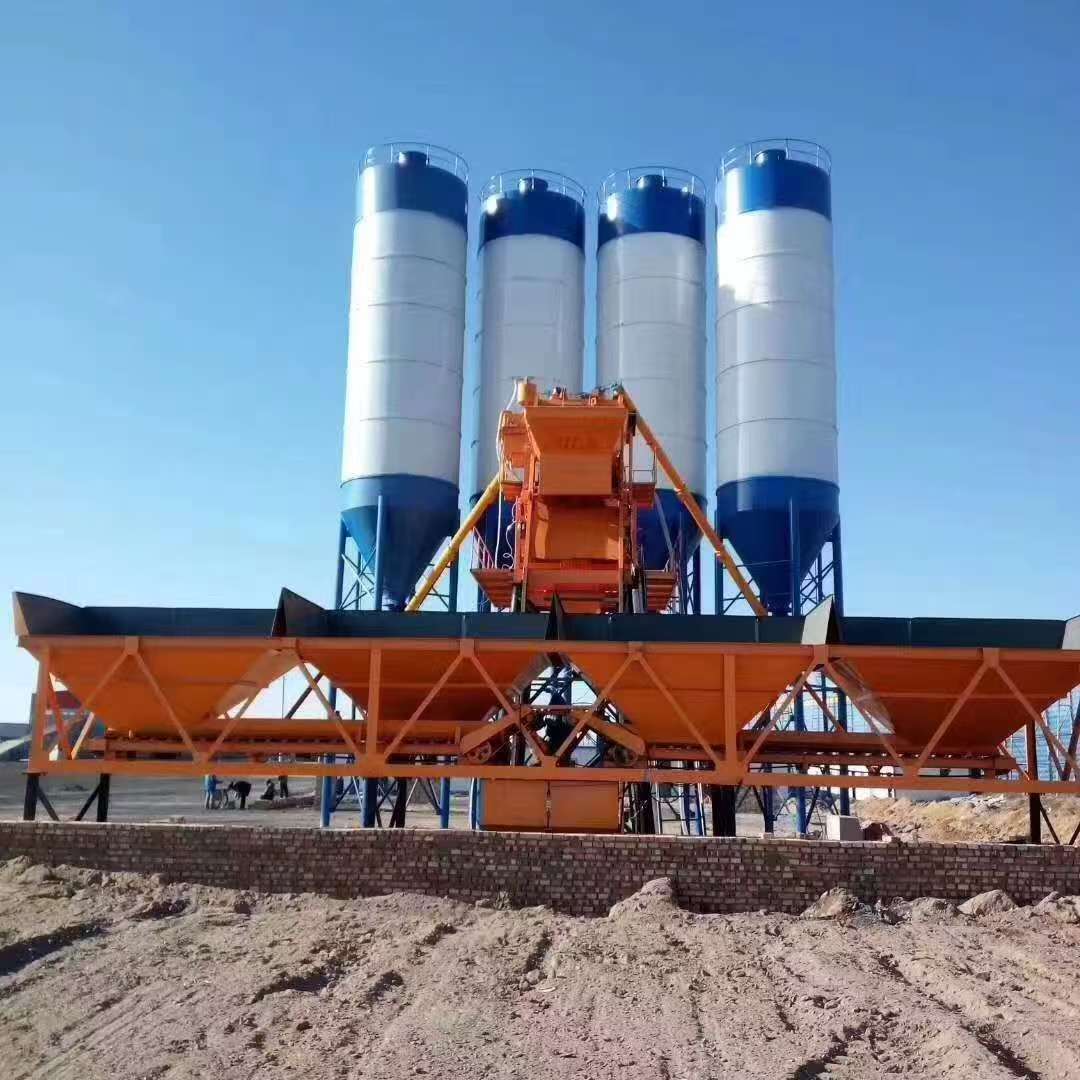

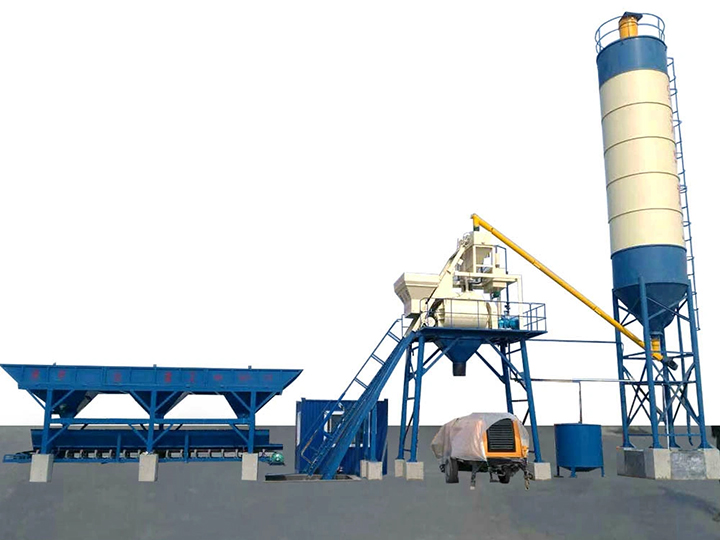

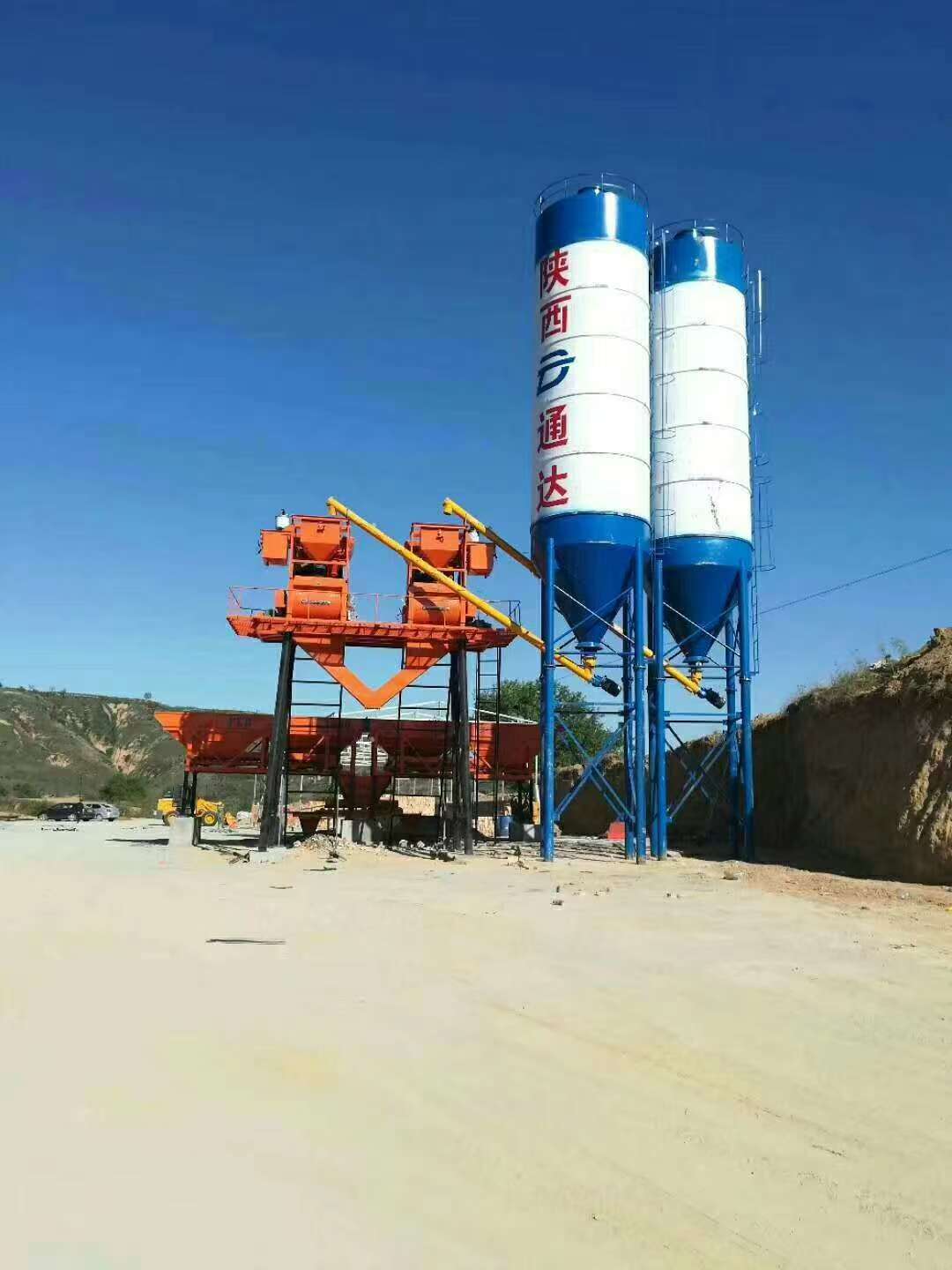

5. Cement silo: traditional vertical cement silo or horizontal cement silo. Horizontal cement silo is more and more popular because it is very easy to install and no needs foundation;
6. Screw conveyor;

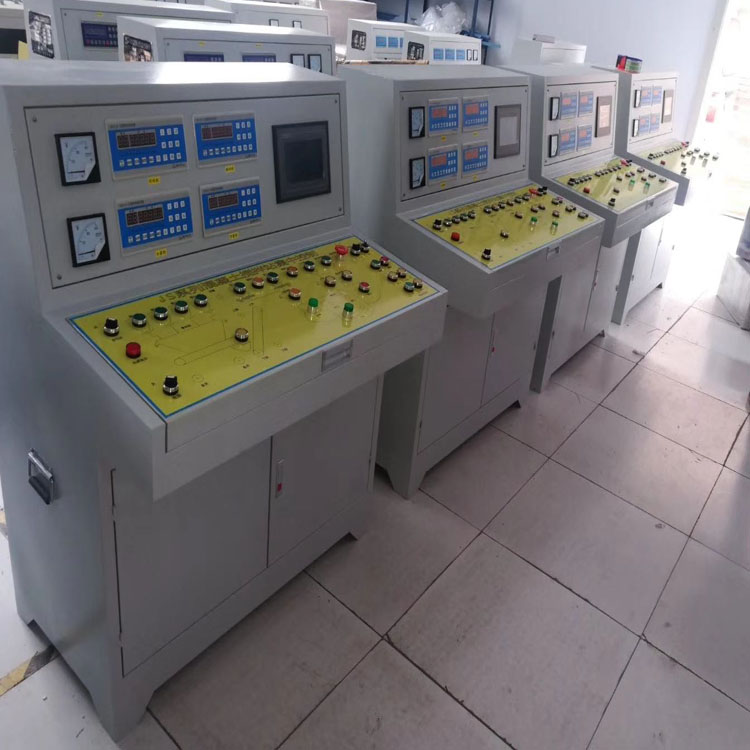

7. Control system.
Advantages
- Quick installation. Because we don’t need to make a huge concrete foundation, we can finish the installation quickly. Usually, we can save about 60% time needed for the installation of a traditional concrete batching plant.
- Easy to move to other work sites;
- Compact design which is suitable for transporation with containers;
- Compulsory twin-shaft mixer is used to make sure the quality of the concrete.
Working principle

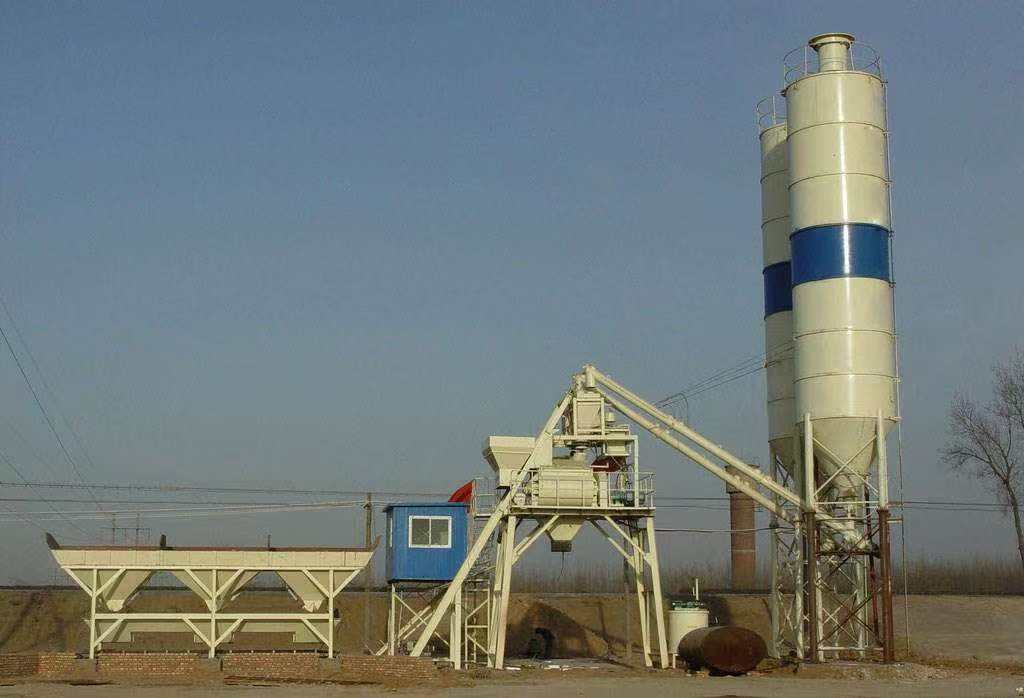

The aggregate is discharged into the aggregate measuring hopper through the discharge door of the aggregate bin at the batching station for measurement. After measurement, it is unloaded onto a far rotating flat belt, which is sent to the inclined belt conveyor. The inclined belt conveyor then transports the aggregate to the waiting hopper at the top of the mixer for instructions. At the same time, cement and fly ash are transported to their respective measuring hoppers by screw conveyors for measurement. Water and admixtures are pumped to their respective measuring hoppers by water pumps and admixture pumps for measurement. After the various materials are measured, the control system sends instructions to start sequentially feeding them into the mixer for mixing. After mixing is completed, the discharge door of the mixer is opened to unload the concrete into the mixing and transportation through the discharge hopper, and then enter the next working cycle.

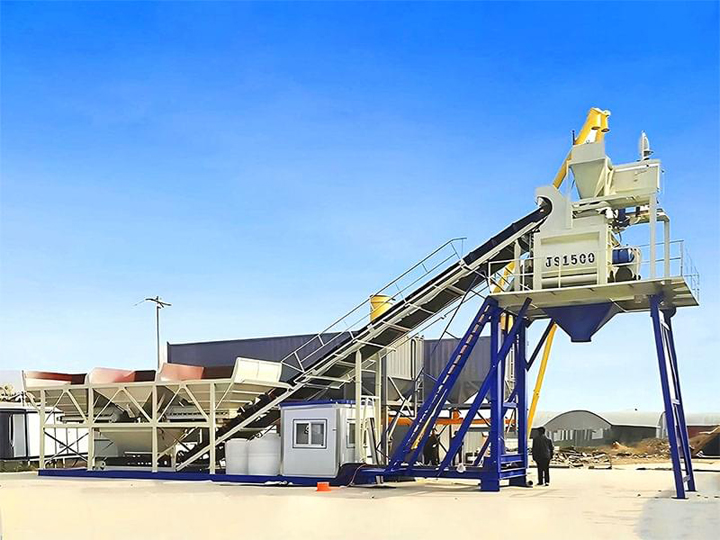

Specification

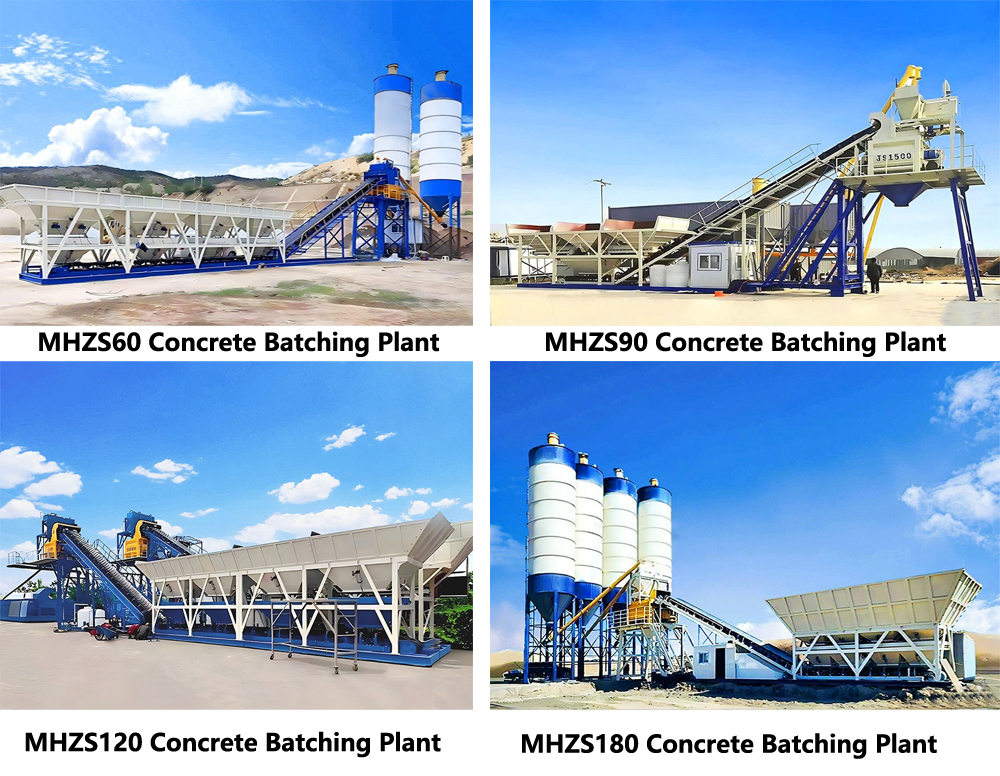

| Model | MHZS60 | MHZS90 | MHZS120 | MHZS180 |
| Production capacity (m3/h) | 60m³ | 90m³ | 120m³ | 180m³ |
| Concrete mixer | JS1000 | JS1500 | JS2000 | JS300 |
| Total Installed Capacity(kw) | 100 | 165 | 210 | 260 |
| Cycle period | 60S | 60S | 60S | 30S |
| Cement/Powder Silo Capacity(set) | 3×100T | 3×100T | 4×100T or 200T | 4×200T |
| Largest aggregate particle | Φ80mm | Φ80mm | Φ120mm | Φ120mm |
| Batching station | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Standard Discharging Height(m) | 4.2m | 4.2m | 3.8~4.5 | 4.5 |
