Shanghe Floor Screed Pump

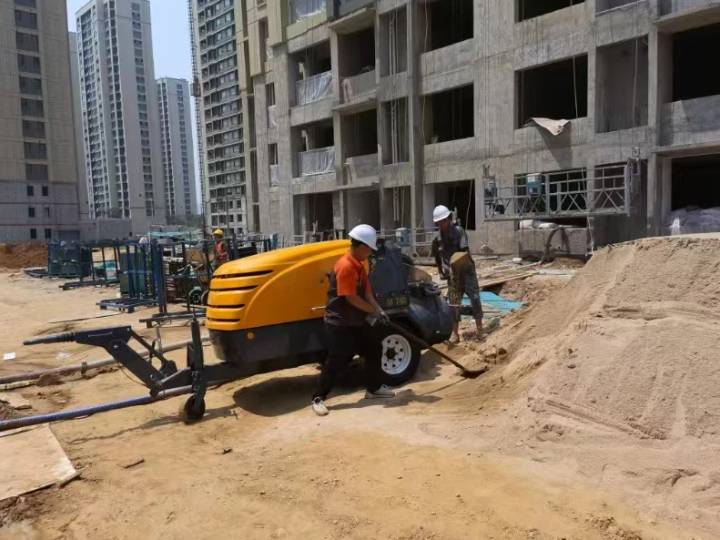

A Floor Screed Pump, also calleda Floor Screed Conveyor, is a specialized construction machine designed to transport and apply screed (a thin layer of specialized mortar or concrete) onto a floor base to create a smooth, level surface. The M760D stands as our top-selling pneumatic conveyor, boasting a robust export record to key markets including Europe, the Middle East, and Asia. Its proven reliability in diverse climates—from the arid Middle East to the humid regions of Southeast Asia—makes it a versatile powerhouse for any jobsite.
In modern construction, it has largely replaced the traditional “wheelbarrow and shovel” method, allowing for much faster and more precise floor installations.
Shanghe M-Series Professional Pneumatic Screed Conveyors: High-Performance Solutions featuring the M740D Workhorse and the M760D Powerhouse.
Our M740D and M760D series are heavy-duty conveyors specifically engineered for mixing and delivering semi-dry floor screed. Utilizing advanced pneumatic technology, these series ensure seamless material transport for even the most demanding jobsites.
The M760D stands as our top-selling mortar screed conveyor, boasting a robust export record to key markets including Europe, the Middle East, and Asia. Its proven reliability in diverse climates—from the arid Middle East to the humid regions of Southeast Asia—makes it a versatile powerhouse for any jobsite.
Maximize Your Floor Pouring Efficiency
Specialized Pumping Solutions for Liquid Screed, Underfloor Heating, and Industrial Floors.
Smart Control: Precision flow control with wireless remote operation.
Labor Saving: Replace a crew of 8 with a single operator.
High Reach: 150m horizontal and 60m vertical pumping capacity.
Why Upgrade to Our Pumping System?
In modern construction, speed is profit. Our screed pumps are engineered to eliminate the bottlenecks of traditional floor laying.
- Anti-Clogging Technology: Features a heavy-duty S-valve and optimized hopper design to ensure smooth flow even with high-viscosity materials.
- Built to Last: Equipped with wear-resistant alloy parts that extend service life by 30% compared to standard models.
- Versatile Power Options: Choose between eco-friendly Electric motors for indoor city projects or powerful Diesel engines (Stage V/Tier 4) for remote jobsites.
Key Applications
1. Underfloor Heating (UFH)
Perfect for anhydrite and cementitious flowing screeds. Ensures 100% pipe coverage for optimal thermal conductivity without air pockets.
2. High-Rise Commercial Projects
Powerful vertical delivery eliminates the need for expensive cranes or hoists to move mortar to upper floors.
3. Industrial Warehousing
Supports continuous, large-scale pouring for seamless, high-strength industrial flooring that meets strict flatness standards.
Main Types of Screed Pumps
Depending on the material being used, there are two primary types:
- Flowing/Liquid Screed Pumps (Worm Pumps): Designed for self-leveling or anhydrite screeds.
- They work like a giant screw (auger) pushing liquid material through the hose.
- Best for: Underfloor heating systems and high-speed residential projects.
- Traditional Sand & Cement Pumps (Pneumatic Conveyors): Designed for “dry” or “semi-dry” screed (earth-moist).
- The machine mixes the sand and cement in a pressure vessel and then uses compressed air to “blow” the material through the hose in plugs.
- Best for: Standard floor bases where a thick, structural layer is needed.
Key Components
- The Hopper: Where the raw material is loaded and mixed.
- The Pumping Mechanism: Either a hydraulic piston, a rotor/stator (worm), or a compressed air system.
- Delivery Hoses: Heavy-duty, abrasion-resistant hoses that can extend hundreds of feet.
- Power Source: Driven by either a Diesel engine (for outdoor/remote sites) or an Electric motor (for indoor/urban areas).
Technical Specifications

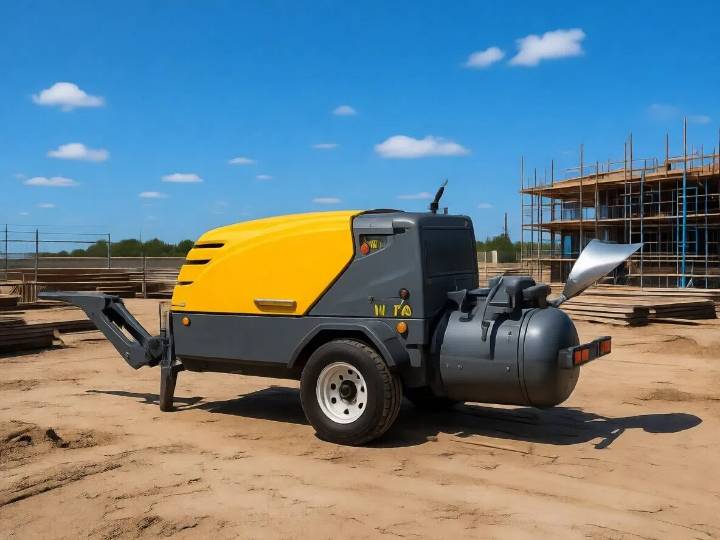

M760D Series Semi-dry floor screed Conveyor
| Item | Units | M760D | M760DB | M760DBS |
|---|---|---|---|---|
| Mixer Drum Gross Capacity | L | 260 | 260 | 260 |
| Useful Mixing Capacity | L | 200 | 200 | 200 |
| Delivery Rate (Max.) | m³/h | 4.0 | 4.8 | 5.0 |
| Delivery Pressure | bar | 7 | 7 | 7 |
| Delivery Range (Horizontal) | m | 200 | 200 | 200 |
| Delivery Range (Vertical) | m | 150 (50 Stories) | 150 (50 Stories) | 150 (50 Stories) |
| Filling Height | mm | 820 | 400 | 400 |
| Conveyor Pipe Diameter | mm | 64 | 64 | 64 |
| Max. Grain Size (Aggregate) | mm | 16 | 16 | 16 |
| Air Compressor & Engine | ||||
| Air Displacement | m³/min | 5.6 | 5.6 | 5.6 |
| Compressor Cut-off Pressure | bar | 8 | 8 | 8 |
| Engine Power | kW | 45 | 45 | 45 |
| Fuel Tank Capacity | L | 62 | 62 | 62 |
| Fuel Consumption (Approx.) | L/h | 7.6 | 9.2 | 9.7 |
| Dimensions & Weight | ||||
| Dimensions (L×W×H) | mm | 4407 × 1495 × 1520 | 4700 × 1495 × 2431 | 4700 × 1495 × 2431 |
| Operating Weight (Unladen) | kg | 1535 | 1670 | 1740 |
| Special Features | – | Standard / Basic Version | With Hydraulic Feeder | With Hydraulic Feeder & Scraper |
- High-Performance Powertrain
Engine: Advanced 4-cylinder, water-cooled diesel engine with a turbocharged induction system.
Fuel System: Equipped with a genuine Bosch electronically controlled High-Pressure Common Rail (HPCR) injection system for superior fuel efficiency and precision.
Compliance: Fully compliant with emission standards, ensuring eco-friendly operation.
- Reinforced Chassis & Towing
Braking System: Dual-safety configuration featuring both a manual parking brake and an integrated automatic overrun braking device.
Adjustable Drawbar: Height-adjustable tow bar to ensure seamless compatibility with various towing vehicles.
Superior Jobsite Mobility: towing at speeds of up to 80 km/h.
M740D Series Semi-dry floor screed Conveyor
| Technical Item | Units | M740D | M740DB | M740DBS |
|---|---|---|---|---|
| Mixer Drum Capacity (Gross) | L | 260 | 260 | 260 |
| Useful Mixing Capacity | L | 200 | 200 | 200 |
| Max. Delivery Rate | m³/h | 3.8 | 4.6 | 5.0 |
| Max. Delivery Pressure | bar | 7 | 7 | 7 |
| Max. Horizontal Range | m | 180 | 180 | 180 |
| Max. Vertical Height | m | 90 (30 Stories) | 90 (30 Stories) | 90 (30 Stories) |
| Filling Height | mm | 400 | 400 | 400 |
| Conveyor Pipe Diameter | mm | 64 | 64 | 64 |
| Maximum Grain Size | mm | 16 | 16 | 16 |
| Air Compressor & Engine Performance | ||||
| Air Displacement | m³/min | 4.3 | 4.3 | 4.3 |
| Compressor Cut-off Pressure | bar | 8 | 8 | 8 |
| Engine Power | kW | 35 | 35 | 35 |
| Engine Characteristics | – | 4-Cylinder Water-Cooled Diesel Engine (Emission Stage 3A / Tier 3) | ||
| Fuel Tank Capacity | L | 62 | 62 | 62 |
| Avg. Fuel Consumption | L/h | 6.7 | 8.1 | 8.5 |
| Chassis & Towing | ||||
| Towing Features | – | High-speed chassis (80 km/h), manual & auto overrun braking, height-adjustable drawbar | ||
| Dimensions (L×W×H) | mm | 4407×1495×1520 | 4700×1495×2431 | 4700×1495×2431 |
| Operating Weight (unladen) | kg | 1446 | 1580 | 1650 |
| Configuration Feature | – | Basic Version | With Hydraulic Feeder | With Feeder & Scraper |
Engineering Excellence
Premium Components: Powered by Rexroth hydraulic pumps and Siemens control systems.
Safety First: Integrated emergency stop, overpressure protection, and automatic reverse function.
Global Support: We provide 24/7 technical video support and 7-day express delivery for wear parts via our global warehouse network.
FAQ
Q: Can it handle self-leveling mortar?
A: Yes, our pumps are specifically calibrated for high-fluidity self-leveling materials and traditional sand-cement screeds.
Q: Do you offer CE certification?
A: Absolutely. All machines are fully certified for the European markets.
Q: What is the lead time for international shipping?
A: Standard models are in stock and ready to ship within 60 days.
Ready to Scale Your Construction Business?
Stop letting manual labor slow you down. Contact our engineers today for a Custom Pumping Solution and a competitive factory-direct price.
