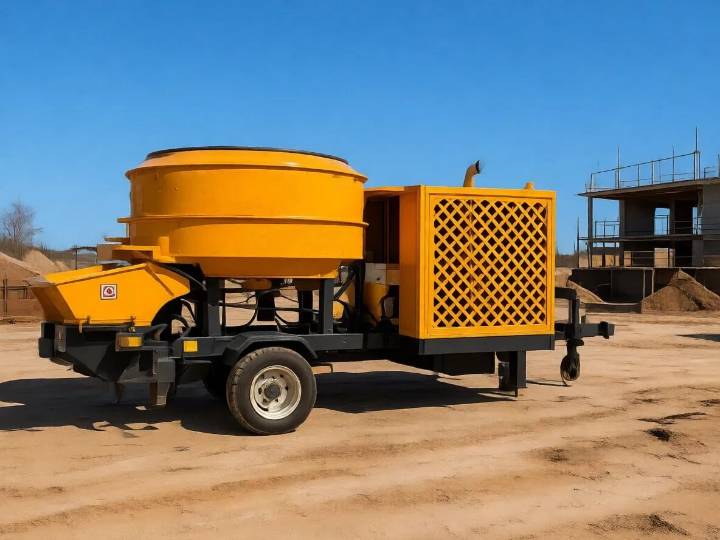

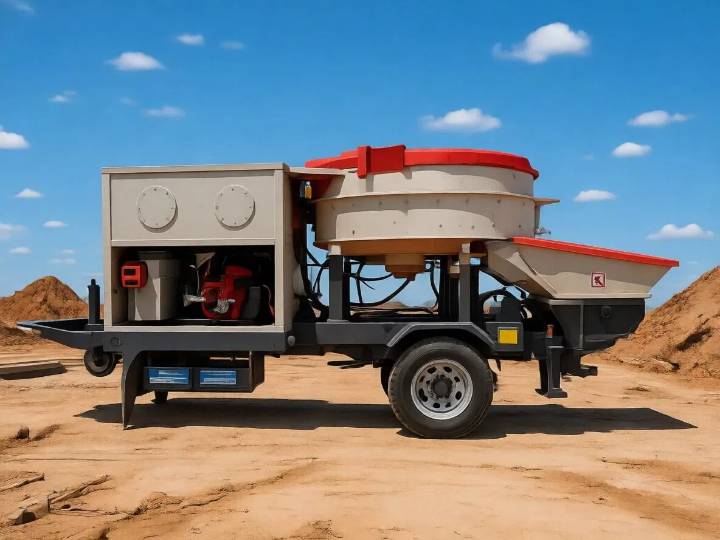

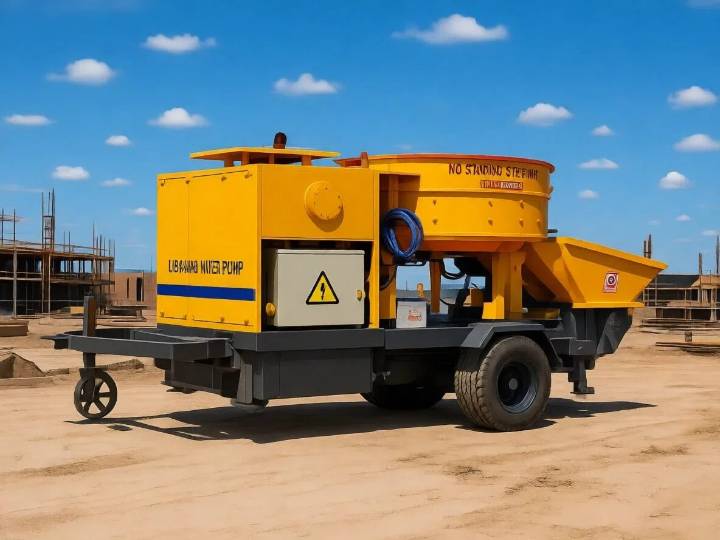

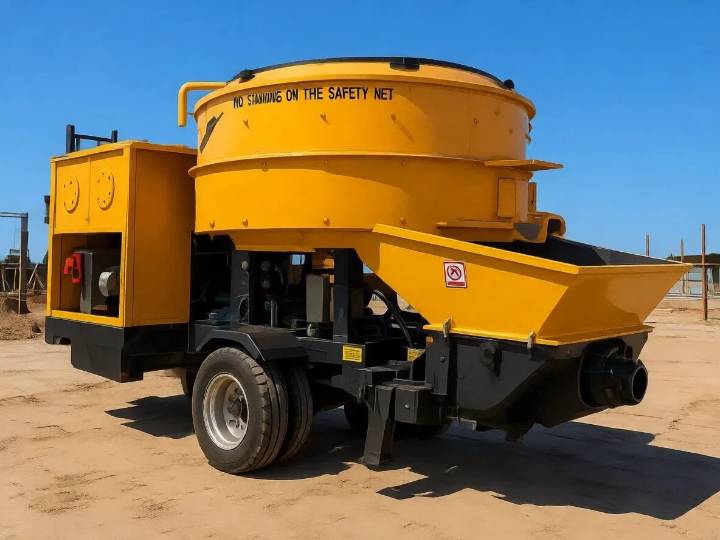

LHBT/R Vertical Shaft Concrete Mixer Pump: The Ultimate 2-in-1 Solution
Experience the perfect synergy of precision mixing and high-pressure pumping with the LHBT/R Series Vertical Shaft Concrete Mixer Pump. Designed for demanding construction environments, this integrated machine eliminates the need for separate mixing and pumping units, significantly reducing your footprint and labor costs.
Whether you are working on bridge construction, tunnel lining, or high-rise building foundations, the LHBT/R series delivers a consistent, high-quality concrete mix with seamless delivery to the pour site.
LHBT/R series pump is an integrated concrete mixing and pumping machine. Compared to the JBS series concrete mixer with pump machine, it offers higher output efficiency, smaller size, and easier mobility. The mixer is driven by a hydraulic motor, which is compact yet delivers high torque, preventing large aggregates from jamming and burning out the motor. Frequent forward and reverse rotation further enhances mixing efficiency. The mixer’s inner wall and bottom surface are lined with replaceable, high-wear-resistant plates for extended service life. The low loading height allows for direct loading with a loader, resulting in higher efficiency.
This series offers a choice between electric motors and diesel engines. The diesel concrete mixer pump is the most popular type.
Why Choose the LHBT/R Mixer Pump?
Unlike traditional drum mixers, the Vertical Shaft (Planetary) Mixer ensures a more homogeneous blend of aggregates, cement, and water. This is particularly critical for high-performance concrete (HPC) and specialized mortars.
- Superior Mixing Quality: The vertical shaft design ensures no “dead zones” in the mixing pan, resulting in a uniform consistency that reduces the risk of pump blockages.
- Space-Saving Design: Combining the mixer and the pump into a single mobile unit makes it ideal for narrow jobsites or urban construction.
- High Pumping Pressure: Engineered to transport concrete over long distances and significant vertical heights without loss of flow.
- Automated Control: Equipped with advanced PLC systems for precise batching and easy operation.
Technical Specifications
| Performance Indicators | LHBT40-75 | LHBT50-75 | LHBT40-75R | LHBT50-75R |
|---|---|---|---|---|
| Theoretical Delivery Volume (m³/h) | 30 | 36 | 36 | 44 |
| Concrete Delivery Pressure (MPa) | 9.7 | 8 | 9.7 | 8 |
| Max. Delivery Distance (m) Vertical/Horizontal | 140/500 | 100/400 | 140/500 | 100/400 |
| Power Type | Electric Motor | Electric Motor | Diesel Engine | Diesel Engine |
| Motor/Diesel Power (kW) | 55 | 55 | 82 | 82 |
| Delivery Cylinder Dia. × Stroke (mm) | 180 × 1000 | 200 × 1000 | 180 × 1000 | 200 × 1000 |
| Main Oil Cylinder Dia. × Stroke (mm) | 100 × 1000 | 100 × 1000 | 100 × 1000 | 100 × 1000 |
| Max. Aggregate Size (mm) | 40 | 40 | 40 | 40 |
| Discharge Outlet Diameter (mm) | 150 | 150 | 150 | 150 |
| Feeding Capacity (m³) | 1.2 | 1.2 | 1.2 | 1.2 |
| Feeding Height (mm) | 2150 | 2150 | 2150 | 2150 |
| Mixer Discharge Capacity (m³) | 0.8 | 0.8 | 0.8 | 0.8 |
| Mixer Productivity (m³/h) | 20-25 | 20-25 | 20-25 | 20-25 |
| Dimensions L×W×H (mm) | 3700×2200×2150 | 3700×2200×2150 | 4100×2200×2300 | 4100×2200×2300 |
| Main Machine Weight (kg) | 4200 | 4500 | 4500 | 4700 |
Applications: Where Efficiency Meets Durability
The versatility of the LHBT/R Mixer Pump makes it a staple for various infrastructure projects:
- Rural & Urban Housing: Perfect for pouring floor slabs and columns where space is limited.
- Hydropower & Dam Projects: Handles high-strength concrete mixes with ease.
- Tunneling & Mining: Fits into tight clearances while providing reliable overhead pumping.
- Roads & Bridges: Streamlines the process of onsite casting for culverts and piers.
Optimize Your Workflow Today
Stop wasting time coordinating between separate mixers and pumps. The LHBT/R Vertical Shaft Concrete Mixer Pump is built to withstand the rigors of the jobsite while providing the precision your engineering standards demand.
Increase your output. Decrease your downtime.
Get a Quote
Ready to upgrade your fleet? Contact our technical team today for full specifications, pricing, and shipping details.
