Shanghe Concrete Placing Boom

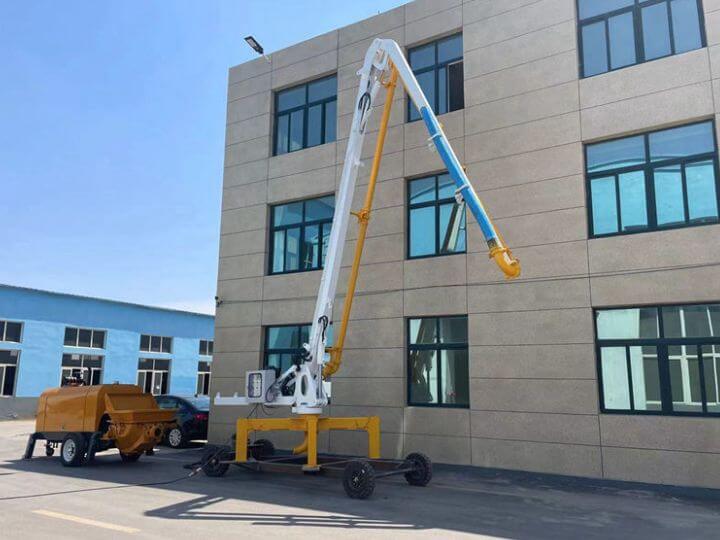

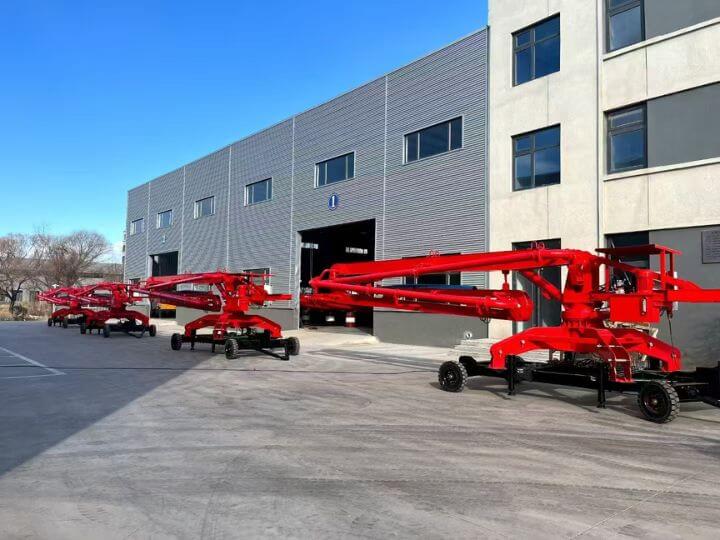

A concrete placing boom, also called a concrete spider placing boom, is a specialized piece of construction equipment designed for the precise placement of concrete. Its defining feature is a multi-articulated, remote-controlled arm that provides exceptional flexibility and reach, allowing it to navigate complex obstacles and deliver concrete to otherwise inaccessible locations on a site. Shanghe has three types of spider placing booms: hydraulic concrete placing boom, crawler concrete placing boom, and self-climbing concrete placing boom.
Key Features
Mobility: Engineered to be compact and lightweight, spider booms can be easily moved around a site, either lifted by crane or driven on their own wheeled or tracked undercarriage.
Maneuverability: The remotely operated, articulated boom offers 360-degree rotation and multiple folding sections, allowing it to precisely place concrete in confined, complex, or elevated areas.
Function: A spider boom is specifically a placing device. It is fed by a separate stationary concrete pump via a pipeline and does not generate the pumping pressure itself.
Stability: Integrated support legs or a self-balancing chassis provide a solid and safe base for operation, typically without the need for significant ground preparation.
Main Applications
Spider booms solve access problems on the most demanding job sites. Key applications include:
- High-Rise Building Construction: For efficient, floor-by-floor placement of structural elements like slabs and shear walls.
- Tunnels, Dams, and Bridges: Where their compact size and maneuverability are critical in constrained spaces.
- Precast Concrete Plants & Industrial Flooring: To meet the precise placement requirements of specialized projects.
- Sites with Limited Access: Effectively navigating low headroom, obstacles, or unstable ground that prohibits larger pumps.
Specification
| Model | HGT21-3R | |||
|---|---|---|---|---|
| Performance | Horizontal reach (m) | 20.6m | ||
| Rotation (°) | 360° | |||
| Elevation angle(°) | 0~80° | |||
| Sleving brake | Normally closed | |||
| Working environment temperature | -5℃~40℃ | |||
| Weight(T) | Without counterweight | 5.0T | ||
| Counterweight | 7T | |||

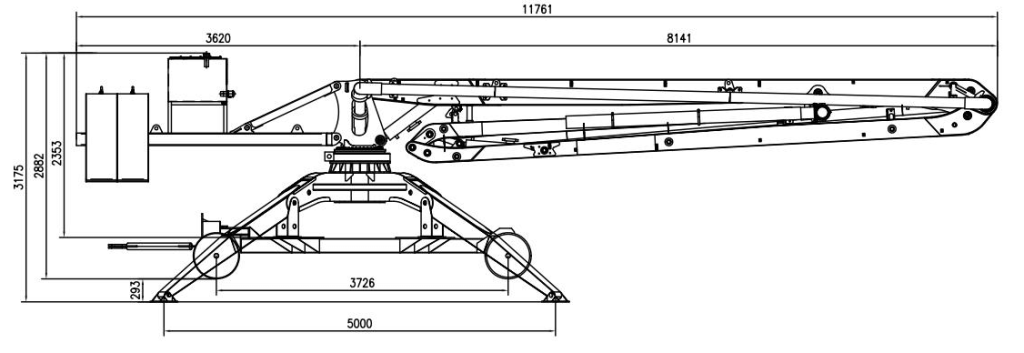

| Outrigger span | 5000 * 5000 | |||
| Traction mechanism wheelbase | 3726 | |||
| Overall dimensions (non-working state) | 1176 * 2200 * 2882 | |||
| Control System | Power | 380V/50HZ | ||
| Output (kW) | 5.5 | |||
| Ptetection grade | IP54 | |||
| Insulation clas | F | |||
| System Pressure(MPa) | 30 | |||
| Control mode | Switching value remote control | |||
| Boom | Boom open way | Three R | ||
| Multiple Unit Valve | Switching Valves | |||
| Inner diameter of delivery pipe (mm) | Φ125 | |||
| End rubber hose (m) | 3 | |||
| Corner (°) | 80/180/195 | |||
