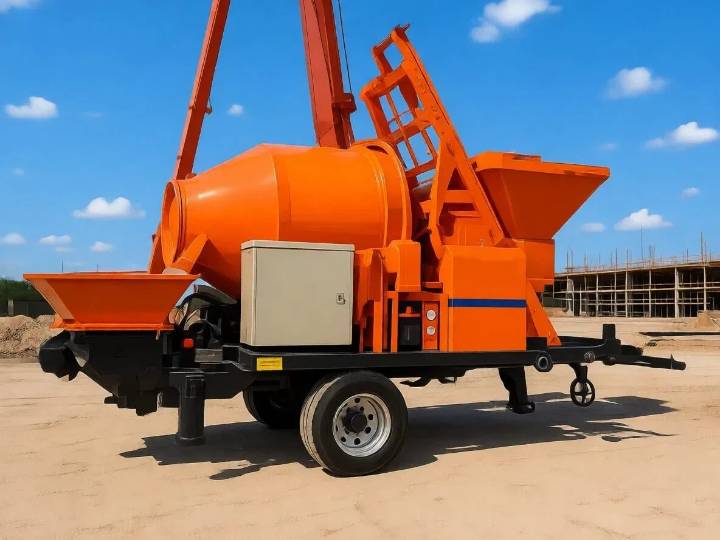

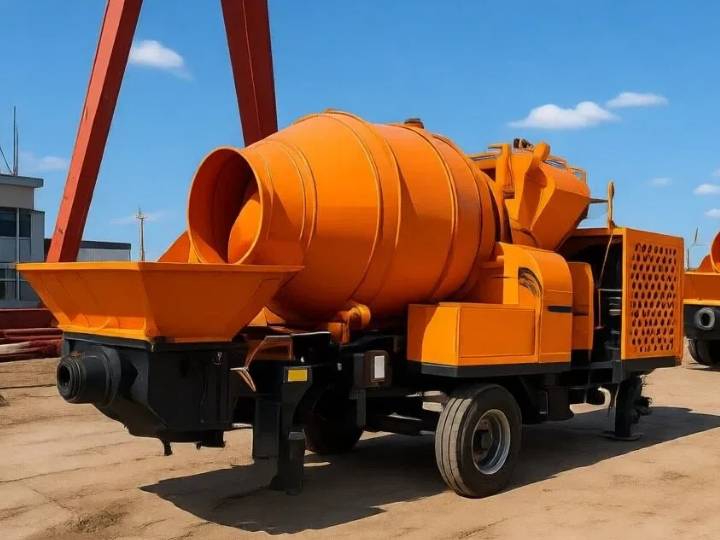

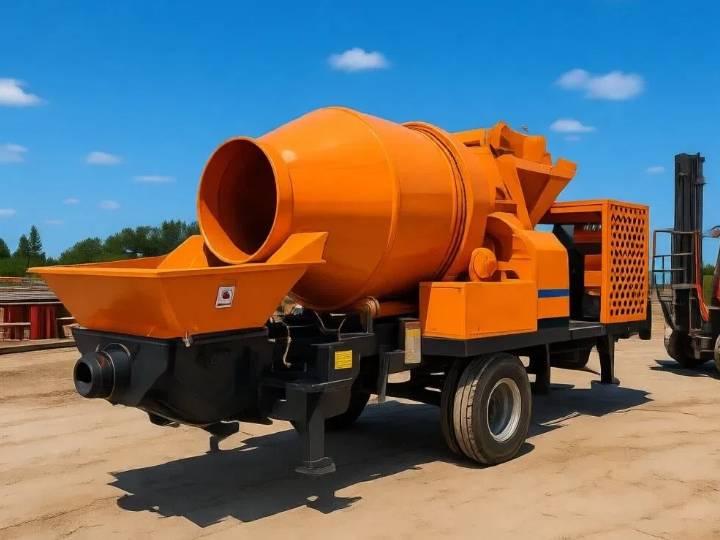

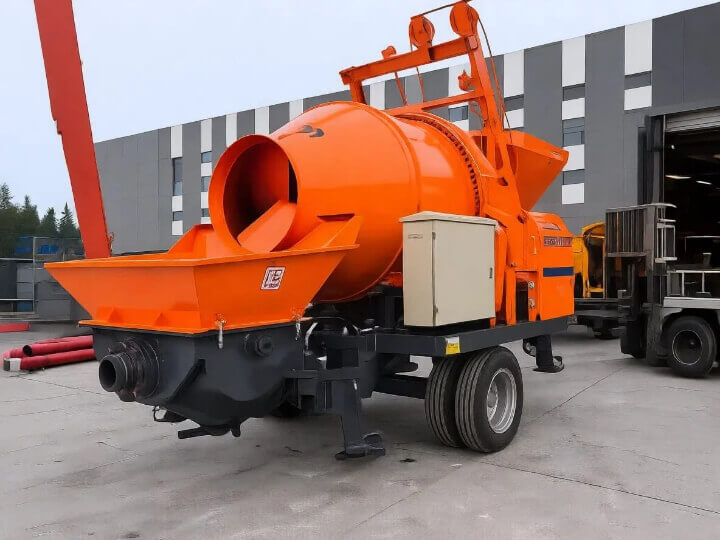

Shanghe JBS-R Diesel Concrete Mixer Pump
This JBS-R Diesel Concrete Mixer Pump utilizes a diesel engine to power an integrated system that combines a drum mixer with a concrete pump. The system handles large-aggregate concrete, fine-stone concrete, and mortar with ease. It specifically serves projects with moderate volumes that require frequent relocation. These products have gained significant popularity in international markets and regions with limited electrical infrastructure.
Technical Features
- Integrated Control System: The system integrates mixing and pumping functions into a single interface. A wireless remote control simplifies operation, improves reliability, and reduces labor costs.
- Double-Layer Electrical Box: The specialized dual-layer design provides a superior seal, effectively protecting internal components from dust and water.
- High-Stability Chassis: Dual-axle (double-row) tires support heavy loads and provide excellent stability, allowing the unit to navigate rugged and uneven terrain easily.
- Labor-Saving Distribution: When paired with our company’s simplified placing boom, the system reduces physical labor and extends the pouring radius to 8 meters.
| Feature | Benefit |
| Diesel Power | Enables operation in remote areas without electricity. |
| Dual-Row Tires | Increases load capacity and prevents tipping on soft soil. |
| Wireless Remote | Allows a single operator to manage the entire pour from the best vantage point. |
Application
The JBS-R diesel concrete mixer pump is widely used in:
- Residential building construction
- Rural housing and infrastructure projects
- Road and bridge construction
- Water conservancy projects
- Tunnels and culverts
- Factory and warehouse foundations
It performs reliably in both urban and remote construction environments.
Why Choose JBS-R Diesel Mixer Pump
Choosing the JBS-R diesel concrete mixer pump means choosing:
- Higher construction efficiency
- Lower operating and labor costs
- Strong adaptability to harsh environments
- Stable and continuous concrete pumping
- Excellent return on investment
For contractors and construction companies aiming to improve productivity while controlling costs, the JBS-R series is a proven and trusted solution.
Structure
- Power System
The diesel-powered models use Yuchai, Weichai-Deutz, or Cummins diesel engines; the electric-powered models use motors from well-known domestic and international brands such as Wannan, Mengniu, and Siemens Nordde.
2. Hydraulic System
The main oil pump is from Kawasaki, and the valves are from Italian companies such as Wald or OM.
3. Lubrication System
This equipment is equipped with a high-pressure automatic centralized lubrication system, which can continuously provide stable lubrication. Its core feature is the use of a progressive distributor, which can precisely and systematically supply oil to each lubrication point. Users can customize the lubrication time, and the entire system ensures accurate oil injection while also achieving efficient utilization and conservation.
4. Control System
An Omron PLC-based control system manages the equipment, while a wireless remote control adds operational flexibility. By integrating high-end electrical components from Schneider Electric, Omron, or Siemens, the system guarantees superior hardware reliability.
5. Cooling system
To ensure continuous and stable operation of the equipment and achieve energy conservation and consumption reduction, this system adopts a high-efficiency cooling design. Its core lies in the inclusion of an air-cooled plate-fin radiator, which ensures that the operating temperature of the diesel concrete pump system is always maintained within the maximum permissible limit.
Specification
| Performance Parameters | JBS30R | JBS40R |
|---|---|---|
| Theoretical Output (m³/h) | 30 / 23 | 40 |
| Concrete Pumping Pressure (MPa) | 9 | 10 |
| Max. Delivery Distance (Vertical / Horizontal, m) | 120 / 500 | 140 / 600 |
| Diesel Engine Power (kW) | 66 | 82 |
| Delivery Cylinder Diameter × Stroke (mm × mm) | 140 × 1000 | 180 × 1000 |
| Main Oil Cylinder Diameter × Stroke (mm × mm) | 80 × 1000 | 100 × 1000 |
| Max. Aggregate Size (mm) | 30 | 40 |
| Mixer Motor Power (kW) | 5.5 | 5.5 |
| Feeding Motor Power (kW) | 5 | 5 |
| Feeding Hopper Capacity (m³) | 0.8 | 0.8 |
| Mixer Discharge Capacity (m³) | 0.45 | 0.45 |
| Mixer Productivity (m³/h) | 10–14 | 10–14 |
| Overall Dimensions (L × W × H, mm) | 4500 × 2200 × 2600 (Transport Height) | 4500 × 2200 × 2600 (Transport Height) |
| Main Machine Weight (kg) | 4800 | 5200 |
