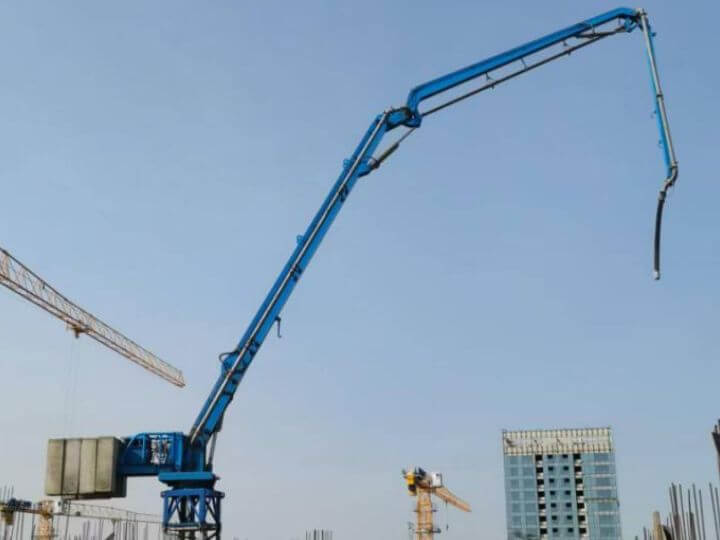

Self-climbing Concrete Placing Boom

Shanghe Concrete Placing Boom

A concrete placing boom, also called a concrete spider placing boom, is a specialized piece of construction equipment designed for the precise placement of concrete. Its defining feature is a multi-articulated, remote-controlled arm that provides exceptional flexibility and reach, allowing it to navigate complex obstacles and deliver concrete to otherwise inaccessible locations on a site. Shanghe has three types of spider placing booms: hydraulic concrete placing boom, crawler concrete placing boom, and self-climbing concrete placing boom.

Key Features

Mobility: Engineered to be compact and lightweight, spider booms can be easily moved around a site, either lifted by crane or driven on their own wheeled or tracked undercarriage.

Maneuverability: The remotely operated, articulated boom offers 360-degree rotation and multiple folding sections, allowing it to precisely place concrete in confined, complex, or elevated areas.

Function: A spider boom is specifically a placing device. It is fed by a separate stationary concrete pump via a pipeline and does not generate the pumping pressure itself.

Stability: Integrated support legs or a self-balancing chassis provide a solid and safe base for operation, typically without the need for significant ground preparation.

Main Applications

Spider booms solve access problems on the most demanding job sites. Key applications include:

• High-Rise Building Construction: For efficient, floor-by-floor placement of structural elements like slabs and shear walls.
• Tunnels, Dams, and Bridges: Where their compact size and maneuverability are critical in constrained spaces.
• Precast Concrete Plants & Industrial Flooring: To meet the precise placement requirements of specialized projects.
• Sites with Limited Access: Effectively navigating low headroom, obstacles, or unstable ground that prohibits larger pumps.

Specification
