Description

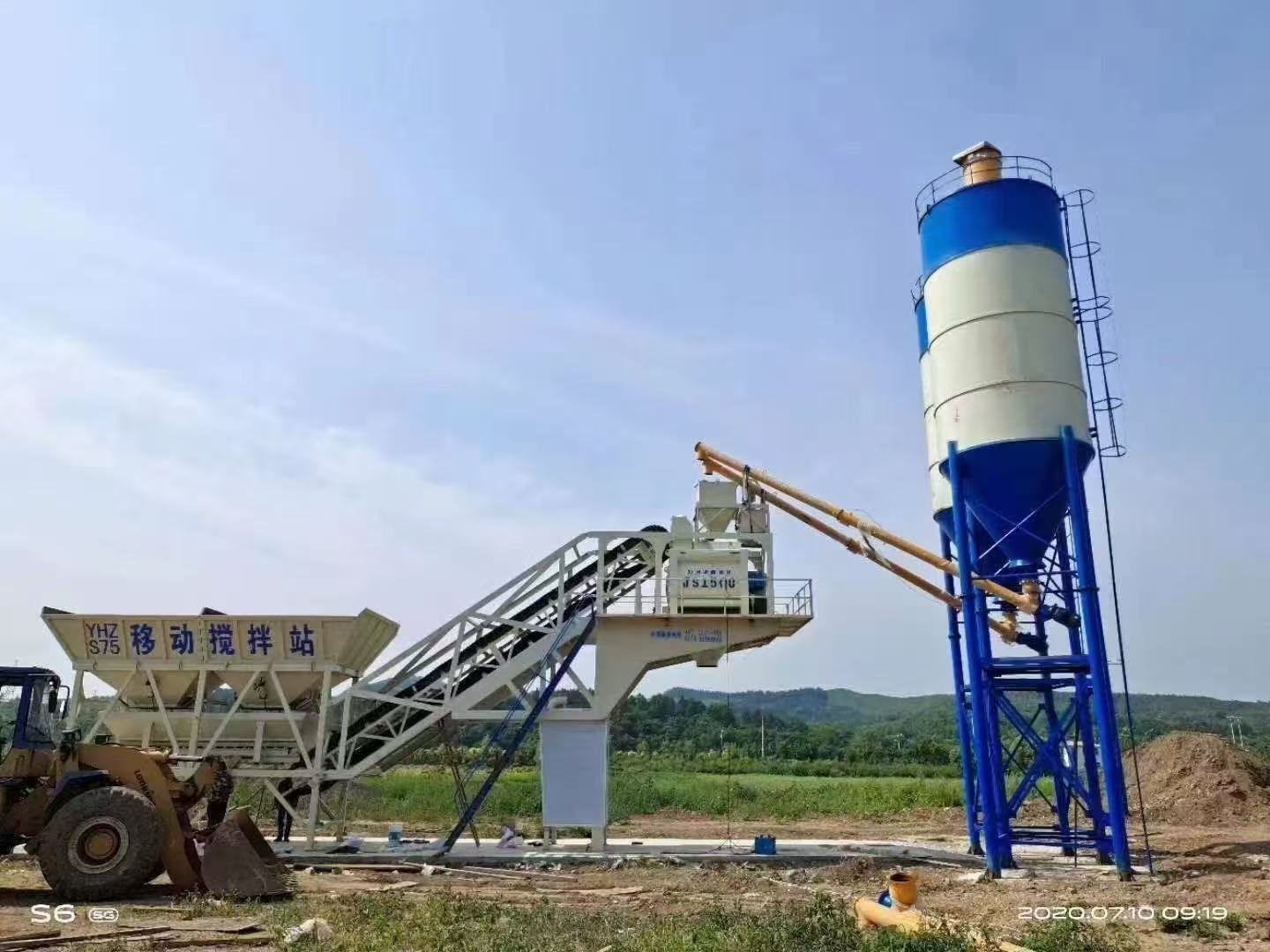

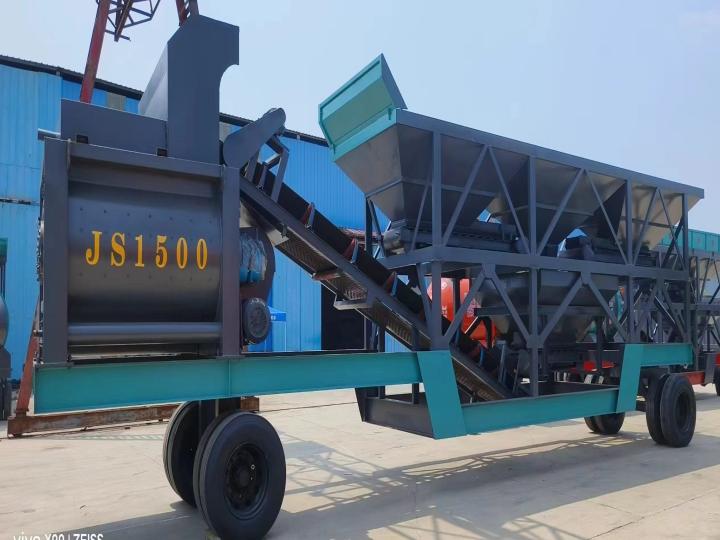

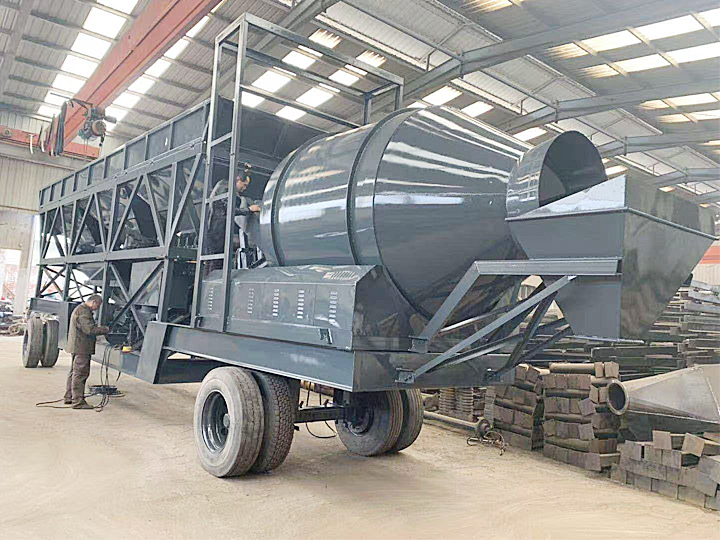

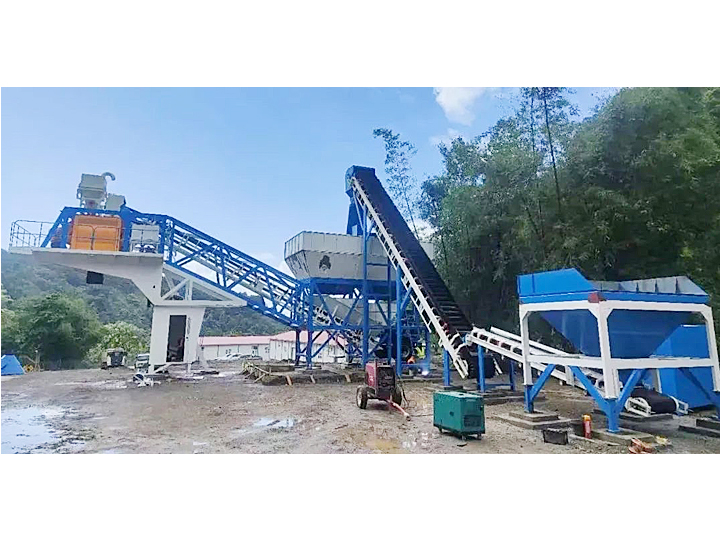

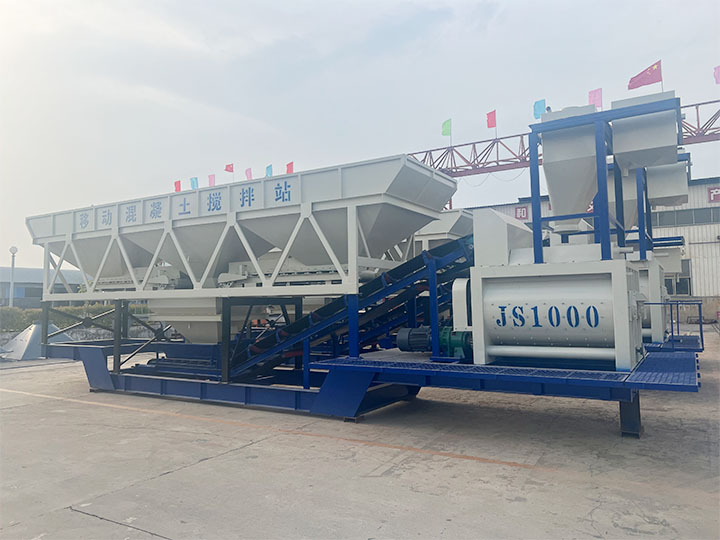

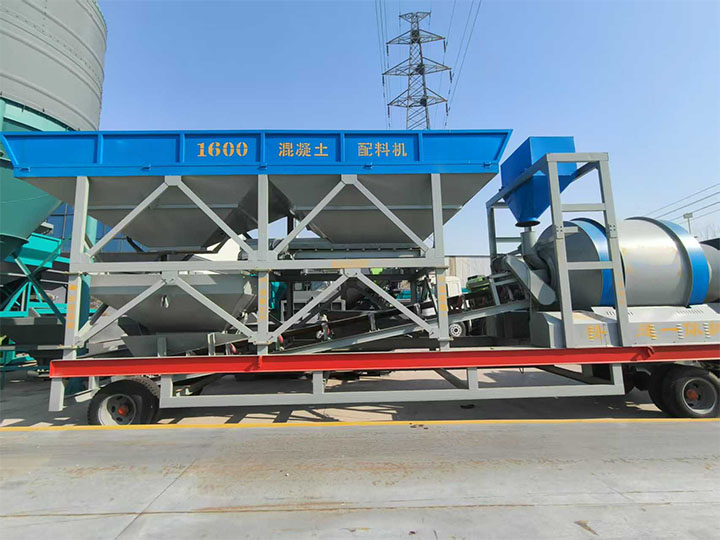

Mobile Concrete Mix Plant
No need to prepare foundation; can be towed to move immediately; lower cost to start the project

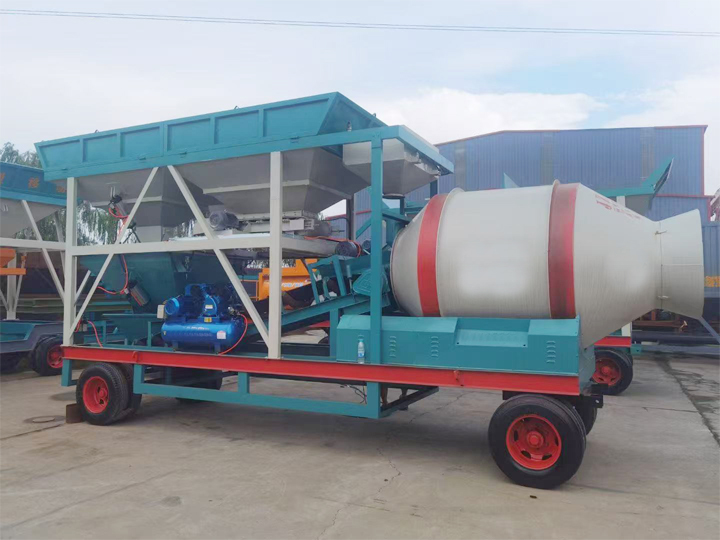

Compact Mobile Concrete Mixing Plant
Simple structure design; compact design to occupy small area; save time and cost for installation. It is mainly use for self-owned projects and low capacity commercial concrete for sale.
Specification
| Model | YHZS-25 | YHZS-35 | YHZS-60 | YHZS-100 |
| Production capacity (m3/h) | 20-25m³ | 30-35m³ | 55-60m³ | 95-100m³ |
| Concrete mixer | JS500 | JS750 | JS1500 | JS2000 |
| Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 1.5 | |||
| Aggregate weighing accuracy (%) | ±2 | |||
| Cement weighing accuracy (%) | ±1 | |||
| Water weighing accuracy (%) | ±1 | |||
| Additive weighing accuracy (%) | ±1 | |||
| Control system | control panel | |||
| Total power (kw) | 42 | 46 | 67 | 77.5 |
| Total weight(t) | 12 | 13 | 14.5 | 26 |
