Description

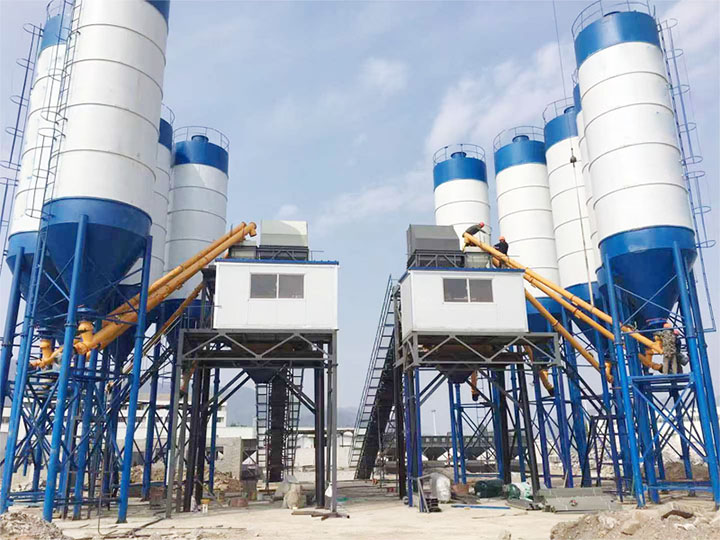

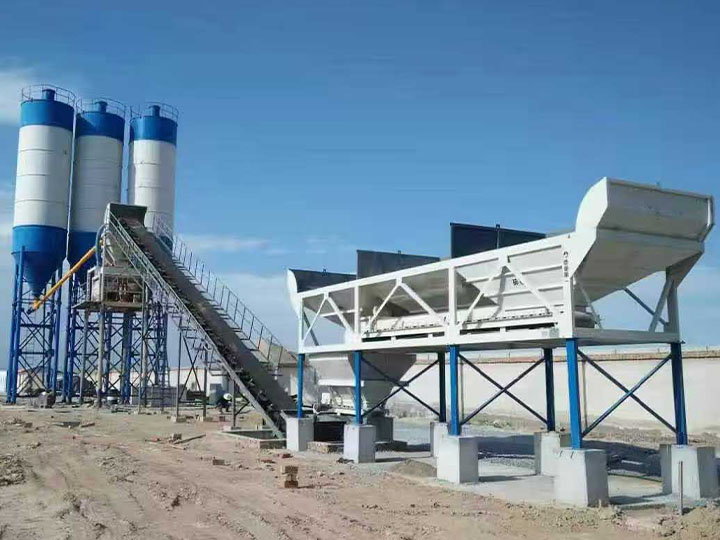

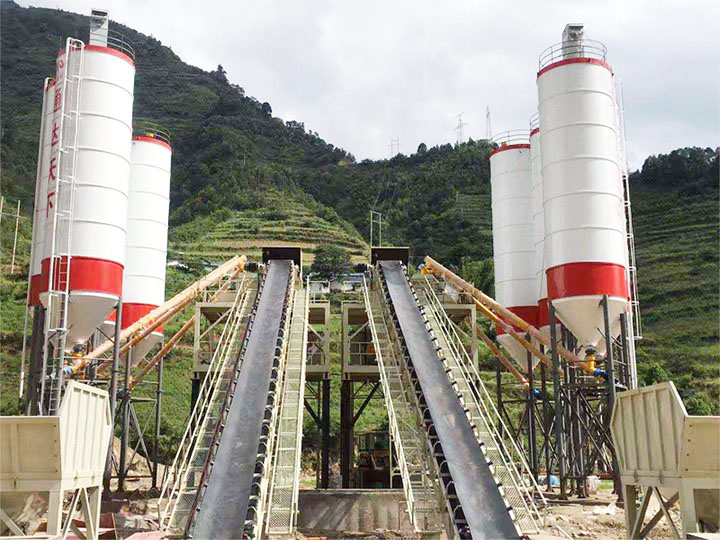

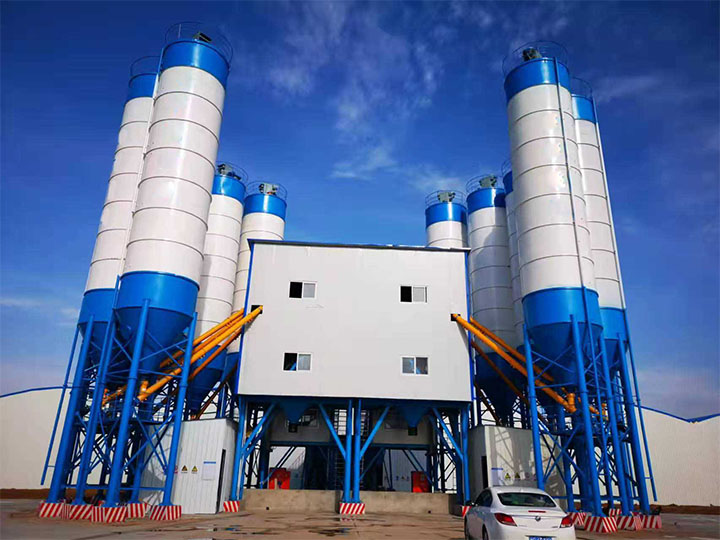

HZS series is a new kind of compulsory volumetric concrete mixing equipment . It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.
And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It’s have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.

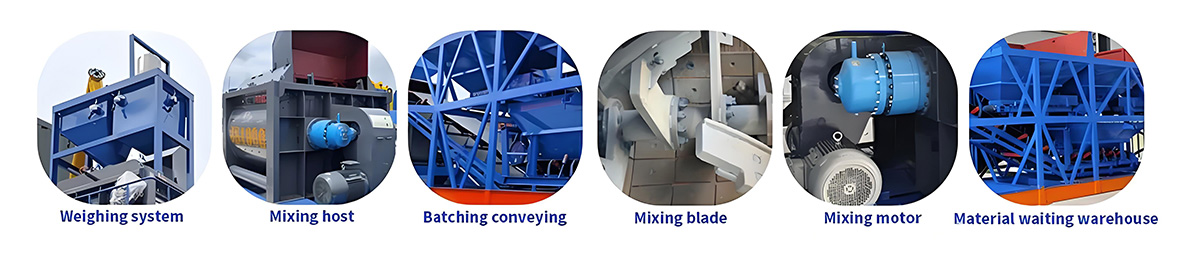

System
- Concrete Batching Plant: batching machine,concrete mixer,mixing host,cement silo,control room,fully automatic control system.
- Mixing system: Equipped with high -wear -resistant alloy stirring arms, high abrasion resistance and strong impact resistance.
- Ingredient system: Microcomputer remote control operation, fast accurate ingredients, simple operation, and strong control function.
- Reservoir system: The cement warehouse tank is equipped with a capacity system, which prevent powder from arched.
- Conveyor system: Run smoothly, automated, centralized control; long -distance transportation, large transport volume, continuous transportation and other advantages.
- Measuring system: Water, cement powder, and external agents are measured by electronic scale; precise ingredients, stable structure.
- Control System: Remote management, intelligent control, manual control, and equipment have functions such as alarm correction and operation monitoring.
Advantages
The modular design to make quickly installation and relocation.
The fully automatic control system to make easily operation and reduce the civil workers.
The external packing of the mixing tower and main conveyor to reduce the dust and avoid noise.
Specification
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
| Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 60 | 78.5 | 111 | 145 | 110 | 198.06 | 210 | 230 | 288 |
