Description

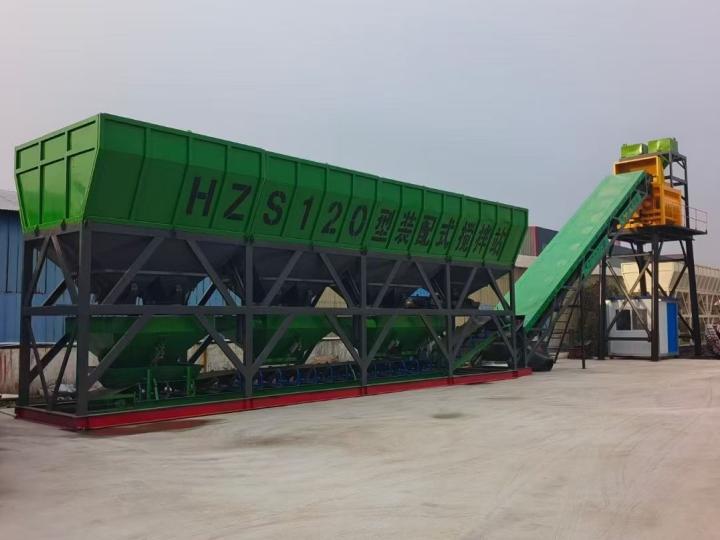

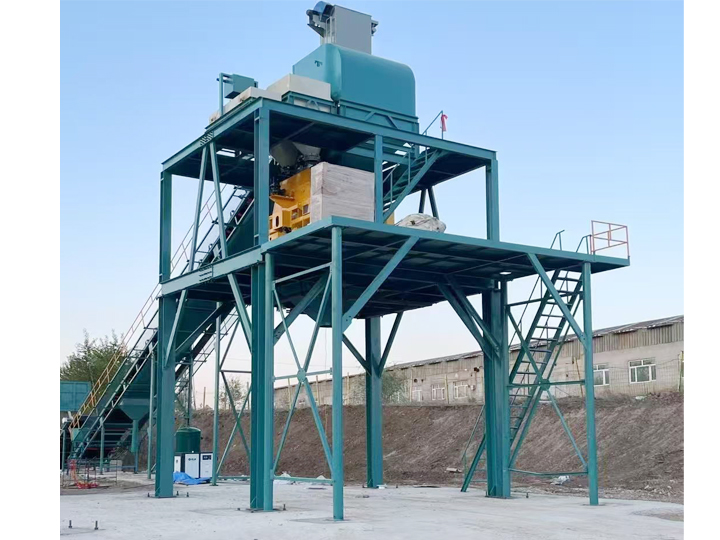

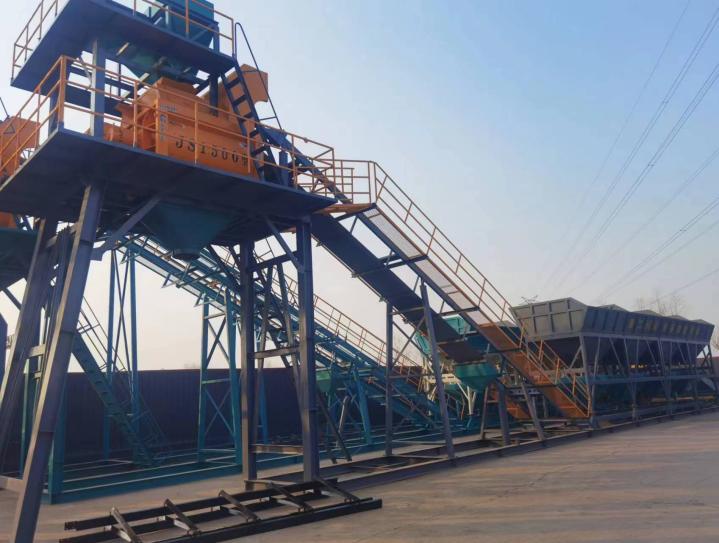

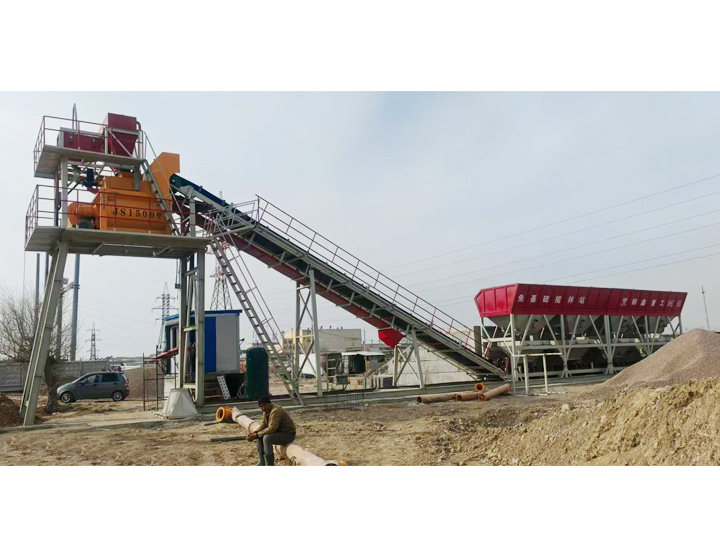

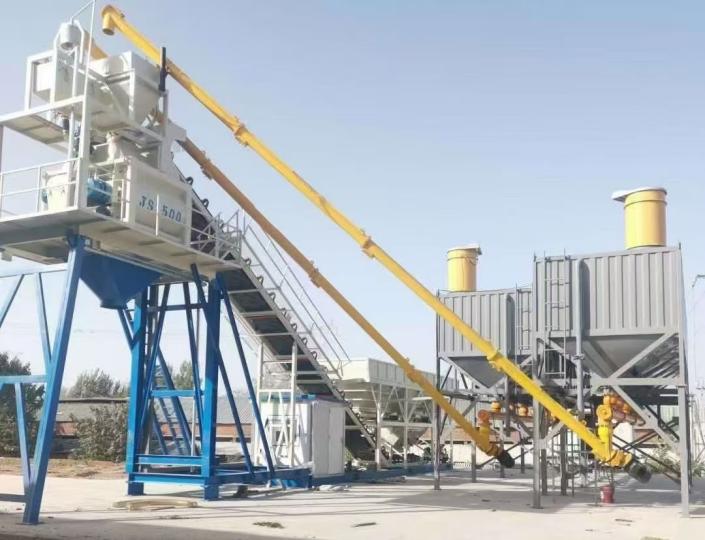

Our foundation-free concrete mixing station is a standard concrete mixing station. It consists of aggregate batching machine, forced concrete mixer, cement silos, screw conveyor, belt conveyor and a centralized control system.
Application
It uses H-shaped steel as the foundation and a combined assembly structure, which is very convenient for installation and relocation. It is widely used in industrial and civil construction projects such as roads, bridges, water conservancy, and docks. It can mix dry hard concrete,
plastic concrete, fluid concrete, lightweight aggregate concrete and various mortars. It is an efficient engineering model with good mixing effect. It can meet the needs of rapid production in a short period of time and has the characteristics of fast production speed and low cost.
Advantages
The foundation-free concrete batching plant is a new type of concrete production equipment. Its biggest feature is that it does not require a traditional concrete foundation. It has the advantages of fast installation, flexible transfer, and cost savings. It is widely used in temporary projects, construction in remote areas, or projects that require frequent relocation.The following are its core features and introduction:
1. Foundationless design:
Adopting modular steel structure frame and container design, it can be directly installed on flat hardened ground (such as steel plate or prefabricated roadbed), avoiding the tedious process of pouring concrete foundation for traditional mixing plants.
2. Quick installation and disassembly:
Modular components are connected by bolts, and the installation time can be shortened to 1-3 days (traditional plants require 1-2 weeks), which is suitable for projects with tight construction schedules.
3.Flexible transfer:
It can be moved as a whole or transported in modules, with high reuse rate and reduced equipment idle cost.
Specification
| Model | HZS60 | HZS90 | HZS120 | HZS180 | ||
| Overall | Type | Foundation Free Concrete Batching Plant | ||||
| Parameters | Overall | Theoretical productivity | 60m³/h | 90m³/h | 120m³/h | 180m³/h |
| Parameters | ||||||
| Discharging height | 0-3800mm | 0-3800mm | 0-4200mm | 0-4500mm | ||
| Working cycle time | 60s | 60s | 60s | 60s | ||
| Mixing System | Mixer Model | JS1000 | JS1500 | JS2000 | JS3000 | |
| Mixing motor power | 2*18.5KW | 2*30KW | 2*37KW | 2*55KW | ||
| Capacity | 1 m3 | 1.5 m3 | 2 m3 | 3 m3 | ||
| Max Aggregate Size | 60/80mm | 60/80mm | 60/80mm | 60/80mm | ||
| Mixing Shaft Speed | 25.5 r/min | 25.5 r/min | 23 r/min | 23 r/min | ||
| Batching | Model | PLD1600 | PLD2400 | PLD3200 | PLD4800 | |
| system | Aggregate Bins | 2/3 | 2/3 | 3/4 | 4 | |
| Motor Power | 3KW | 3KW | 4KW | Motorized Rollar | ||
| Weighing Hopper Vol. | 800L | 1200L | 1600L | 2400L | ||
| Pneumatic System | Air Compressor | 0.25 | 0.36 | 0.6 | 1 | |
| Rated Air Displacement | 0.25m³/min | 0.36m³/min | 0.6m³/min | 1m³/min | ||
| Rated Air Pressure | 0.8Mpa | 0.8Mpa | 1.25Mpa | 1.25Mpa | ||
| Motor Power | 2.2kw | 3kw | 4kw | 7.5kw | ||
| Weighing System | Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% | |
| Cement Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | ||
| Water Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | ||
| Additive Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | ||
