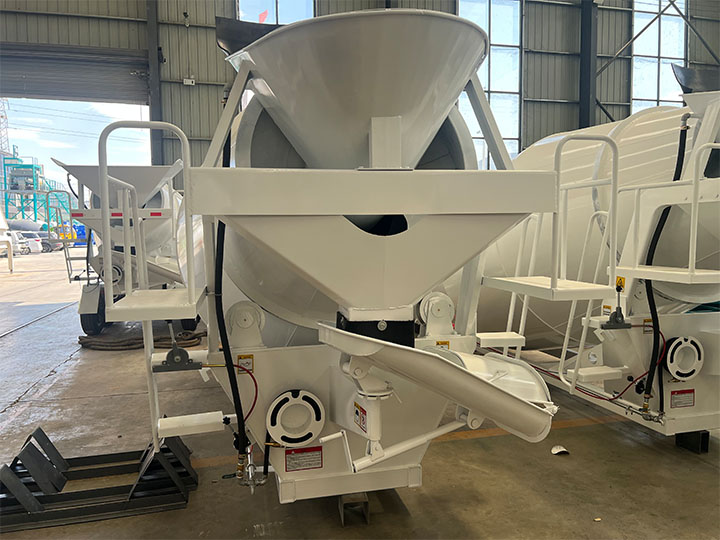

Description
- Mixing capacity: 2-10m³/batch
- Mixing mechanism: the free mechanism, stirring according to the rotating movement of the mixing drum
- Low mobility. The machine is usually fixed in place or pulled at a close distance.
- Specialized for mixing slurry, mortar and flexible concrete. Combined with trucks to transport concrete over long
- Feeding: using an excavator
- Discharding: concrete mixture is discharged by reversing the mixing tank

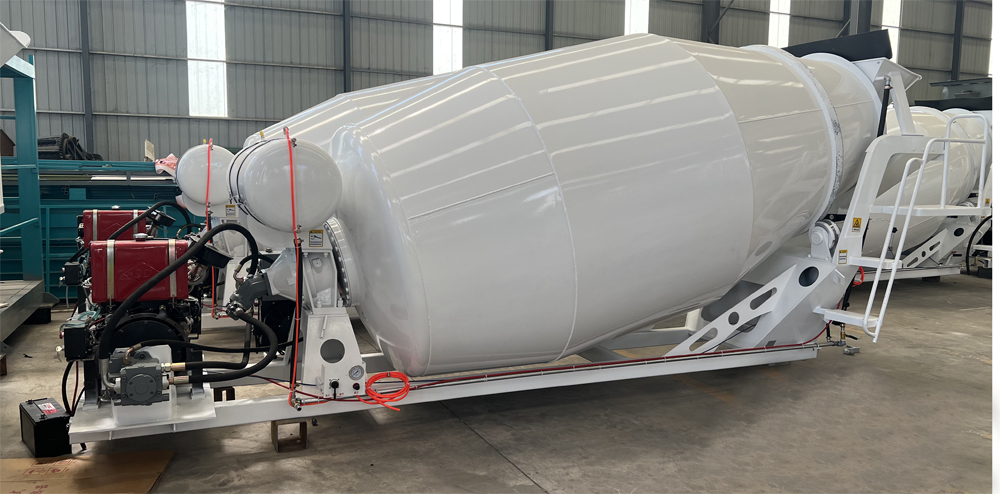

Get everything you want with our concrete trailer
An Off-Grid Solution

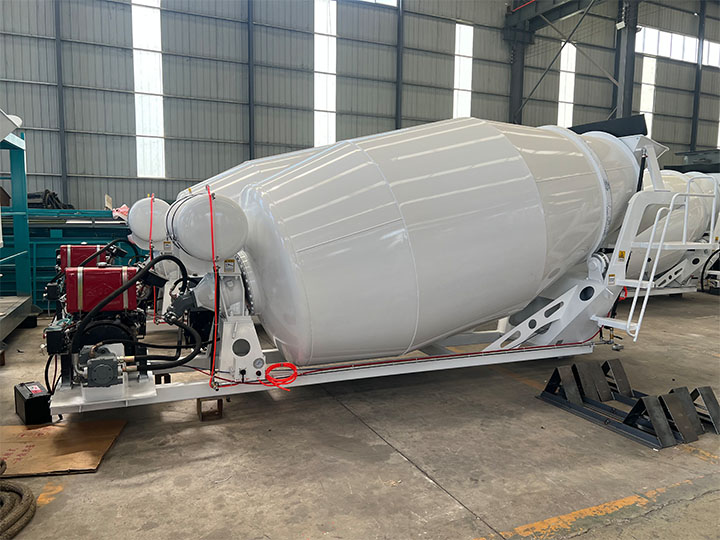

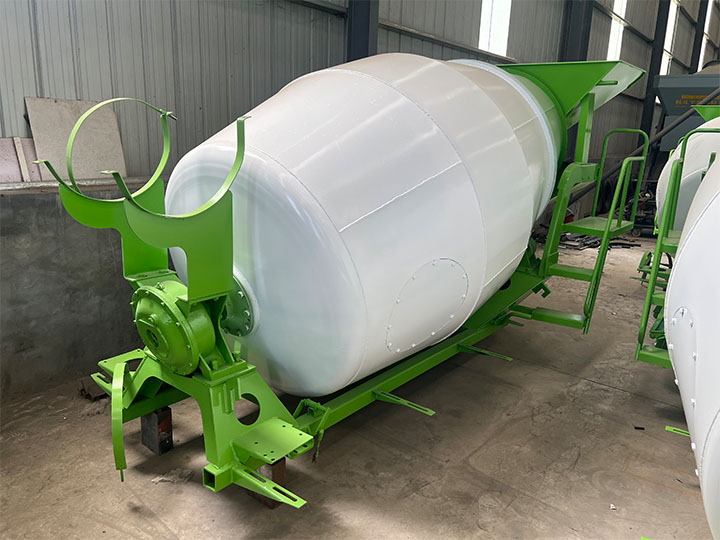

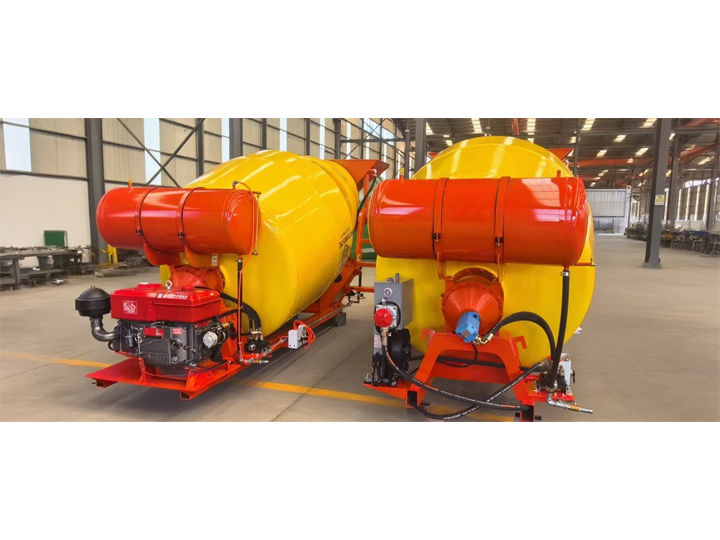

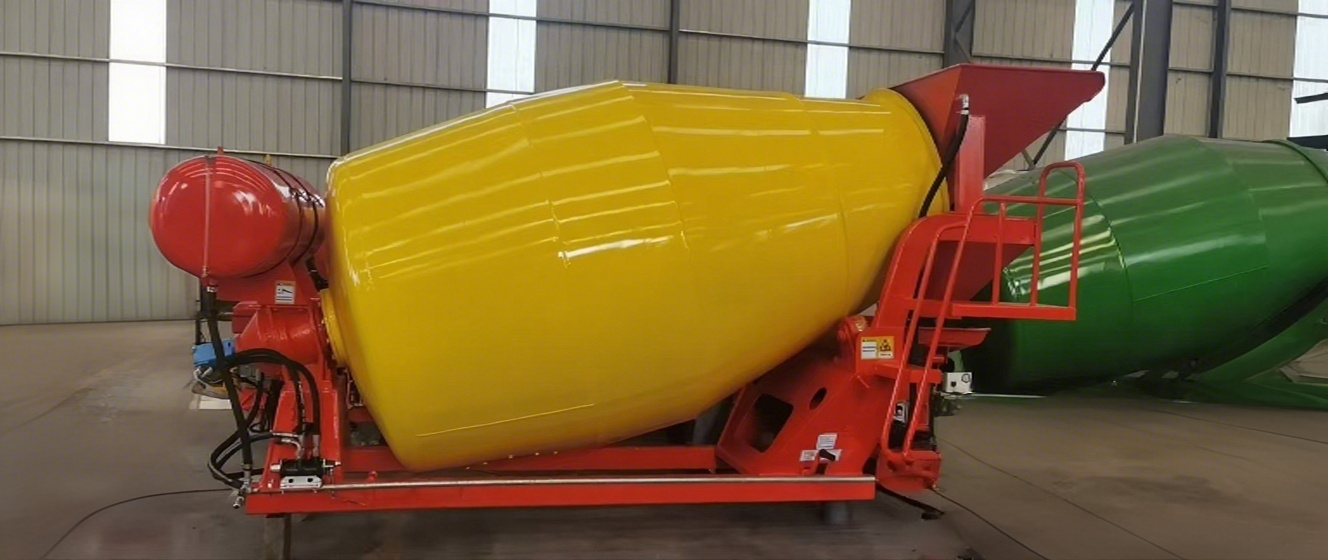

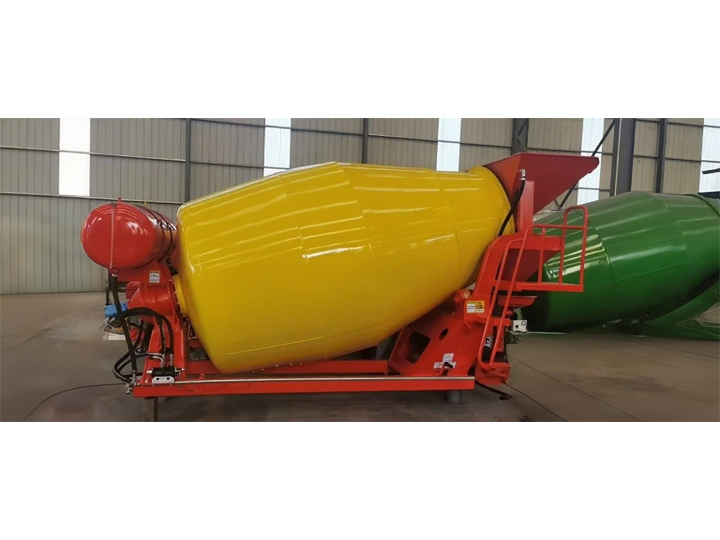

Shanghe’s portable mixer concrete skid alows you to mount the mixing unit on a trailer, truck, floor stand or move it with a forklift.

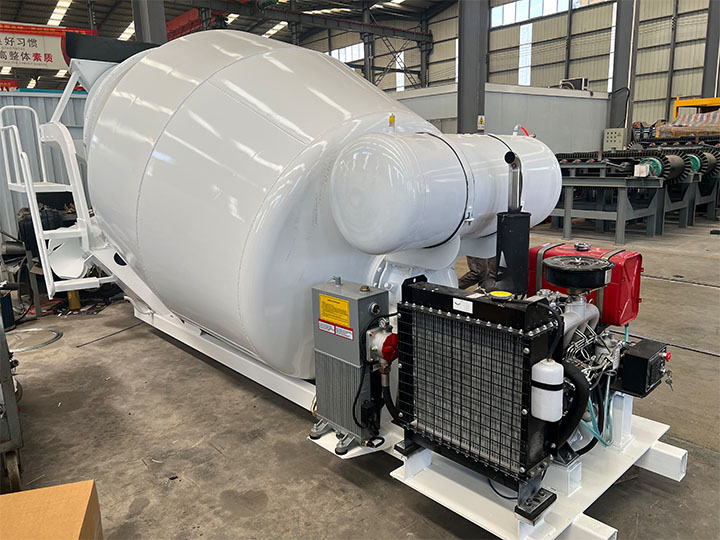

It is designed so that diferent power engines (not motor driven) and hydrauic power systems can be moved with the unit. No auxiiary power unit is required.

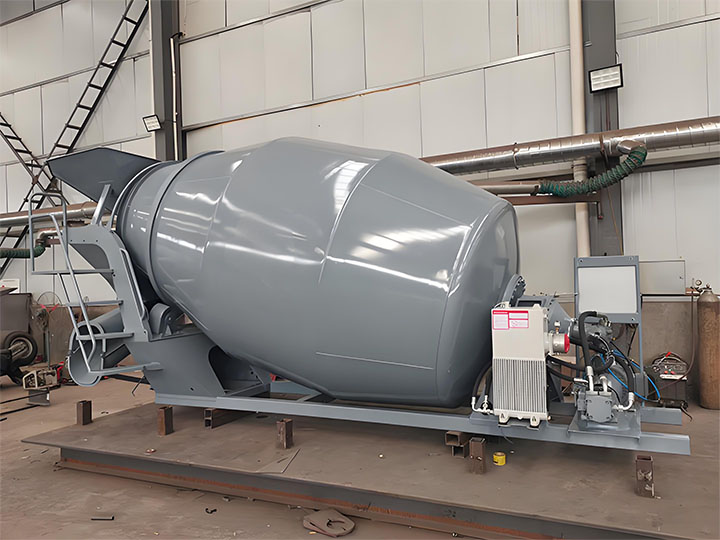

fyou are working indoors,you can choose an electric motor and electrical control panel to power the hvdraulic operaton.If diese or gasoline a power source that beter suits your needs, you can use this option

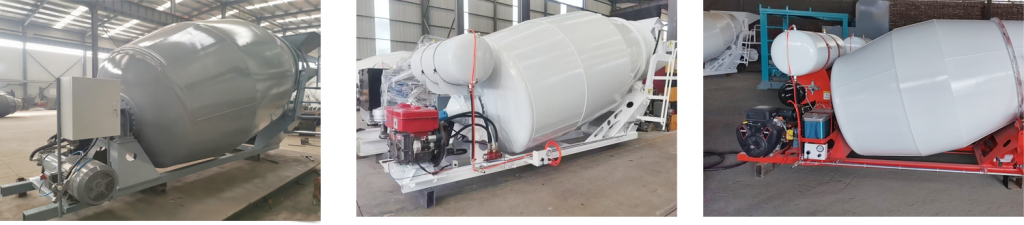

DlY your own traction power chassis

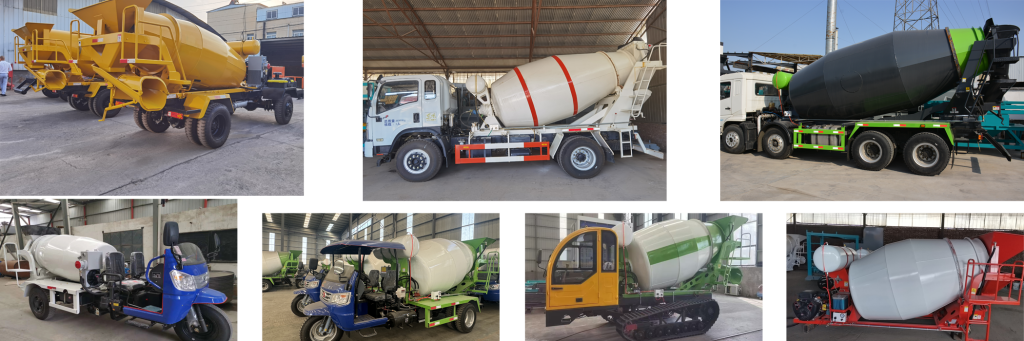

You can choose to buy our portable concrete mixer and modify it to suit your needs, You can also provide us with your drawings or ideas and we will help you realize the machine you want.

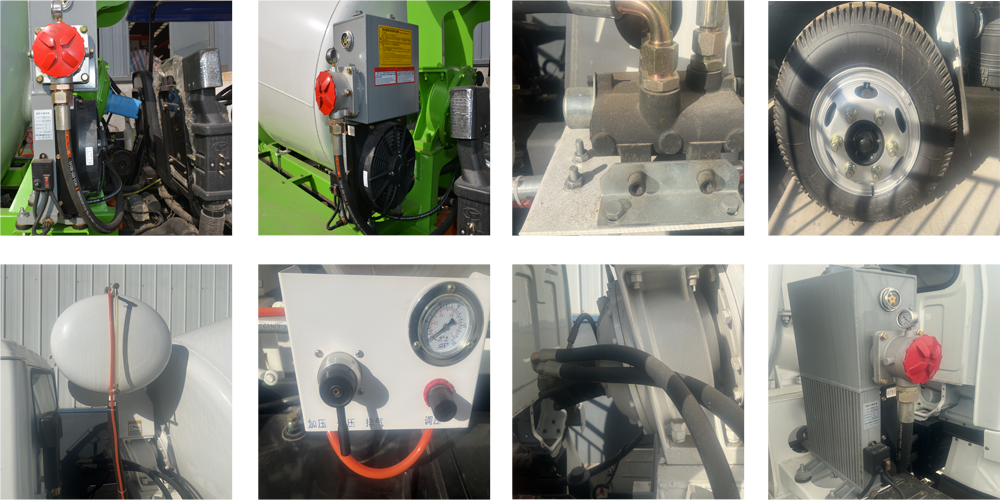

Available add-ons for concrete mixer trailers:
| Type | 2m³ | 3m³ | 4m³ | 5m³ | 6m³ | 7m³ | 8m³ | 9m³ | 10m³ |
| Geometric Volume | 3.6m³ | 5.2m³ | 6.1m³ | 8.5m³ | 9.6m³ | 10.2m³ | 11.8m³ | 13.2m³ | 15m³ |
| Diameter of Drum | 1.6M | 1.8M | 1.8M | 2.05M | 2.05M | 2.15M | 2.2M | 2.3M | 2.3M |
| Angle of Inclination | 13° | 15° | 15° | 14° | 14° | 16° | 16° | 14° | 14° |
| Overall Size | 3750*1600*1810 | 4220*1800*2160 | 4610*1800*2215 | 4690*2050*2320 | 5100*2050*2432 | 5180*2150*2510 | 5374*2200*2573 | 5640*2300*2687 | 6120*2300*2742 |
| Size of installing base | 760*2750 | 800*3300 | 800*3600 | 800*3900 | 800*4200 | 800*4200 | 860*4530 | 860*4900 | 860*5300 |
| Rotation Speed | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-14r/min | 0-14r/min |
| Hydraulic Oil cooler | 16L | 16L | 16L | 16L | 18L | 18L | 18L | 20L | 20L |
| Total Weight | 1200KG | 1400KG | 1500KG | 2280KG | 2330KG | 2450KG | 2670KG | 2980KG | 3210KG |
Choosing the Right Manufacturer: Reliability, Support, and Warranty Considerations
Choosing the right Portable concrete mixer manufacturer requires careful evaluation of thre key factors: reliability, after-sales support,and warany terms.These factors direcly affect operational efficiency, long-term costs, and project success.
| Relabllty. Proven track record industry experience: Look for manufacturers with a decade or more of experise in designing and manufacturing Portable concrete mixer Qualifications: 1S0, CE or other global standards ensure compliance with safety and quality benchmarks. Customer testimonials: Project examples or testimonials from customers in similar industries verify the actual performance of the equipment. |
| After-Sales Support: Minimize Downtime 24/7 Technical Assistance: Rapid response team to troubleshoot and resolve issues promptly. Training Programs: Onsite or virtual operator training to maximize plant efficiency and reduce operating errors Spare Parts Availability: Quick and easy access to mobile concrete plant spare parts to minimize downtime during maintenance. |
| Waranty: Protect your investment Coverage duration: Standard waranties are usually one year, but extended waranties can provide added peace of mind. Inclusions: Clarify which components are covered. Exclusions: Look out for exclusions such as wear parts or clauses regarding misuse. |
