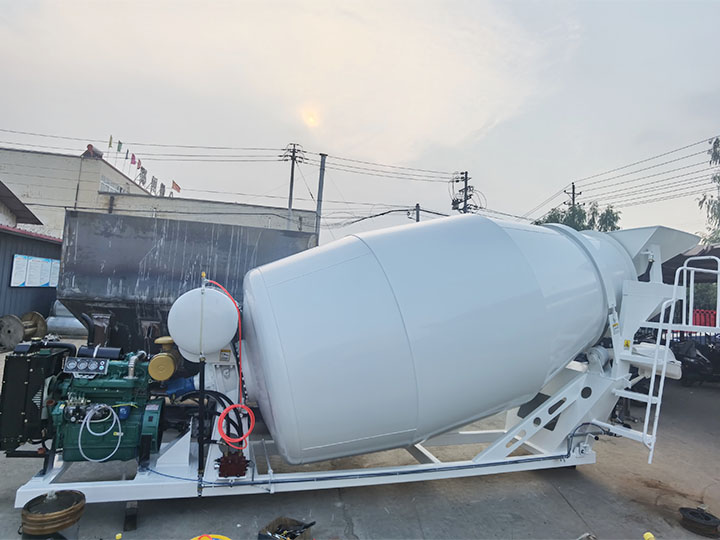

Description
- Mixing capacity: 2-10m³/batch
- Mixing mechanism: the free mechanism, stirring according to the rotating movement of the mixing drum
- Low mobility. The machine is usually fixed in place or pulled at a close distance

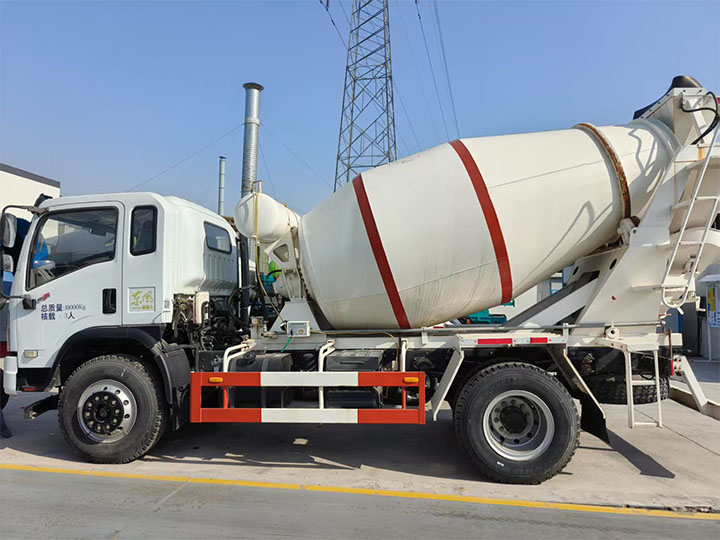

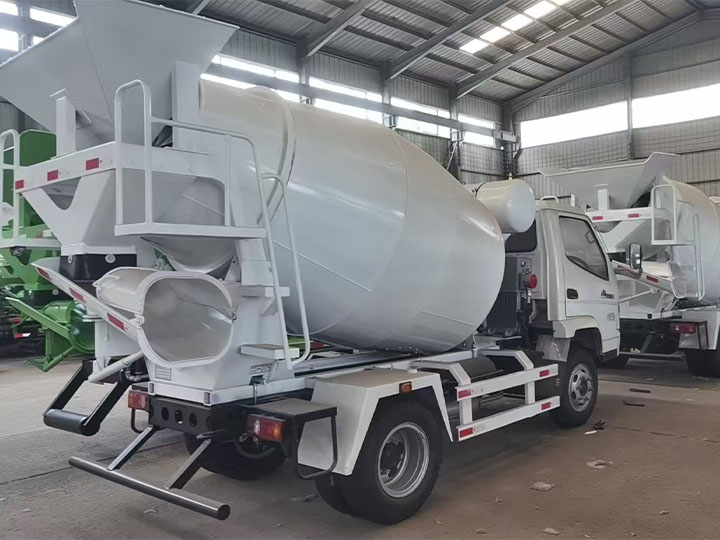

- Specialized for mixing slurry, mortar and flexible concrete. Combined with trucks to transport concrete over long
- Feeding: using an excavator
- Discharding: concrete mixture is discharged by reversing the mixing tank
Specification
Type | 2m³ | 3m³ | 4m³ | 5m³ | 6m³ | 7m³ | 8m³ | 9m³ | 10m³ |
Geometric Volume | 3.6m³ | 5.2m³ | 6.1m³ | 8.5m³ | 9.6m³ | 10.2m³ | 11.8m³ | 13.2m³ | 15m³ |
Diameter of Drum | 1.6M | 1.8M | 1.8M | 2.05M | 2.05M | 2.15M | 2.2M | 2.3M | 2.3M |
Angle of Inclination | 13° | 15° | 15° | 14° | 14° | 16° | 16° | 14° | 14° |
Overall Size | 3750*1600*1810 | 4220*1800*2160 | 4610*1800*2215 | 4690*2050*2320 | 5100*2050*2432 | 5180*2150*2510 | 5374*2200*2573 | 5640*2300*2687 | 6120*2300*2742 |
Size of installing base | 760*2750 | 800*3300 | 800*3600 | 800*3900 | 800*4200 | 800*4200 | 860*4530 | 860*4900 | 860*5300 |
Rotation Speed | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-10r/min | 0-14r/min | 0-14r/min |
Hydraulic Oil cooler | 16L | 16L | 16L | 16L | 18L | 18L | 18L | 20L | 20L |
Total Weight | 1200KG | 1400KG | 1500KG | 2280KG | 2330KG | 2450KG | 2670KG | 2980KG | 3210KG |
