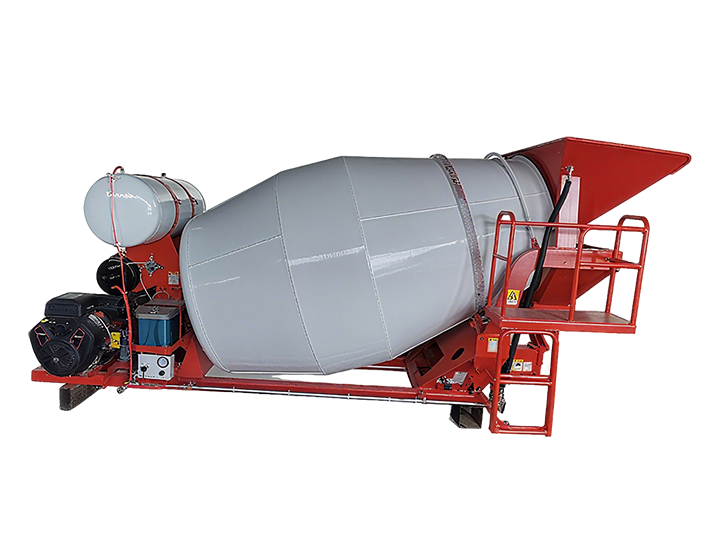

Shanghe Concrete Mixer Tank
As the heart of the mixer, the concrete mixing drum blends cement, water, and aggregates into a consistent, usable material. This core component drives the entire mixing process to deliver superior results. Its design is critical to achieving a consistent mix and directly influences the machine’s application, from small-scale projects to large industrial sites.
Key Features
- Mixing capacity: 2-10m3/batch.
- Mixing mechanism: The free mechanism rotates the mixing drum to stir the materials thoroughly.
- Low mobility: The design allows for either a permanent stationary mounting or localized transport via a towing hitch.
- Specialized for mixing slurry, mortar, and flexible concrete. Combined with trucks to transport concrete over long.
- Feeding: using an excavator.
- The mixing tank discharges the concrete mixture by reversing its rotation.
Ideal Users for This Mixer Truck
We engineered our Trailer Concrete Mixer Truck for construction professionals and project managers who prioritize versatility. Furthermore, this mobile solution streamlines both mixing and transport, allowing teams to handle complex job site demands with a single, efficient machine. It is ideal for:
- Residential and commercial building sites
- Road, bridge, and infrastructure projects
- Remote construction locations without fixed batching plants
- Projects requiring on‑site concrete mixing with fast turnaround
This truck can act as both a concrete mixer and transporter, reducing reliance on separate batching plants and helping complete more work with fewer logistics hassles.
Types
Explore our portable concrete mixers and conveying solutions. We can help you find the solution that best suits your needs

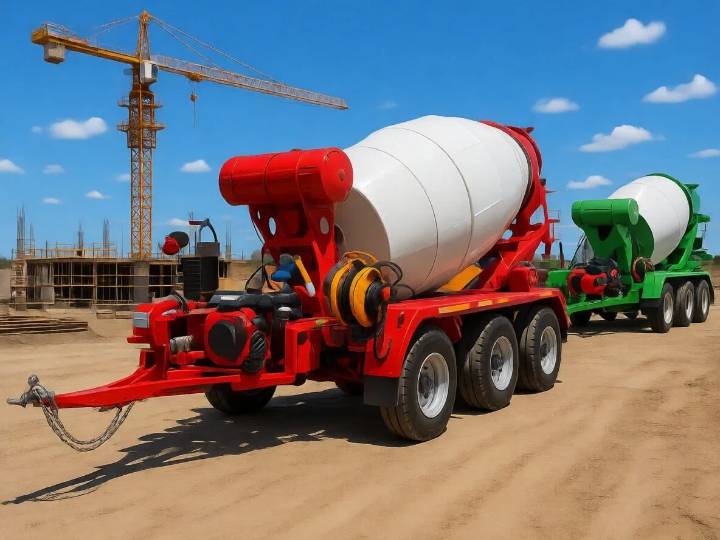

Key Advantages of Our Trailer Concrete Mixer Truck
- Integrated Mixing & Transport: Combines drum mixing and transport functions in one unit
- On‑site Fresh Concrete: Keeps concrete homogenous and ready to discharge at the construction site
- Durability & Reliability: Strong chassis and heavy‑duty components designed for long‑term operation
- Easy Maintenance: Accessible hydraulic and mechanical components for quick servicing
- Customizable Configurations: Drum size and axle setup available based on project needs
Using a mixer truck minimizes waiting time and maximizes productivity on busy job sites, making it a smart investment for contractors
Direct Cost & Labor Savings
| Advantage | Impact |
|---|---|
| Reduced Labor | Automates the mixing process, significantly cutting manual labor requirements and associated costs. |
| Minimized Waste | Precise, on-demand batching and controlled mixing reduce material waste from over-ordering, spillage, or premature setting. |
| Overall Cost-Effectiveness | The combined savings in labor, material, and time contribute directly to a project’s bottom line. |
Typical Applications
The Trailer Concrete Mixer Truck is widely used in multiple construction scenarios:
Residential & Commercial Construction
Ideal for transporting and discharging ready‑mixed concrete directly on site, without needing external batching plants.
Infrastructure & Heavy Projects
Suitable for roads, bridges, and industrial projects where large volumes of concrete must be mixed and delivered efficiently.
Remote Locations
Designed to bring concrete production capability directly to sites with limited access to ready‑mix suppliers.
It ensures concrete remains workable and consistent from batching to discharge.
Working Principle
The concrete mixer tank functions as a mobile, rotating blender. Its core operation relies on the continuous or controlled rotation of a cylindrical drum equipped with internal helical blades. This motion ensures the homogeneous mixing of cement, aggregates, and water during transit, preventing the concrete from segregating or setting prematurely.
Core Mixing Mechanism
The process is driven by a rotating drum, typically tilted, with fixed internal spiral blades. As the drum turns, these blades lift the mixture upward. Gravity then causes it to tumble back down, creating a continuous folding and blending action that achieves a uniform consistency.
Operational Phases
Function is dictated by the direction and speed of the drum’s rotation, managed through three distinct phases:
- Loading & Mixing: The drum rotates in the mixing direction (typically clockwise from the rear). The blade design forces material inward and upward, creating the tumbling action that thoroughly combines all components.
- Transporting: The drum continues to rotate slowly at a designated agitating speed. This maintains the concrete’s plasticity and prevents settling or initial setting during the journey to the site.
- Discharging: At the point of placement, the drum rotation is reversed. The blades then guide the mixed concrete outward and downward, funneling it efficiently through the discharge chute.
Power & Control Systems
Precise control over this process is achieved through integrated systems:
- Hydraulic Drive: The truck’s engine (or a separate auxiliary engine) powers a hydraulic system that provides the high torque needed to rotate the heavy, loaded drum.
- Operator Controls: Levers or an electronic interface in the cab allow the operator to select the direction (mix or discharge) and precisely control the rotational speed to achieve the required concrete consistency.
- Onboard Water System: A dedicated water tank and pump enable the operator to adjust mix consistency on-site and perform thorough internal cleaning after discharge to prevent buildup.
Specification
Below is a sample configuration for the Trailer Concrete Mixer Truck. Actual specs may vary by model and customer customization:
| Feature | Specification |
|---|---|
| Drum Capacity | 6m³ – 14m³ (optional) |
| Mixing Drum Material | High‑strength, wear‑resistant steel |
| Chassis Type | Trailer / Heavy duty frame |
| Suspension | Multi‑leaf spring suspension |
| Tires | 8 / 12 / 16 units optional |
| Mixing Mechanism | Hydraulic mixing system |
| Brake System | Standard / Air brake |
| Custom Options | ABS, high‑capacity water tank, remote control |
We can tailor configurations based on your project requirements.
How To Choose
Do you have a remote construction site?
Are you working in a tight space?
Need to work on your own schedule rather than the ready-mix concrete company’s schedule?
Is one truckload of concrete too much to handle all at once and you want to save on minimum load or wait time fees
Do you need a way to reduce costs to win your next contract?
| When 1.3 yard isn’t enouoh, we’ve also developed 2.0-yard and 2.6-vard towable concrete mixers that are perfect for when 1 yard isn’t enouoh.Larcer cubic yard portable concrete mixers can be towed behind a 1/2 ton or larger pickup truck without a special permit. This towable conrete mixer easly mixes and dispenses quality concrete for large projects, Larger capacity cubic yard trailer mixers can meet the needs of sidewalk repairs, patios, utilities, and more. |
Select the machine based on capacity: SH-1.3yard, SH-2.0yard, SH-2.6yard, SH-4.0yard, SH-5.0yard
Choose the engine that suits you: Honda GX690, RAT0 R999, Changchai single-cylinder diesel engine, Yunnei 4102 four-cylinder diesel engine
FAQs – Real Buyer Questions
Q1: What drum capacity options are available?
A1: We offer a range from 6m³ to 14m³ to suit small to large job sites.
Q2: Can this truck operate in rugged terrain?
A2: Yes, with customizable suspension and tire configurations, it is suitable for most construction environments.
Q3: Does it require special operators?
A3: Basic training is sufficient. We provide operation manuals and can support remote guidance.
Q4: What are delivery options?
A4: We ship worldwide via container or Ro‑Ro, and can assist with logistics to your nearest port.
