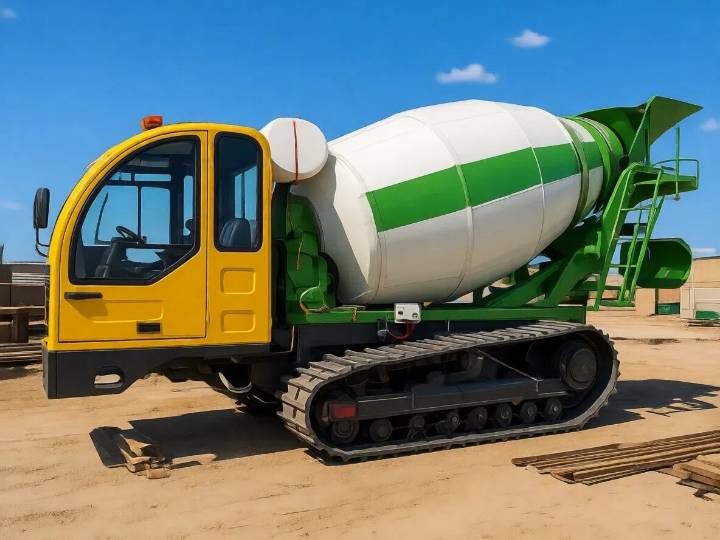

Mixing mechanism: the free mechanism, stirring according to the rotating movement of the mixing drum
Low mobility. The machine is usually fixed in place or pulled at a close distance
Specialized for mixing slurry, mortar and flexible concrete. Combined with trucks to transport concrete over long
Feeding: using an excavator
Discharding: concrete mixture is discharged by reversing the mixing tank
How to choose the model that suits you?
Do you have a remote construction site? Are you working in a tight space? Need to work on your own schedule rather than the ready-mix concrete company’s schedule? Is one truckload of concrete too much to handle all at once and you want to save on minimum load or wait time fees Do you need a way to reduce costs to win your next contract?

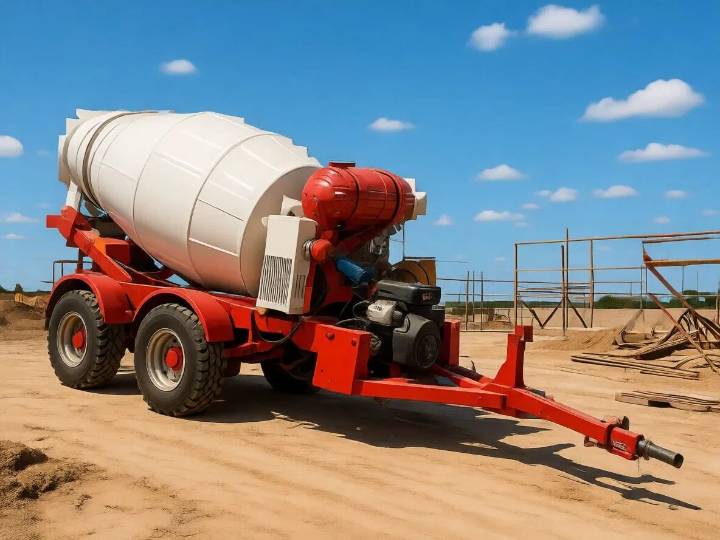

When1 .3 yard isnt enugh, we’ve also developed 2.0-yard and 2.-yard towable concrete mixers that are perfect for when 1 yard isnt enough.Larger cubic yard portable concrete mixers can be towed behind a 1/2 on or larger pickup truck without a special permit. This towable concrete mixer easily mixes and dispenses qullty concrete for large projects. Larger capacity cubic yard trailer mixers can meet the needs of sidewalk repairs, patios, utilities, and more.

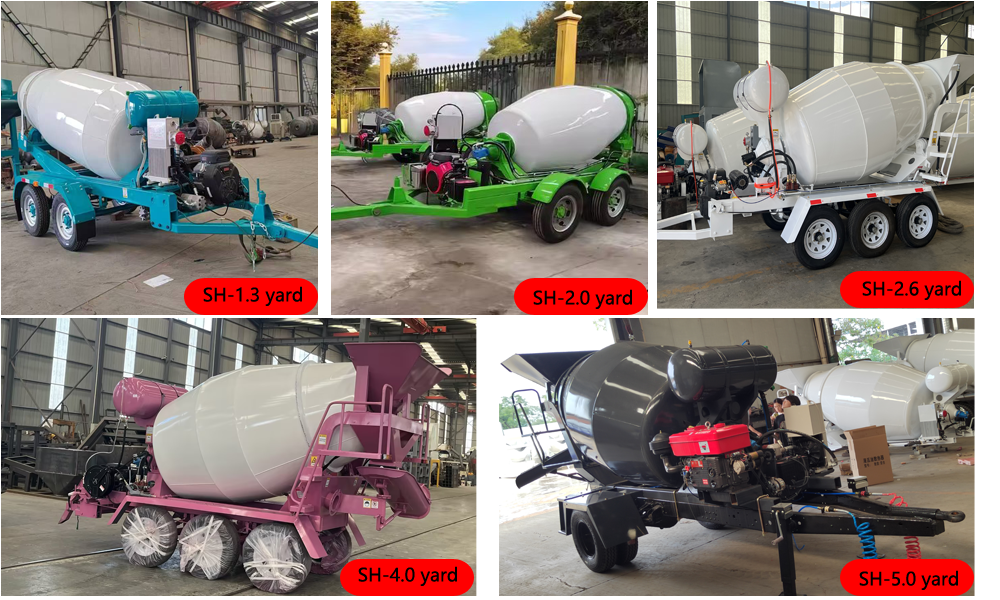

Select the machine based on capacity: SH-1.3yard, SH-2.0yard, SH-2.6yard, SH-4.0yard, SH-5.0yard

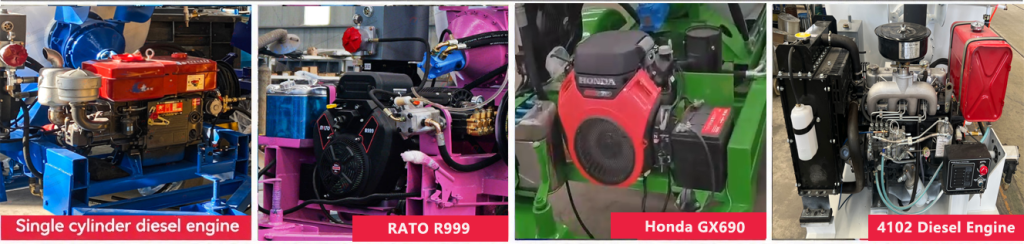

Choose the engine that suits you: Honda GX690, RAT0 R999, Changchai single-cylinder diesel engine, Yunnei 4102 four-cylinder diesel engine
Type
2m³
3m³
4m³
5m³
6m³
7m³
8m³
9m³
10m³
Geometric Volume
3.6m³
5.2m³
6.1m³
8.5m³
9.6m³
10.2m³
11.8m³
13.2m³
15m³
Diameter of Drum
1.6M
1.8M
1.8M
2.05M
2.05M
2.15M
2.2M
2.3M
2.3M
Angle of Inclination
13°
15°
15°
14°
14°
16°
16°
14°
14°
Overall Size
3750*1600*1810
4220*1800*2160
4610*1800*2215
4690*2050*2320
5100*2050*2432
5180*2150*2510
5374*2200*2573
5640*2300*2687
6120*2300*2742
Size of installing base
760*2750
800*3300
800*3600
800*3900
800*4200
800*4200
860*4530
860*4900
860*5300
Rotation Speed
0-10r/min
0-10r/min
0-10r/min
0-10r/min
0-10r/min
0-10r/min
0-10r/min
0-14r/min
0-14r/min
Hydraulic Oil cooler
16L
16L
16L
16L
18L
18L
18L
20L
20L
Total Weight
1200KG
1400KG
1500KG
2280KG
2330KG
2450KG
2670KG
2980KG
3210KG
FAQ
Q:Payment terms, MOQ, warranty, Trade Terms
A:Payment terms: 40% advance payment by T/T, 60% pay by T/T before shipment or L/C at sight. Minimum order quantity: 1 set, FOB, CIF, CNF and DAF.
Q:What certifications do you have?
A:EPC Construction Company Certification, ISO certification, SGS certification, and TÜV.
Q:What’s the shipping cost from China to Our country?
A:We can send to your port by sea or another term you need. Please kindly tell us your nearest port or address with the code. We have reliable shipping agents to ensure safe, convenient, and timely delivery.
Q:what’s the package?
A:All goods are packed by plastic and sponge, steel wire fixed in container and suitable for exporting.
Q:Do you offer Installation & debugging?
A:Yes, we offer the turnkey project, we will dispatch engineers to your location for the installation.
Delivery time: about 10-30 working days after receipt of formal order and 40% deposit. Warranty: 12 months following delivery. We offer online service 24 hours all day long, including whatsapp, Email, etc. You can contact us at any time, if urgently, please call us.
