Description

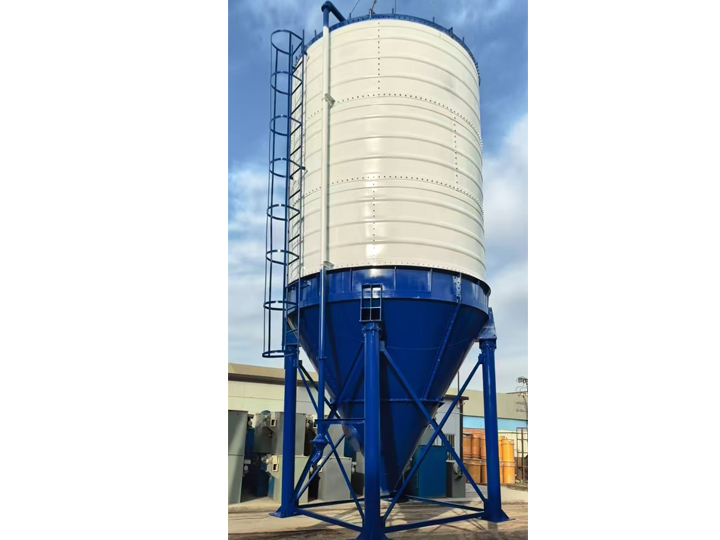

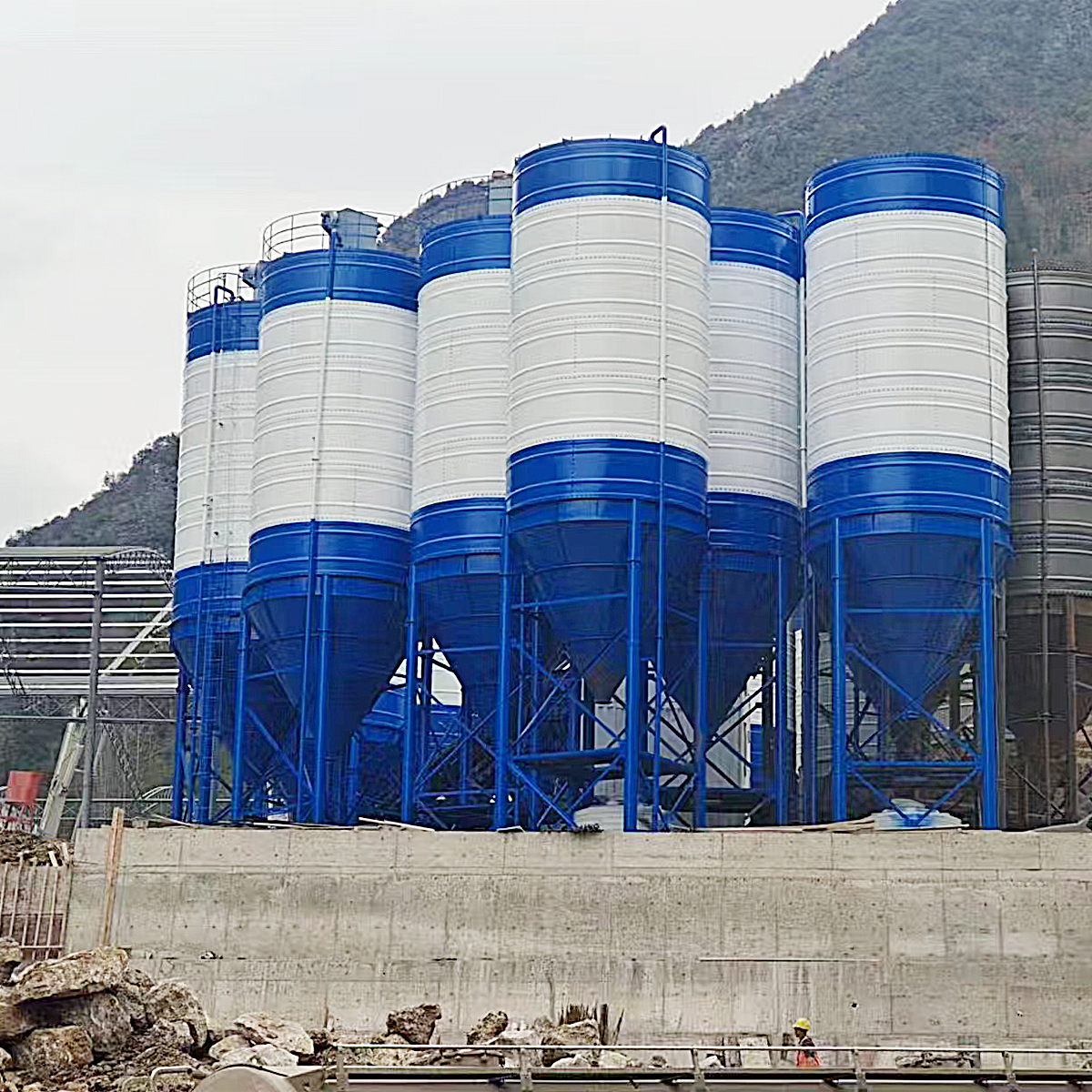

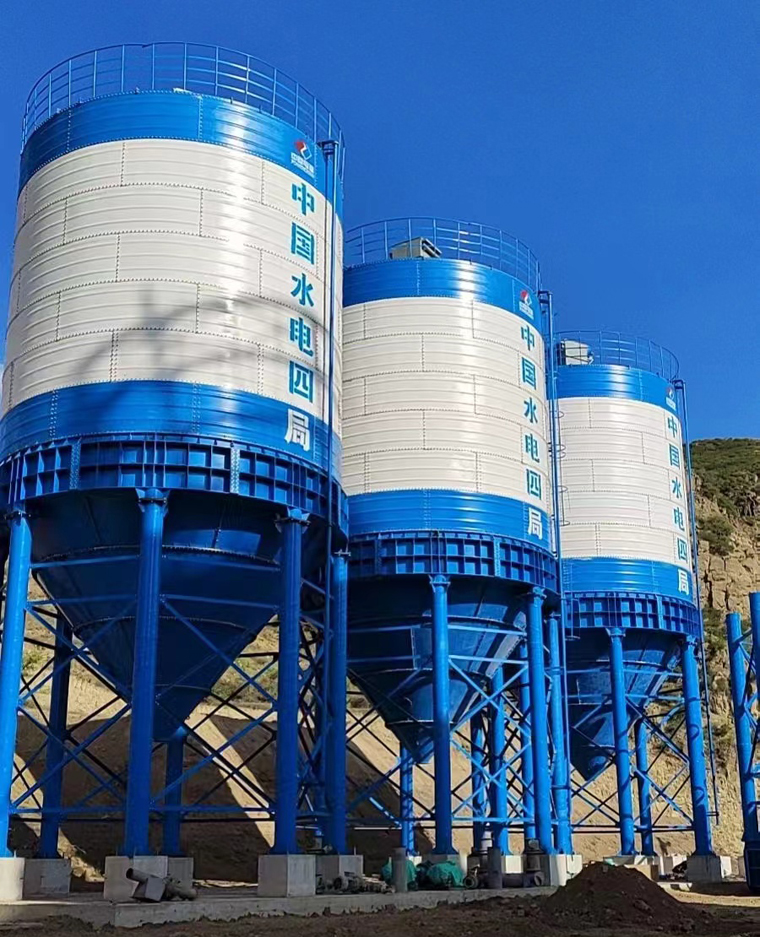

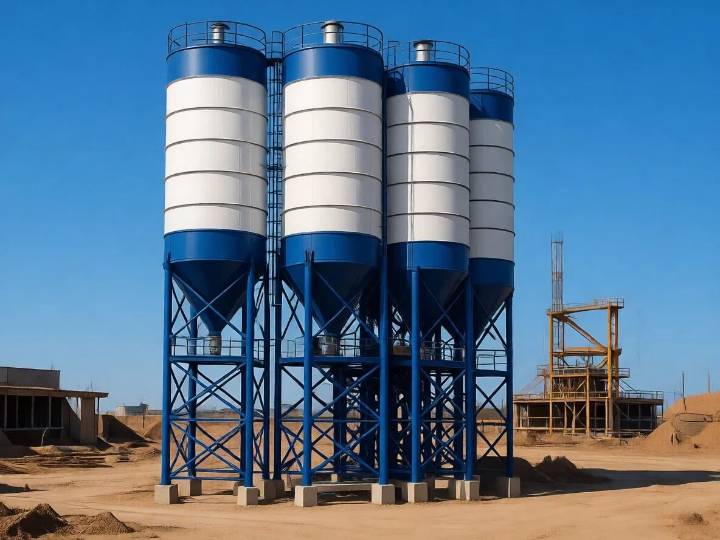

Bolted silo is Modular design and produce. The silo is combined by four main parts: the cover, wall sections, cones and supporting legs. All parts are pressed by special machine and mould especially the wall sections which can be changed every place on the wall.Shipping in Container, installation on site.
Application

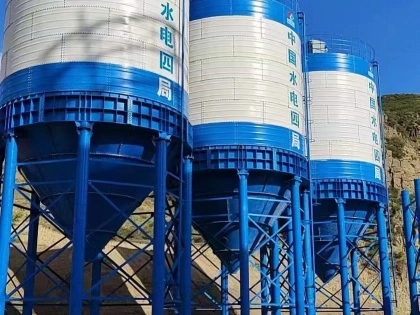

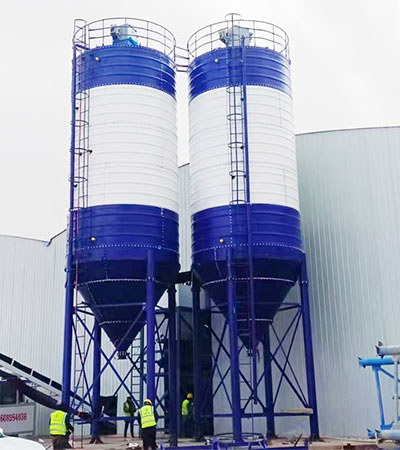

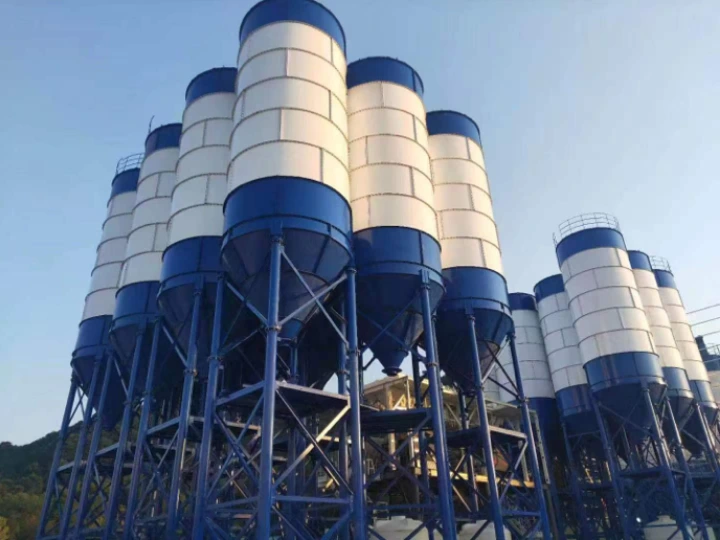

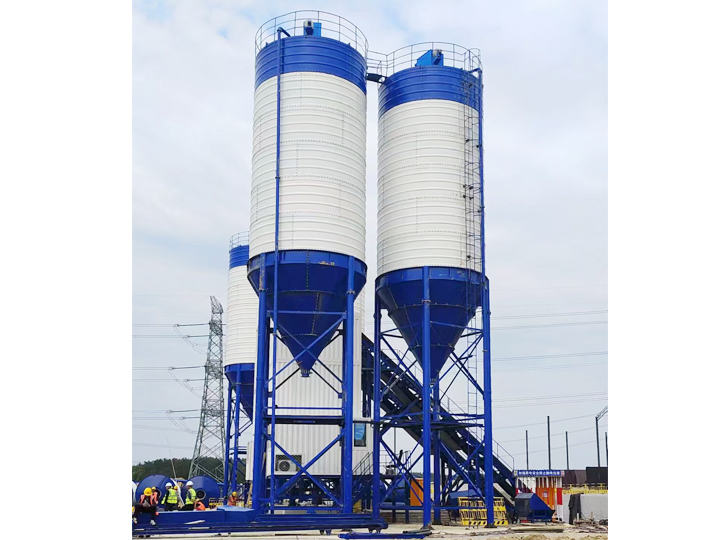

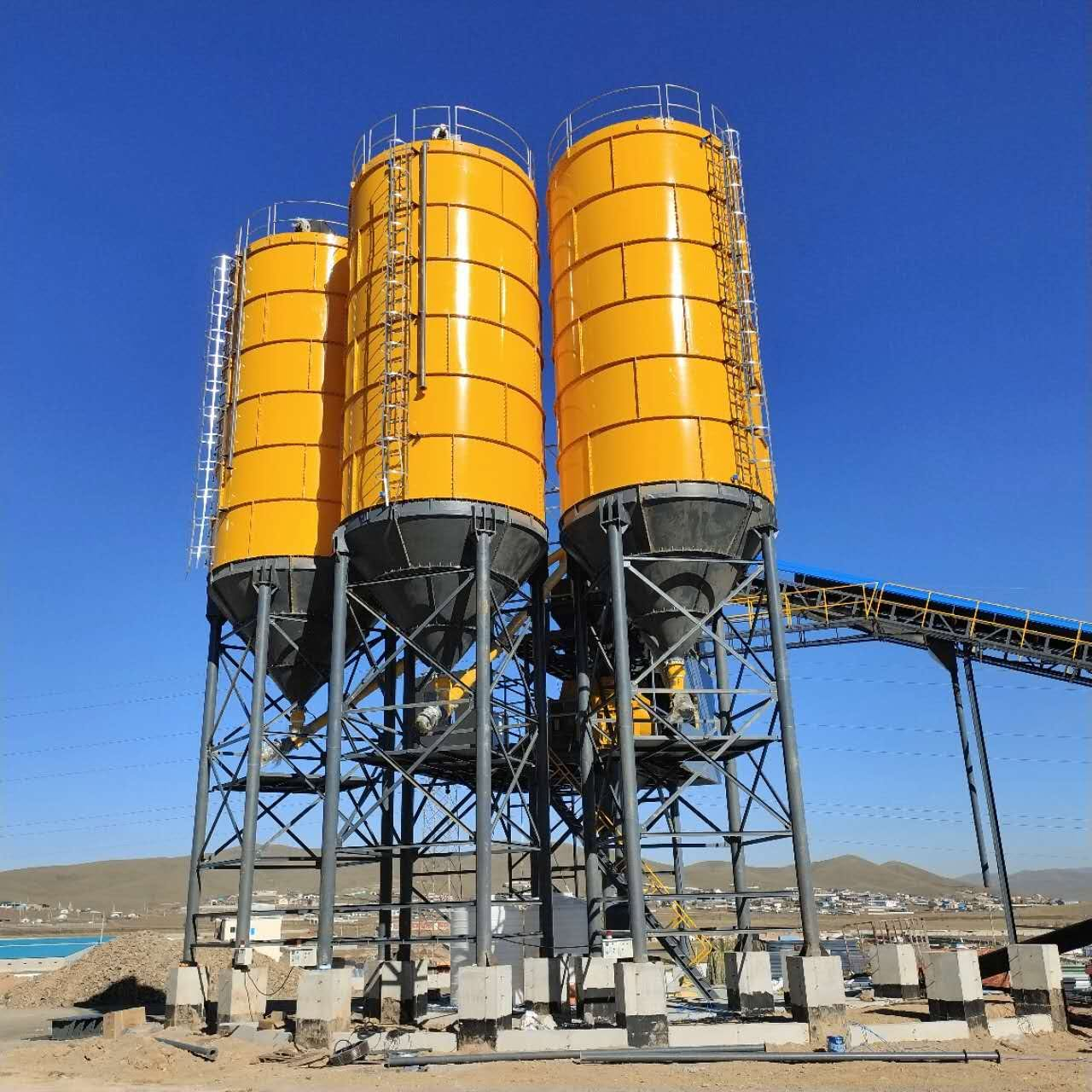

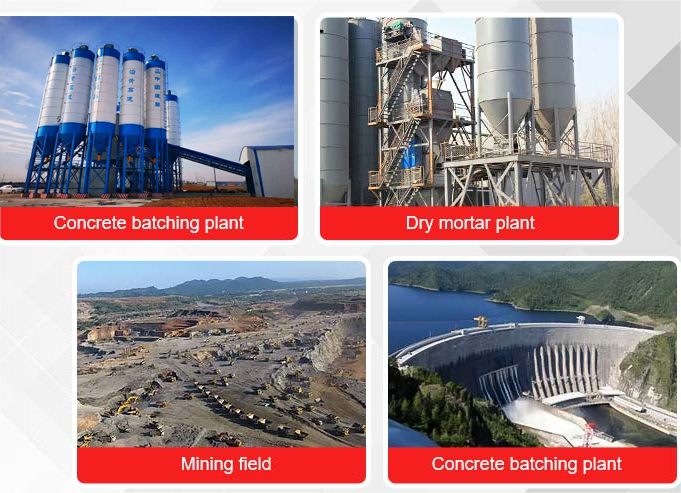

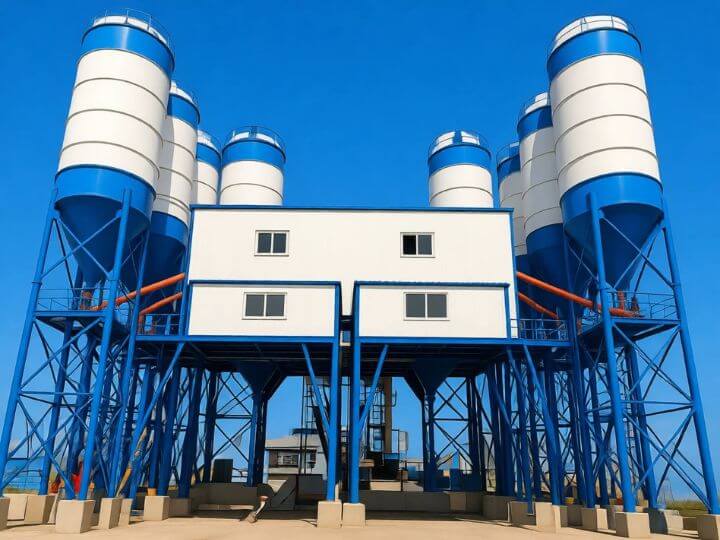

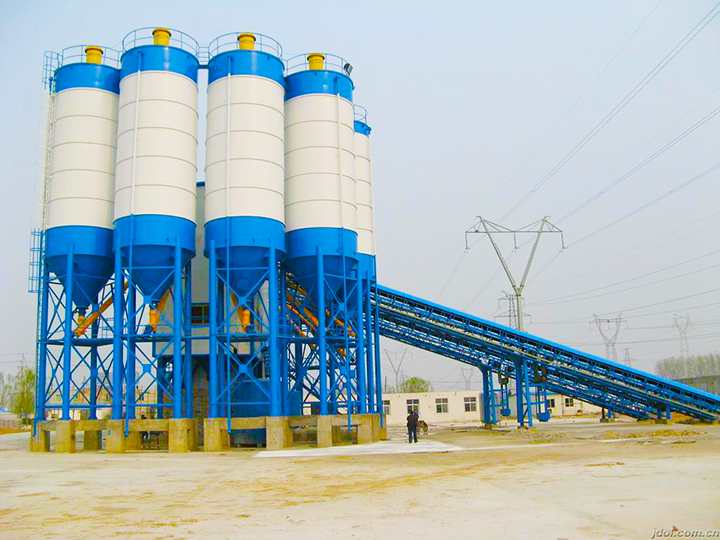

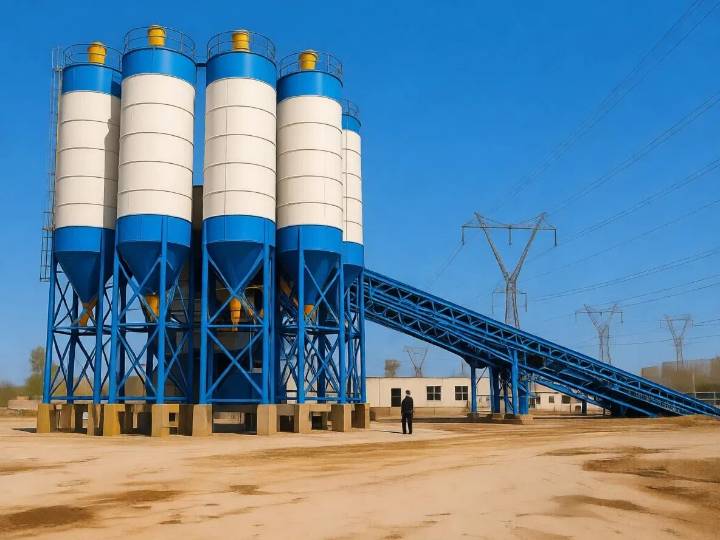

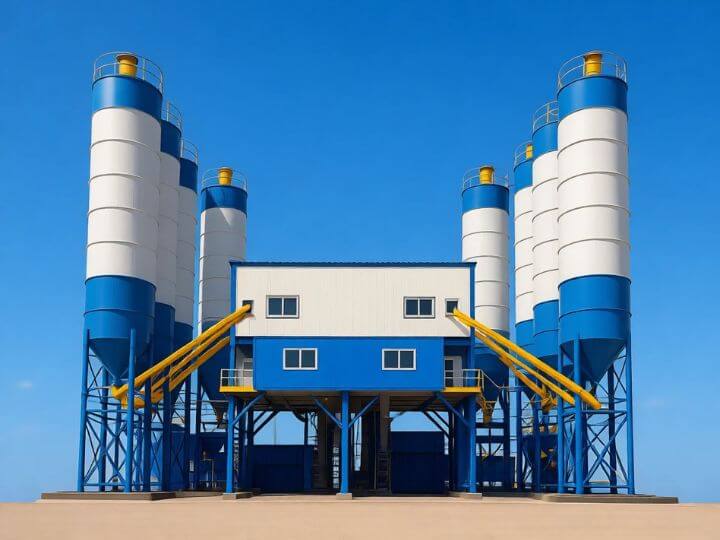

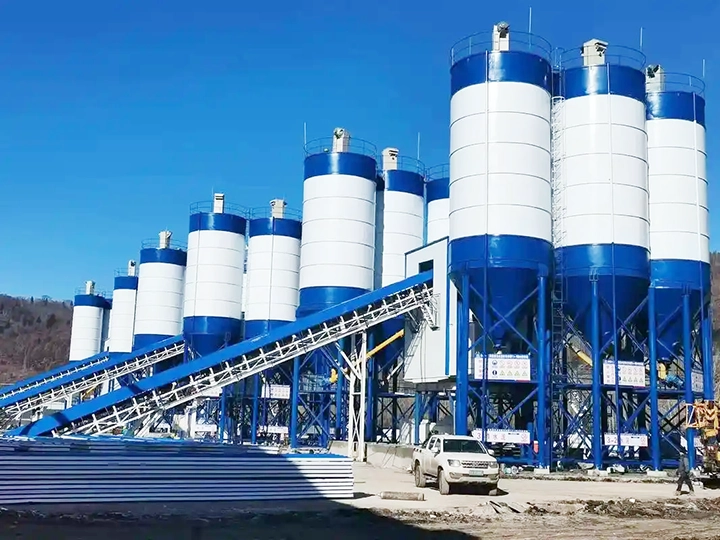

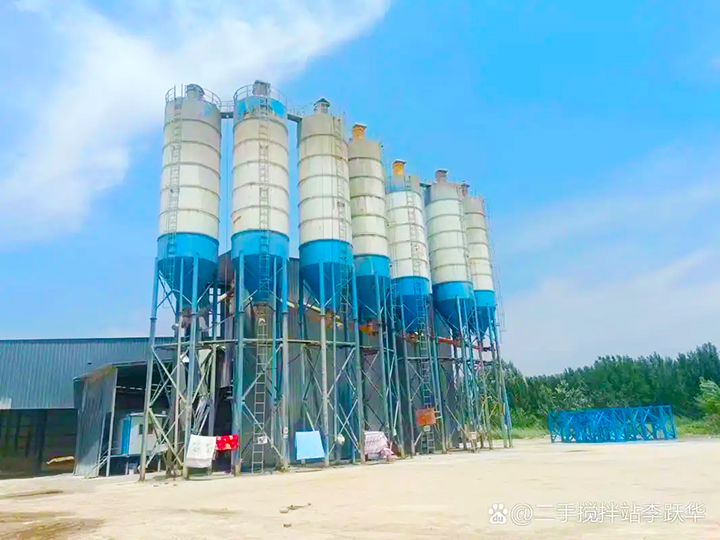

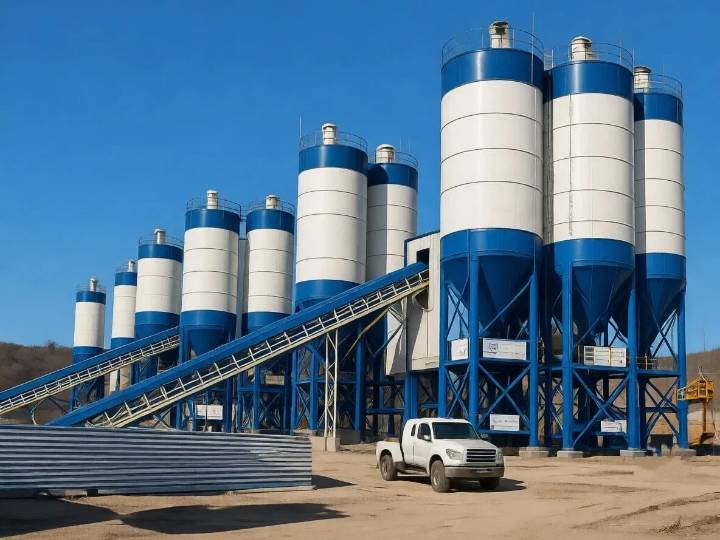

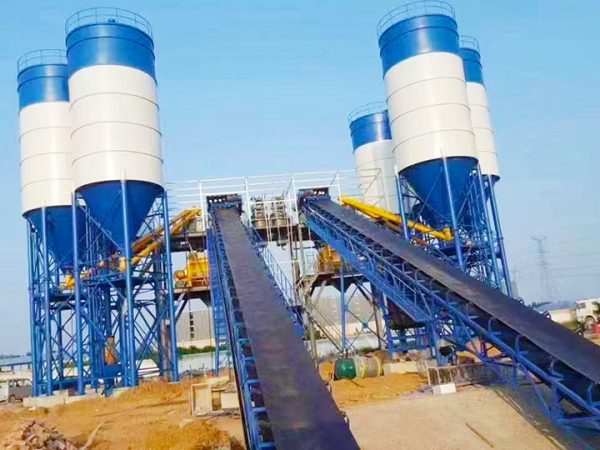

Bolted silo is usually used in concrete batching plant to store bulk cement, and it is also the main part of concrete mixing plant. The accessories of the cement silo are dust remover, discharge valve, level indicator, pressure relief valve, steel structure parts, ladder, guardrail and so on.
Advantages

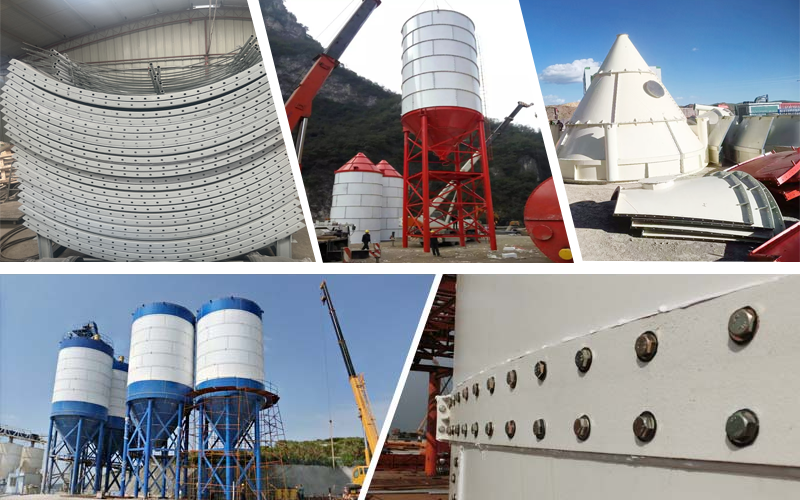

For easy transportation and to save the ocean freight, we design the walls of cement silo into pieces. The pieces only take small space and they are very easy to be assembled together at the construction site.
It is also very easy for the later repair or replacement of any corrosion.
Specification
| Volume | Diameter | Silo body height | Layers of silo body | Pieces each layer | Weight |
| 50t | 3160 mm | 4260 mm | 3 | 4 | 4.5 T |
| 100t | 3160 mm | 8700 mm | 6 | 4 | 6 T |
| 150t | 3160 mm | 13000 mm | 9 | 4 | 9 T |
| 200t | 4000 mm | 11360 mm | 8 | 5 | 12 T |
| 200t | 4500 mm | 8700 mm | 6 | 6 | 12 T |
| 300t | 5300 mm | 8700 mm | 6 | 8 | 17 T |
| 500t | 6800 mm | 7300 mm | 8 | 8 | 21 T |
| 600t | 6800 mm | 8700 mm | 6 | 8 | 28 T |
| 800t | 8000 mm | 10100 mm | 7 | 10 | 43 T |
| 1000t | 8000 mm | 13200 mm | 9 | 10 | 56 T |
