Introduction
10.8-Ton 4WD Backhoe Loader for Construction & Earthmoving

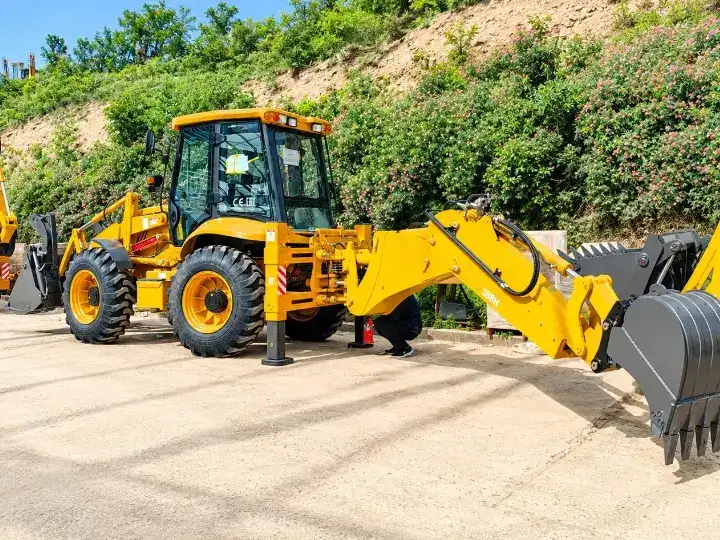

The 388H Backhoe Loader is a versatile 4WD construction machine that combines powerful excavation and loading capabilities in one unit. Designed for demanding construction, roadwork, trenching, material handling and infrastructure projects, the 388H delivers strong performance, excellent mobility and reliable operation.
The SH 388H Backhoe Loader is designed for contractors who need one machine to perform multiple construction tasks.
The front loader can handle soil, sand, gravel and other materials, while the rear backhoe provides efficient digging and trenching performance.
With 4WD, four-wheel steering and crab steering capability, the 388H provides enhanced maneuverability on construction sites and in confined working areas.
Whether you need to load trucks, dig trenches, move materials, prepare construction sites or perform roadwork, the 388H provides a practical solution for multiple applications.
Key Features
1. Powerful Diesel Engine
The 388H is equipped with a Perkins / Weichai / Yuchai diesel engine, providing 70-82 kW rated power and strong torque for demanding construction operations.
2. 4WD for Better Traction
The 4-wheel-drive system provides reliable traction when working on uneven terrain, construction sites, gravel roads and other challenging surfaces.
3. Four-Wheel Steering
The 388H supports four-wheel steering and crab steering, giving operators greater flexibility when maneuvering in narrow or confined areas.

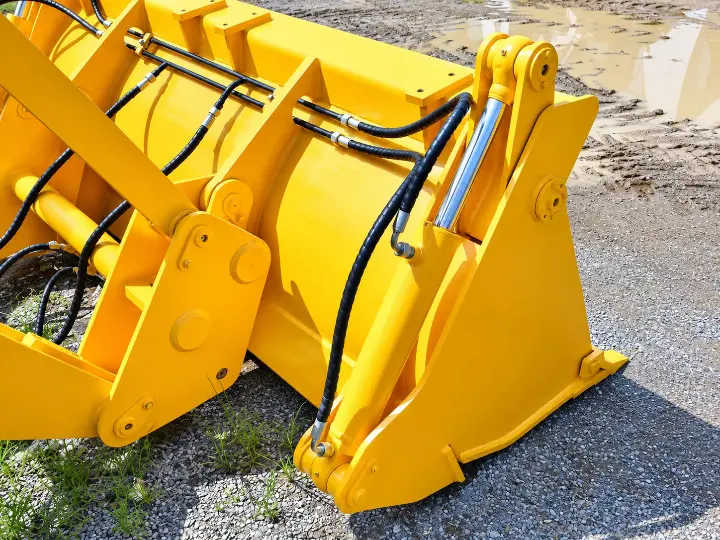

4. Large 1.2 m³ Loader Bucket
The front loader is equipped with a 1.2 m³ bucket and a rated lifting capacity of 2,500 kg, making the machine suitable for loading and material-handling operations.
5. Powerful Excavation Performance
The rear backhoe has a 0.3 m³ bucket, 50 kN digging force and a maximum digging depth of approximately 5045 mm.
6. Heavy-Duty Axles
The 388H uses heavy-duty axles designed for backhoe loader applications, helping improve durability and stability during demanding operations. The model is also available with Carraro axle configurations.
Specifications
| Overall Size Parameters | Overall Size Parameters | ||
|---|---|---|---|
| Operating Weight | 10,800 kg | Wheelbase | 2,293 ± 10 mm |
| Overall Dimensions (L × W × H) | 6,554 × 2,653 × 3,660 mm | Wheel Tread | 2,050 ± 10 mm |
| Ground Clearance | 475 mm | ||
| Performance | |||
| Loader Bucket Capacity | 1.2 m³ | Backhoe Bucket Capacity | 0.3 m³ |
| Loader Breakout Force | 47 kN | Backhoe Digging Force | 49.8 kN |
| Loader Rated Lifting Capacity | 2,500 kg | Backhoe Swing Angle | 180° |
| Bucket Unloading Height | 3,153 mm | Backhoe Unloading Height | 4,285 / 4,922 mm |
| Bucket Unloading Reach | 989 ± 20 mm | Max. Digging Depth | 4,120 / 5,045 mm |
| Digging Depth | 301 mm | Max. Traction Force | 86 kN |
| Engine | |||
| Engine Model | Perkins / Weichai / Yuchai | Engine Manufacturer | Perkins / Weichai / Yuchai |
| Engine Model Options | WP3.6NG10L1680 / WP3.6NG10L1680 / YC4A105Z-T20 / WP4G95E221 | Engine Type | Turbocharged Diesel Engine |
| Intake System | Turbocharged | Turbocharger | Turbocharged |
| Displacement | 3.6 L / 3.6 L / 4.8 L / 4.5 L | Cylinder Bore | 98 / 100 / 108 / 105 mm |
| Cylinder Stroke | 120 / 114 / 132 / 130 mm | Rated Speed | 2,400 / 2,200 r/min |
| Rated Power | 74.5 kW / 82 kW / 74 kW / 70 kW | Max. Torque | 450 N·m / 500 N·m / 400 N·m / 380 N·m |
| Maximum Torque Speed | 1,400–1,700 r/min | ||
| Steering System | |||
| Steering Gear Model | BZZ-250 | Hydraulic Steering | Yes |
| Steering Pump Displacement | 80 ml/r | Pump Model | HP3V80 |
| Steering Angle | ±36° | Min. Turning Radius | 6,950 mm |
| Driving Axle | |||
| Axle Model | 26.32–190/26.43M–1900 | Axle Manufacturer | Italcarro |
| Rated Front Axle Load | 25 T | Rated Rear Axle Load | 18.5 T |
| Transmission System | |||
| Gearbox | Hydraulic Synchronized Gearshift | Transmission Model | SPS 4WD 4WS |
| Gears | 4 Forward / 4 Reverse | Cooling Mode | Forced Circulation |
| Tyres | |||
| Front / Rear Tyre Model | 16.9–28 | Front Tyre Pressure | 0.35 MPa |
| Rear Tyre Pressure | 0.35 MPa | Max. Travel Speed | 38 km/h |
| Brake System | |||
| Service Brake | Wet Internal and External, Regulated Self-Balance Type | Parking Brake | Manual Mechanical Brake |
| System Pressure | |||
| Loader Hydraulic System | 20 MPa | Excavation Hydraulic System | 20 MPa |
| Steering Hydraulic System | 14 MPa | ||
Specifications can be customized according to project requirements. Please contact us for the detailed technical specification sheet.
One Machine for Digging, Loading & Material Handling
The 388H combines the functions of a wheel loader and excavator in one machine.
Excavation
The rear backhoe is suitable for:
- Foundation excavation
- Trenching
- Drainage work
- Pipeline installation
- Utility construction
- Site preparation
Loading
The front loader can be used for:
- Loading trucks
- Moving soil
- Handling sand and gravel
- Loading construction materials
- Backfilling
Material Handling
The 388H can move and handle materials efficiently around construction sites, reducing the need for multiple machines.
Applications
- Road Construction
Suitable for road maintenance, drainage construction, roadside excavation and material handling.
2. Building Construction
Ideal for foundation excavation, trenching, loading and backfilling operations.
3. Municipal Engineering
Useful for pipeline installation, utility projects, drainage systems and urban construction.
4. Agriculture
The 388H can be used for farm road construction, irrigation channels, land preparation and material handling.
5.Infrastructure Projects
Suitable for general earthmoving and supporting infrastructure construction projects.paration and material handling.
4WD + Four-Wheel Steering for Better Maneuverability
One of the important advantages of the 388H is its steering configuration.
The machine can use four-wheel steering and crab steering modes, helping improve maneuverability when operating in confined construction areas.
This is especially useful for:
- Narrow construction sites
- Urban projects
- Roadside work
- Material handling areas
- Jobs requiring frequent turning
Why Choose 388H Backhoe Loader?
1. Versatile 2-in-1 Machine
Digging and loading functions are integrated into one machine, helping reduce the need for separate equipment.
2. Strong Loading Capacity
The 1.2 m³ loader bucket and 2,500 kg rated lifting capacity support efficient material handling.
3. Deep Excavation
The rear backhoe provides up to 5045 mm digging depth for trenching and excavation work.
4. High Mobility
4WD and four-wheel steering provide improved mobility and maneuverability across different jobsite conditions.
5. Reliable Construction
The reinforced frame, heavy-duty axles and powerful diesel engine are designed for demanding construction applications.

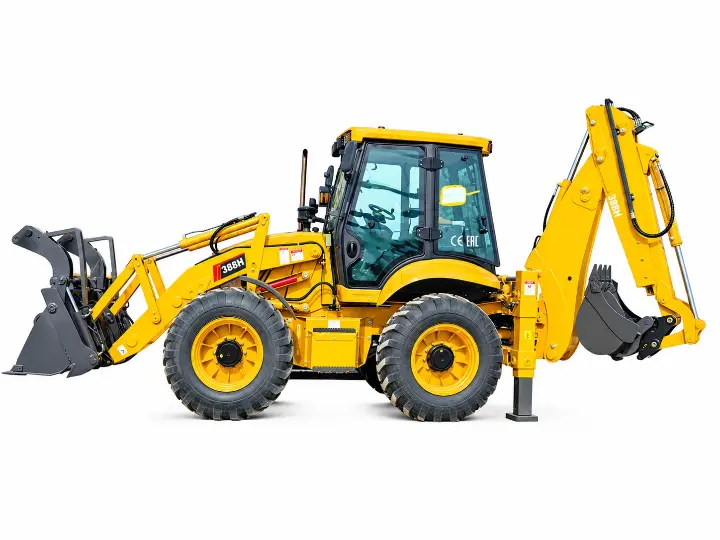

388H Backhoe Loader for Sale
Looking for a 388H Backhoe Loader for your construction project?
We can provide:
- 388H technical specifications
- Factory price
- Engine options
- Optional attachments
- Spare parts
- Shipping solutions
- Delivery information
- Warranty and after-sales support
Tell us your destination country and required quantity to get a quotation.
FAQ
- What is the operating weight of the 388H Backhoe Loader?
The standard 388H has an operating weight of approximately 10,800 kg.
2. What is the engine power of the 388H?
The 388H uses a Perkins / Weichai / Yuchai diesel engine, providing 70-82 kW rated power.
3. What is the bucket capacity?
The front loader bucket has a capacity of 1.2 m³, while the rear backhoe bucket has a capacity of 0.3 m³.
4.How deep can the 388H dig?
The standard 388H has a maximum backhoe digging depth of approximately 5045 mm.
5. Is the 388H a 4WD backhoe loader?
Yes. The 388H is a 4WD backhoe loader and supports four-wheel steering and crab steering configurations.
6. What can a 388H Backhoe Loader be used for?
It can be used for excavation, trenching, loading, road construction, drainage work, material handling, site preparation and other earthmoving applications.
